INSTALLATION AND CONNECTIONS
n Power supply connection
Make sure the repeater’s power is turned OFF when
connecting a DC power cable.
CAUTION: Voltages greater than 16 V DC will dam-
age the repeater. Check the source voltage before
connecting the power cable.
n Mounting the repeater
D Using the supplied handle
The supplied handles are available for mounting the
repeater into a 19 inch rack. The handles can be in-
stalled to the repeater’s front panel.

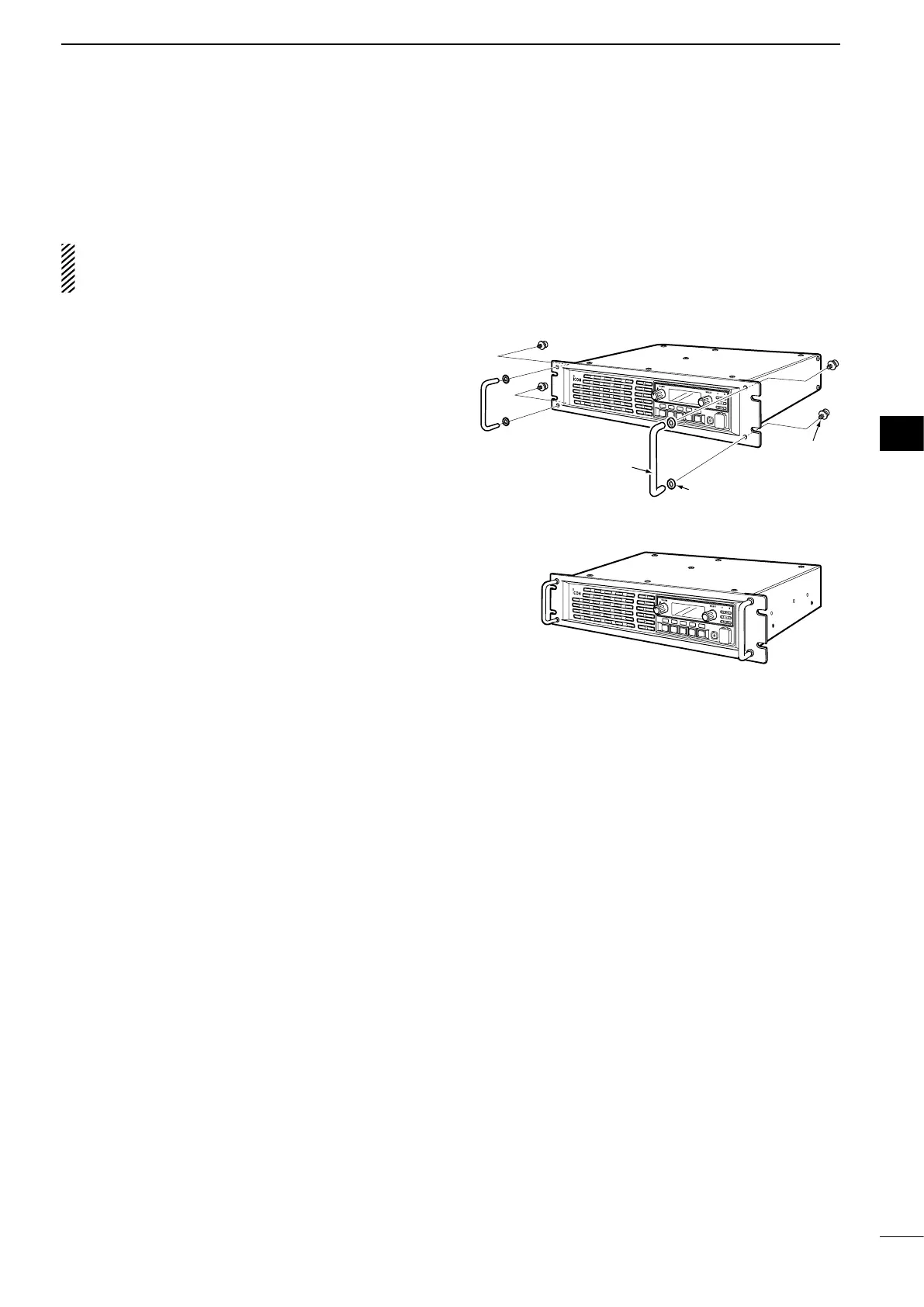

q Attach the supplied handles to both sides of the re-
peater’s front panel with the spacers, then tighten
the screws as below.
P
0
P
1
P
2
P
3
P
4
Handle
Spacer
Screw
w The completed installation should look like as
below.
