5

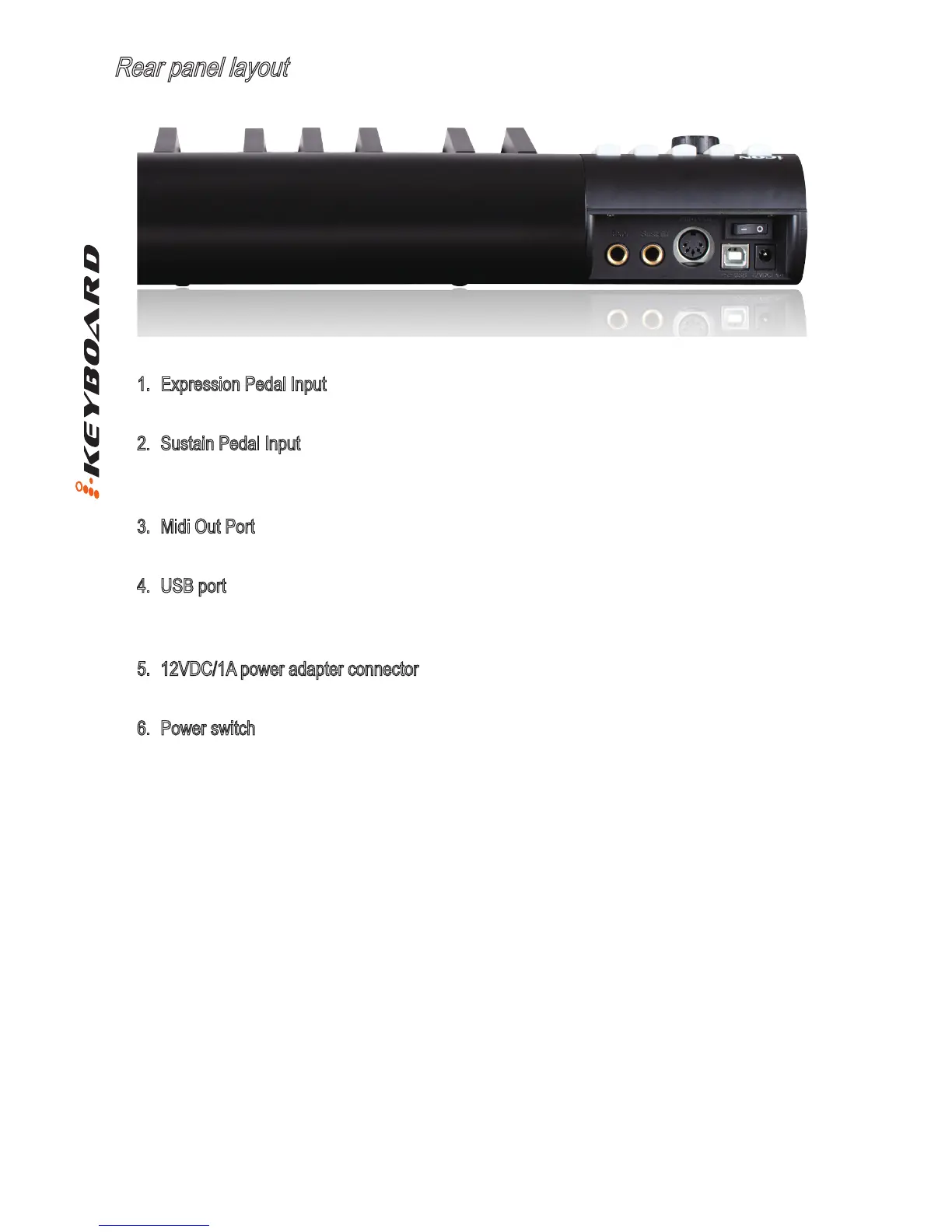

Rear panel layout
1. Expression Pedal Input
A standard expression pedal can be connected via this 1/4” input.
2. Sustain Pedal Input
This 1/4” jack can be used to connect a momentary footswitch, like a piano's sustain pedal.
(ICON SPD-01)
3. Midi Out Port
Use the MIDI Out terminal to connect an external synthesizer or sound module.
4. USB port
Functions as a MIDI port to your notebook (or computer) and compatible software. Also
provides power to your iKeyboard.
5. 12VDC/1A power adapter connector
Connect your 12VDC/1A power adapter (optional) here.
6. Power switch
Power switch for your iKeyboard.
