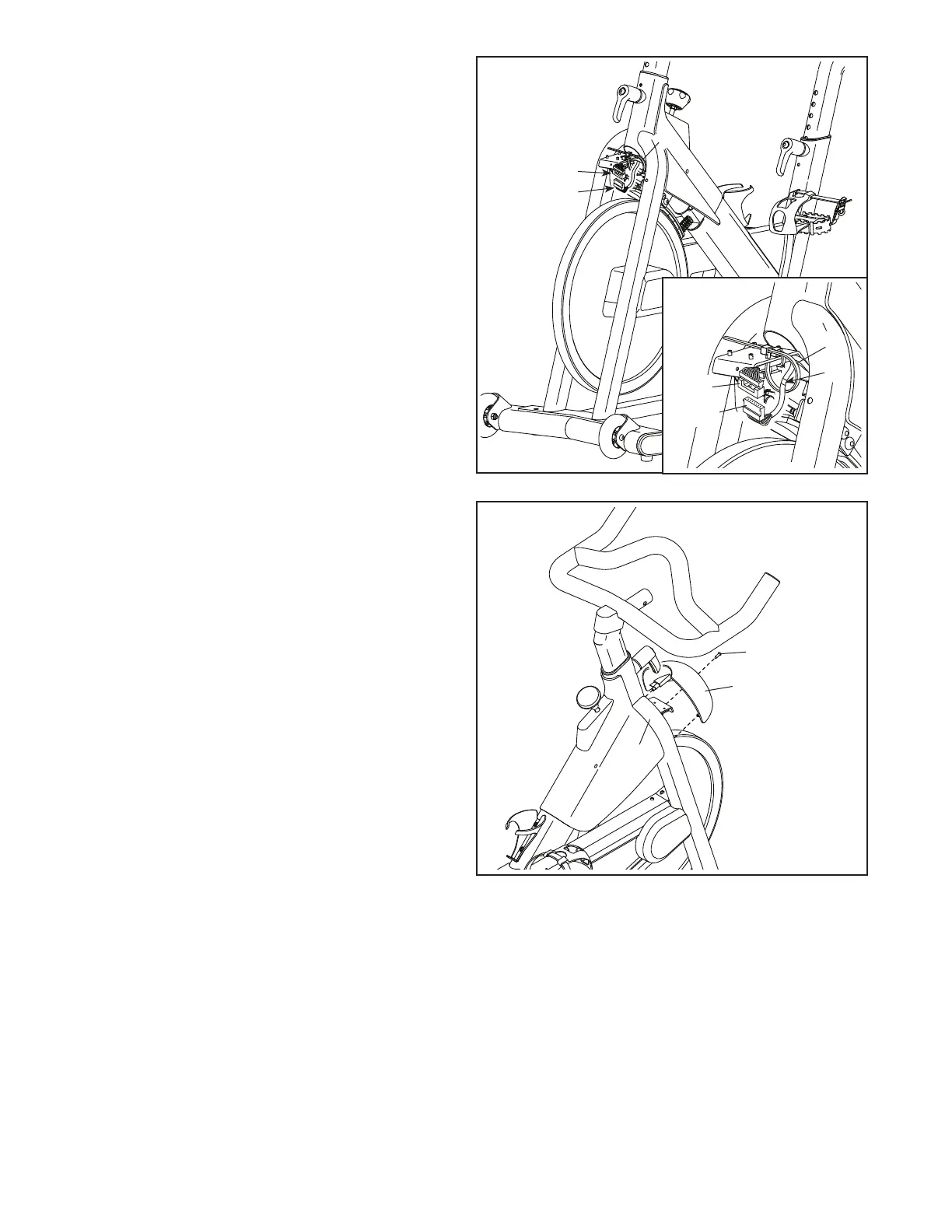

9. Tip: Avoid pinching the wires. Press the Motor
Cover (38) onto the Frame (1), and attach it with
an M4 x 20mm Screw (87).
87
38
1
Avoid
pinching
the wires
8. See the inset drawing. Connect the connector
on the Handlebar Wire (90) to the connector on
the Frame Wire (82).
Next, tighten the zip tie (C) around the indicated
mark (D) on the Handlebar Wire (90). Then, cut
off the excess zip tie.
8
90
82
C
C
D
90
82
