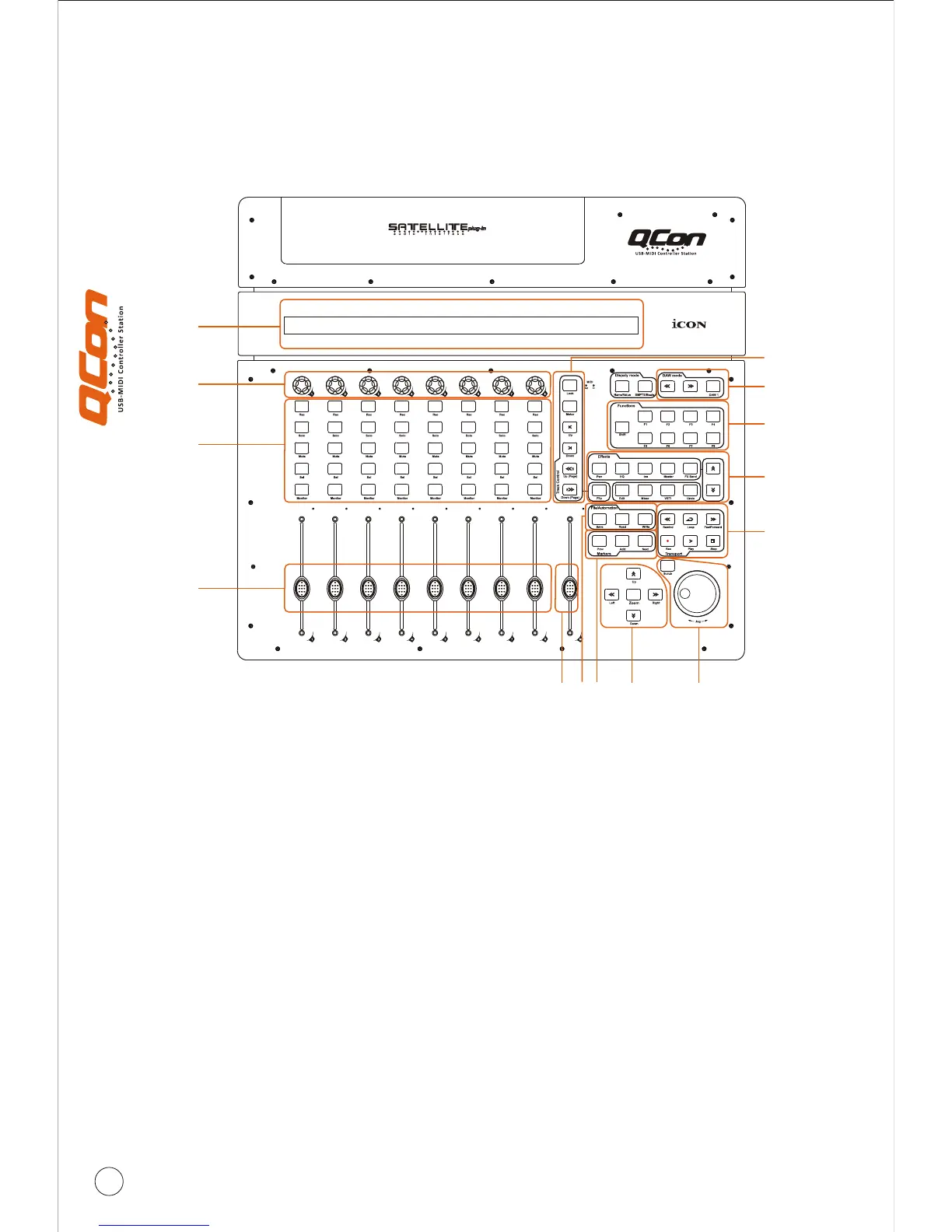

Top Panel Layout
3
The two-line backlit LCD display shows the parameter values as you adjust them and also
provides feedback about channel selections, operating modes, and more.
1. LCD backlit display
2. Channel faders
3. Master fader
4. Knobs
Note: Function operates slightly difference between DAWs. Please refer to your DAW
manual for each function and overlap the provided labeling template according to your
current using DAW. The following description is based on the functions that operate in
Steinberg Cubase.
The eight 100mm motorized faders are generally used for controlling the track volume of
your DAW. Depending on your DAW, you may use the “Flip” button to switch the function
of these faders to change other settings. They are all touch sensitive to allow override
automation the moment you touch a fader. Also, they are motorized; they will
automatically move to reflect the current level of the selected channels in your DAW
application. Any automation recorded in a project will be reflected by the fader positions.
Any parameter adjustments made with these faders will be displayed directly above on
the LCD display.
This 100mm motorized fader operates the same as the other 8 faders. It controls your
DAW software's master channel fader. Any parameter adjustments made with this fader
will be displayed directly above on the LCD display.
The eight rotary encoder knobs are generally used for controlling the track pan position,
aux send levels and EQ of your DAW. You may also preset them to adjust specific
parameters within plug-ins and virtual instruments. Any parameter adjustments made
with these encoder knobs will be displayed directly above on the LCD display.
1
4
5a
2
3 5c 5d
5e
6a
6c
7
5f
5b
6b
