Circulation Air Blower Data - *9MPV
Cooling Airflow Settings

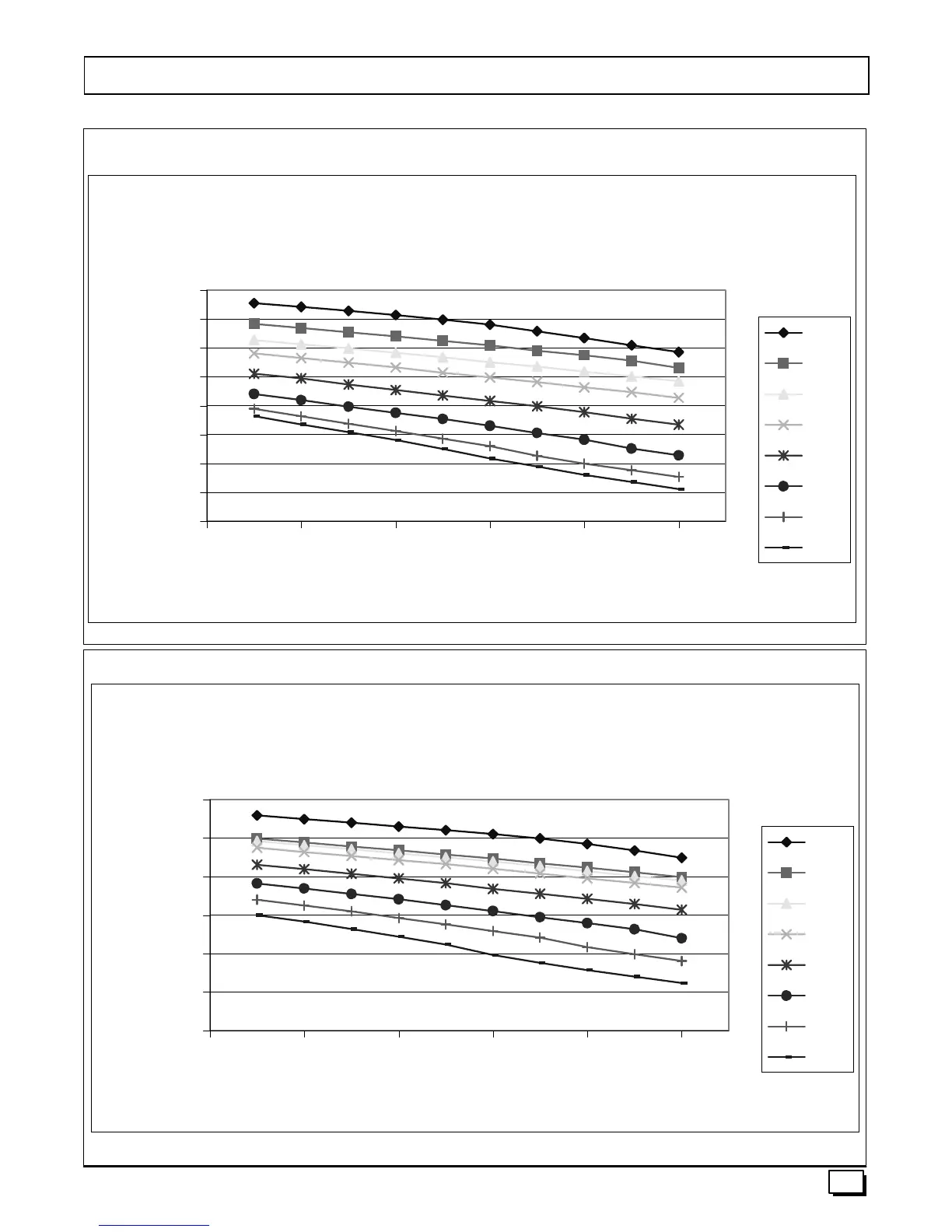

*9MPV100J20C COOLING
(CFM VS. EXTERNAL STATIC PRESSURE)
0
300
600
900
1200
1500
1800
2100
2400
0 0.2 0.4 0.6 0.8 1
ESP" W.C
CFM
000
001
010
011
100
101
110
111
Figure 3
*9MPV125L20C COOLING
(CFM VS. EXTERNAL STATIC PRESSURE)
0
400
800
1200
1600
2000
2400
0 0.2 0.4 0.6 0.8 1
ESP" W.C
CFM
000
001
010
011
100
101
110
111
Figure 4
