3. Remove the knockout for the condensate trap in the
side of the casing.
4. Install the drain trap grommet in the casing, if required for
directvent applications. If necessary, remove the trap,
install the grommet and reinstall the trap.
5. Remove the preformed rubber drain tube and two
spring clamps from the loose parts bag.
6. Connect the full or modified elbow and/or grommet to the
outlet of the condensate trap with one spring clamp.
Avoid misalignment of the drain pipe which may cause
kinks in the elbow or grommet.
7. The remaining drain line can be constructed from field
supplied 1/2in. CPVC or 3/4in. PVC pipe, in
compliance with local building codes. A factorysupplied
1/2in. CPVC to 3/4in. PVC adapter is supplied in the
loose parts bag for use as required.
8. Install the adapter or connect the 1/2in. CPVC pipe by
sliding a spring clamp over the open end of the elbow or
grommet on the outside the furnace casing.
9. Open the spring clamp and insert the long end of the
adapter or the 1/2in. CPVC pipe into the outlet stub on
the drain tube.
10. Connect additional condensate piping to a
codeapproved drain, or to a condensate pump
approved for use with acidic furnace condensate and
compatible with mineral and vegetable oils, such as
canola oil.
Allow at least 1/4-in. per foot (20 mm per meter) of slope down
and away from the furnace in horizontal sections of drain line.

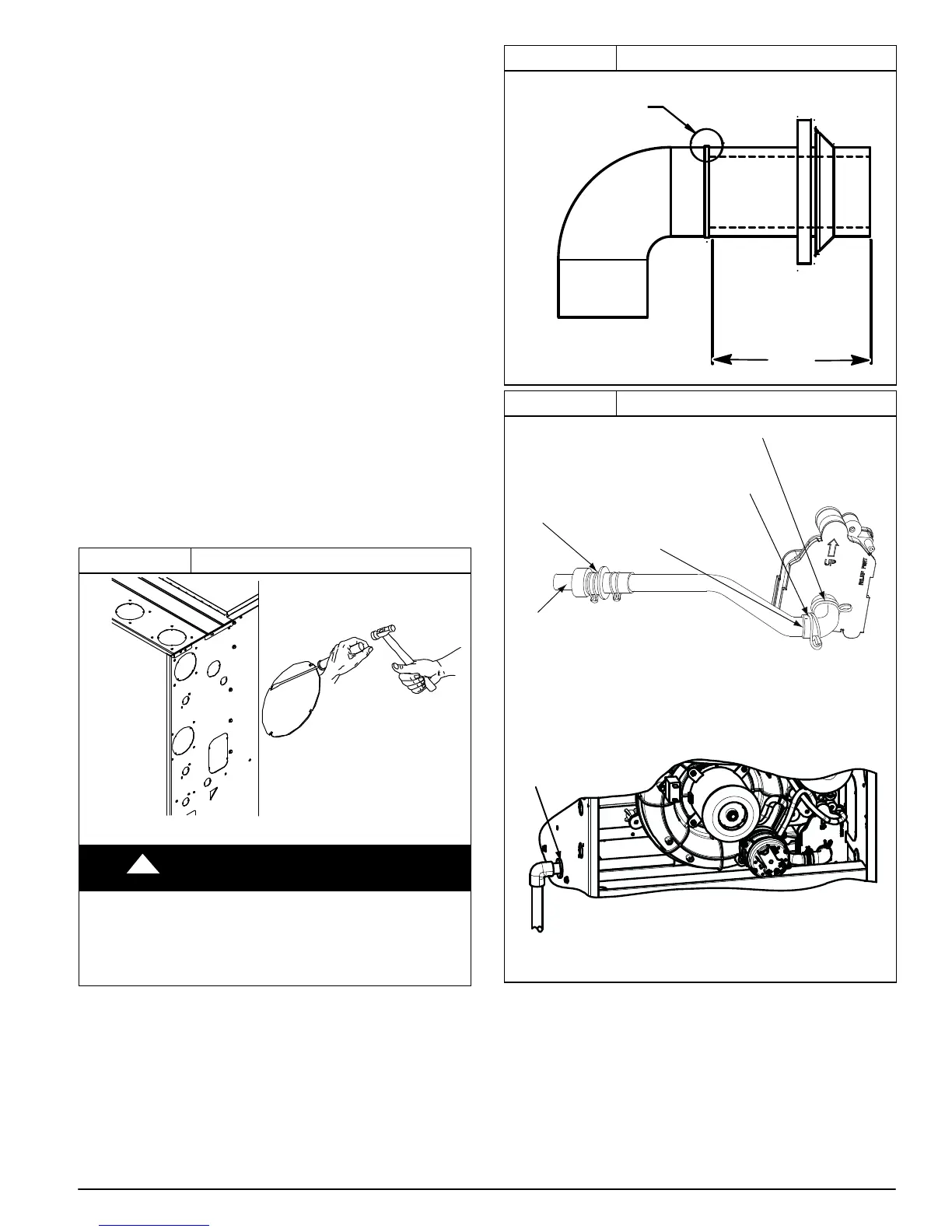

Figure 13 Knockout Removal
L12F019
! CAUTION
CUT HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care
and wear appropriate protective clothing, safety glasses and
gloves when handling parts, and servicing furnaces.
Figure 14 Modify Rubber Drain Elbow
Cut line for left side condensate drain.
Do not discard parts after cutting.
13/8 in
(35 mm)
L11F089
Figure 15 Drain Trap Connection and Routing
s
TRAP, DRAIN ELBOW WITH DISCHARGE PIPE
Attach elbow to condensate trap
Cut formed end off
condensate drain
elbow
Connect short end
of “Z” pipe to modified
drain elbow
Factory supplied 1/2in. CPVC to
3/4in. PVC adapter
LEFT SIDE DRAIN ROUTED BEHIND INDUCER
Formed end of grommet
Open spring clamp. Insert
1/2in. to 3/4in. CPVC to
PVC adapter or 1/2in.
CPVC pipe
Modified drain elbow connect to
condensate trap and “Z” pipe
Formed end of
grommet
NOTE: Remove Inducer Housing for easier access, if desired.
L12F015
