ICP F9MAE - Page 38

38 440 01 4300 00
Specifications subject to change without notice.

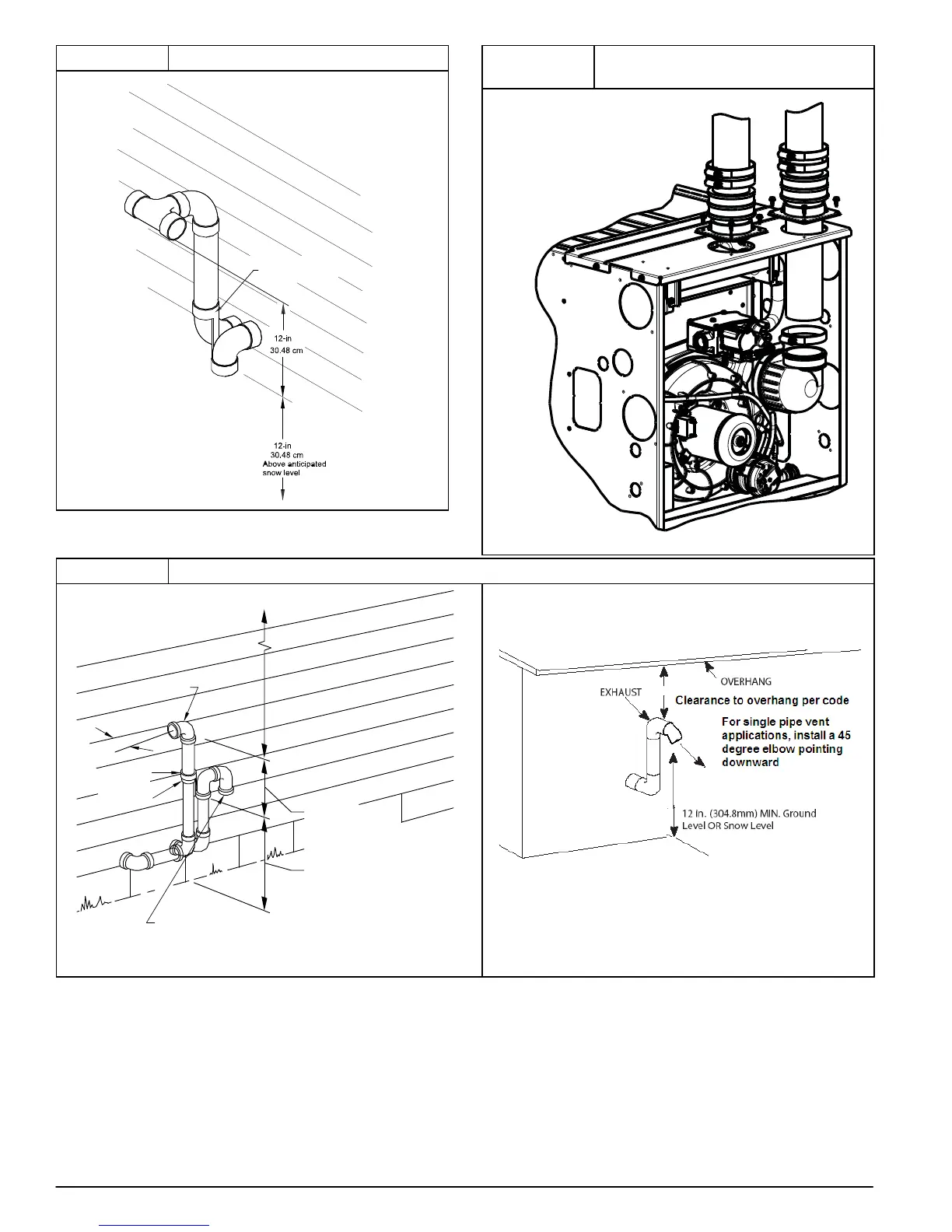

Figure 44 Tee at Termination Outlet
L12F030
OPTIONAL TERMINATION
BRACKET FOR 2ïPIPE
TERMINATIONS
Figure 45
Sample Inlet Air Pipe Connection
for Polypropylene Venting Systems
EXAMPLE FOR
UPFLOW INSTALLATIONS.
MAY BE APPLIED TO
OTHER CONFIGURATIONS.
A12220
Figure 46 Vent Terminations
MAINTAIN 12 IN.
CLEARANCE
ABOVE HIGHEST
ANTICIPATED SNOW
LEVEL OR GRADE,
WHICHEVER IS
GREATER.
VENT
12 IN. SEPARATION
BETWEEN BOTTOM OF
COMBUSTION AIR AND
BOTTOM OF VENT
OVERHANG OR ROOF
COMBUSTIONïAIR
(ELBOW PARALLEL
TO WALL)
22.5
to
45
o
off wall
Angle
o
OPTIONAL
BRACKET
COUPLING
L12F031
