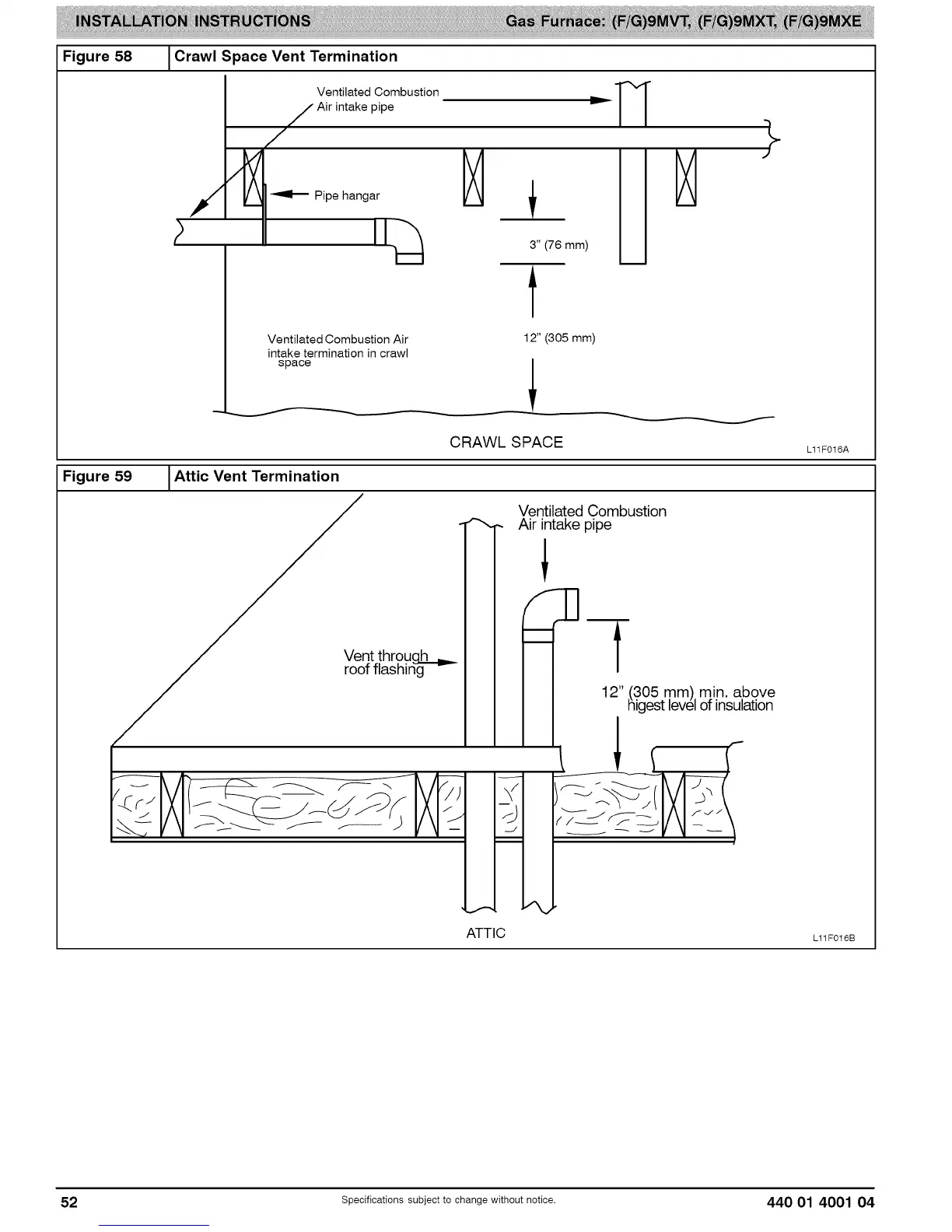

Figure 58 1Crawl Space Vent Termination
Ventilated Combustion _ T_
/ Air intake pipe _ I I
Pipe hangar
'_" (76 mm)
t
Ventilated Combustion Air 12" (305 mm)
intake termination in crawl
space
Figure 59 l Attic Vent Termination
CRAWL SPACE
Vent throuhgb__._
roof flashing
Ventilated Combustion
- Air intake pipe
--f
L11F016A
ATTIC
L11F016B
52 Specifications subject to change without notice. 440 01 4001 04
