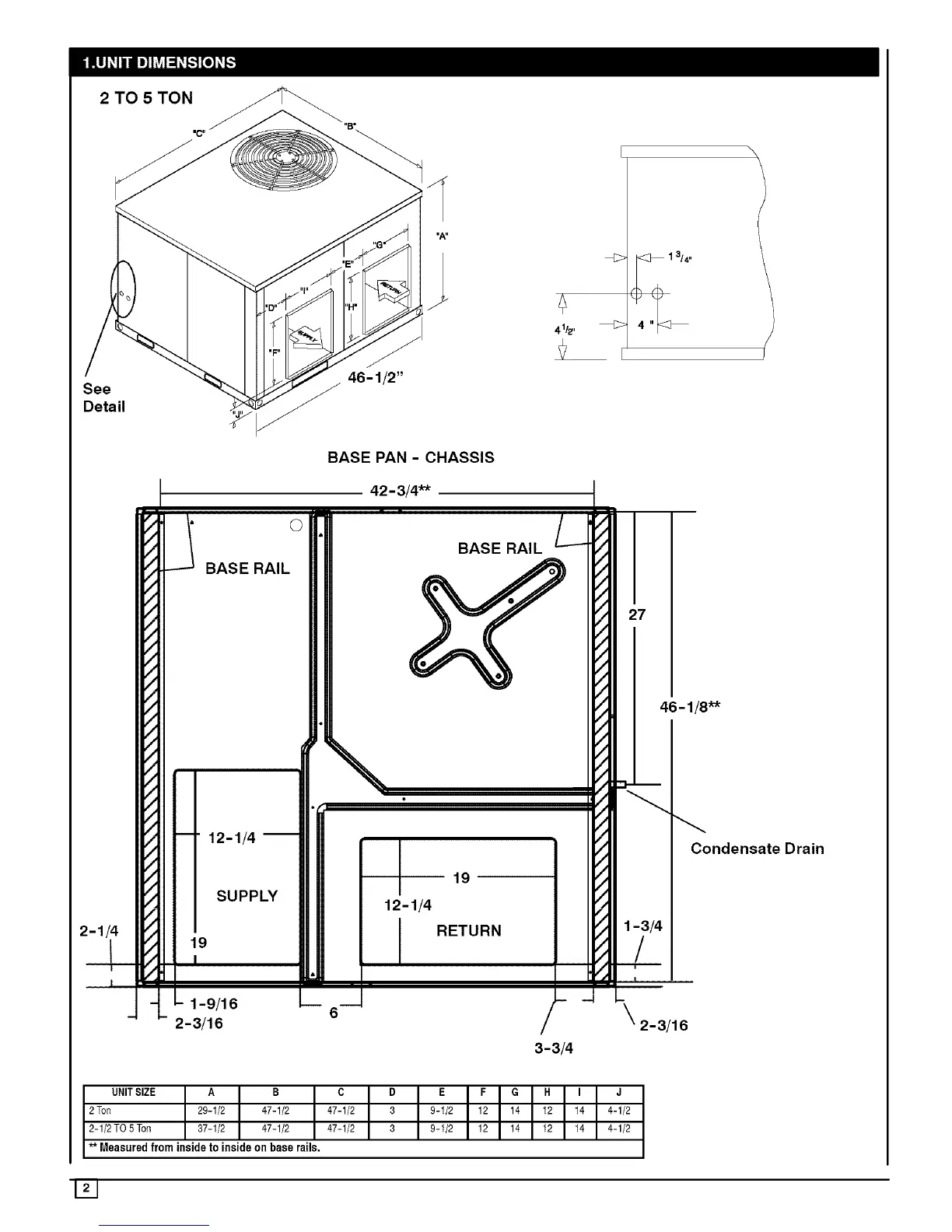

ICP PAF354000K00A1 - UNIT DIMENSIONS

2 TO 5 TON
See
Detail
41/2"
t
BASE PAN - CHASSIS
42-3/4"*
BASE RAIL
--" 12-1/4 i
19
SUPPLY 12-1/4
RETURN
19
I
1-9/16
2-3/16
3-3/4
27
46-1 !8"*
Condensate Drain
1-3/4
/
I
2-3/16
UNITSIZE A B C D
2 Ton 29-1/2 47-1/2 47-1/2 3
2-1/2 TO 5Ton 37-1/2 47-1/2 47-1/2 3
** Measured from inside to inside on base rails.
E F G H I J
9-1/2 12 14 12 14 4-1/2
9-1/2 12 14 12 14 4-1/2
