ICP PGF Series - Rigging Instructions; Safe Lifting Procedures; Unit Dimensions and Weight Specifications

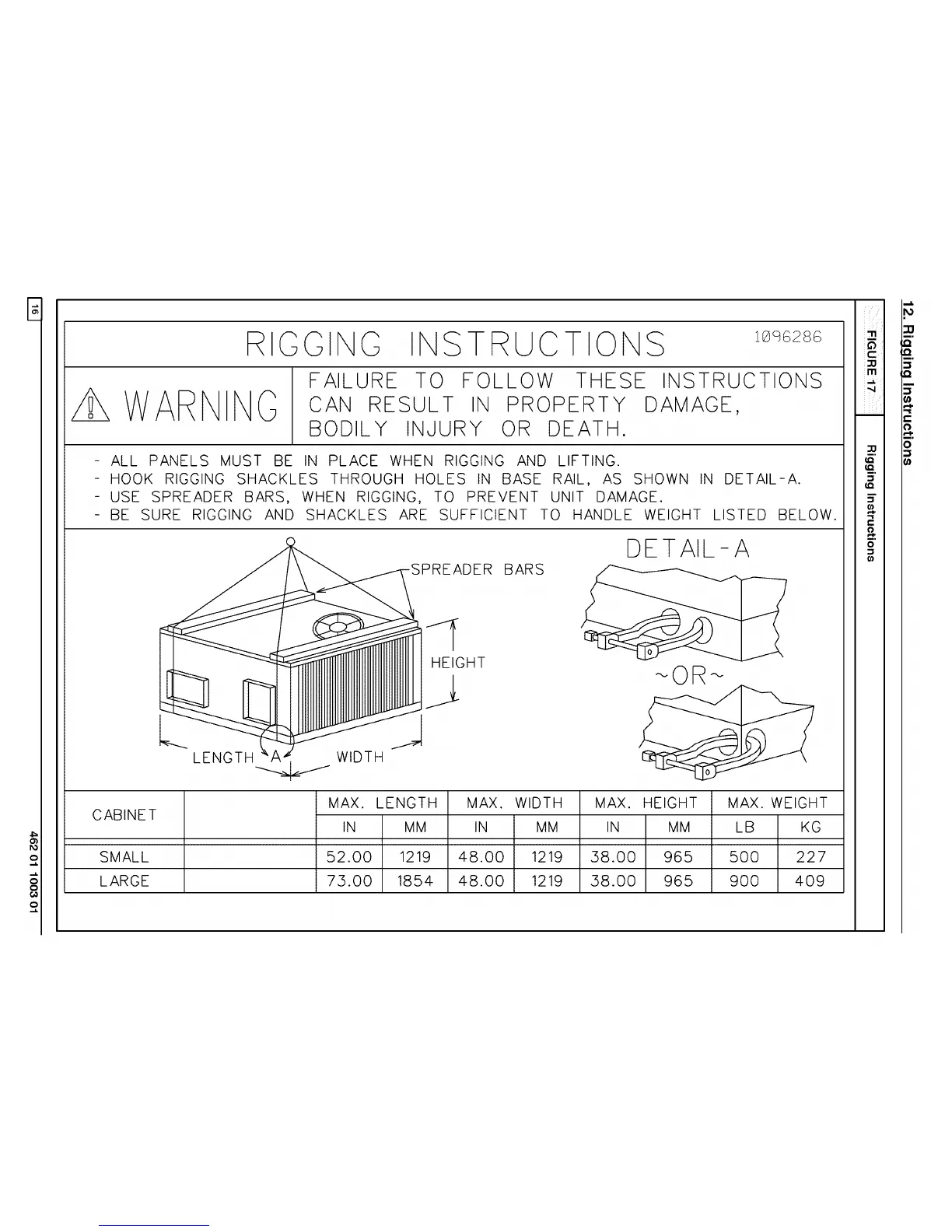

R GGING NSTRUCT ONS __
rs,_uREToro._owT_SE,.STROCT,O_S
- ALL PANELS MUST BE IN PLACE WHEN RIGGING AND LIFTING.
- HOOK RIGGING SHACKLES THROUGH HOLES IN BASE RAIL, AS SHOWN IN DETAIL-A.
- USE SPREADER BARS, WHEN RIGGING, TO PREVENT UNIT DAMAGE.
- BE SURE RIGGING AND SHACKLES ARE SUFFICIENT TO HANDLE WEIGHT LISTED BELOW.
_ _SPREADER
111
BARS
DETAIL-A
_OR_
CABINET
SMALL
LARGE
MAX.
IN
52.00
75.00
LENGTH
MM
1219
1854
MAX.
IN
48.OO
48.OO
WIDTH
MM
1219
1219
MAX.
IN
58.00
58.00
HEIGHT
MM
965
965
MAX. WEIGHT
LB KG
500 227
900 409
