TENSIONING THE RECOIL SPRING
• Hook the rope in the notch of pulley and wind the rope clockwise three
times around the raised center of the pulley.
• Pull the starter rope with the handle until the rope is unwound,
tensioning the spring. Repeat this process, but this time, wind the rope
clockwise four times around and then pull the rope with the handle to
complete the tensioning of the spring.
NOTE: When released, the starter handle should be drawn to the
correct start position after tensioning the spring.
CAUTION: Check that the pulley can be turned an additional 1/2 turn
when the starter cord is pulled all the way out.
MAINTENANCE
STARTER HOUSING ASSEMBLY

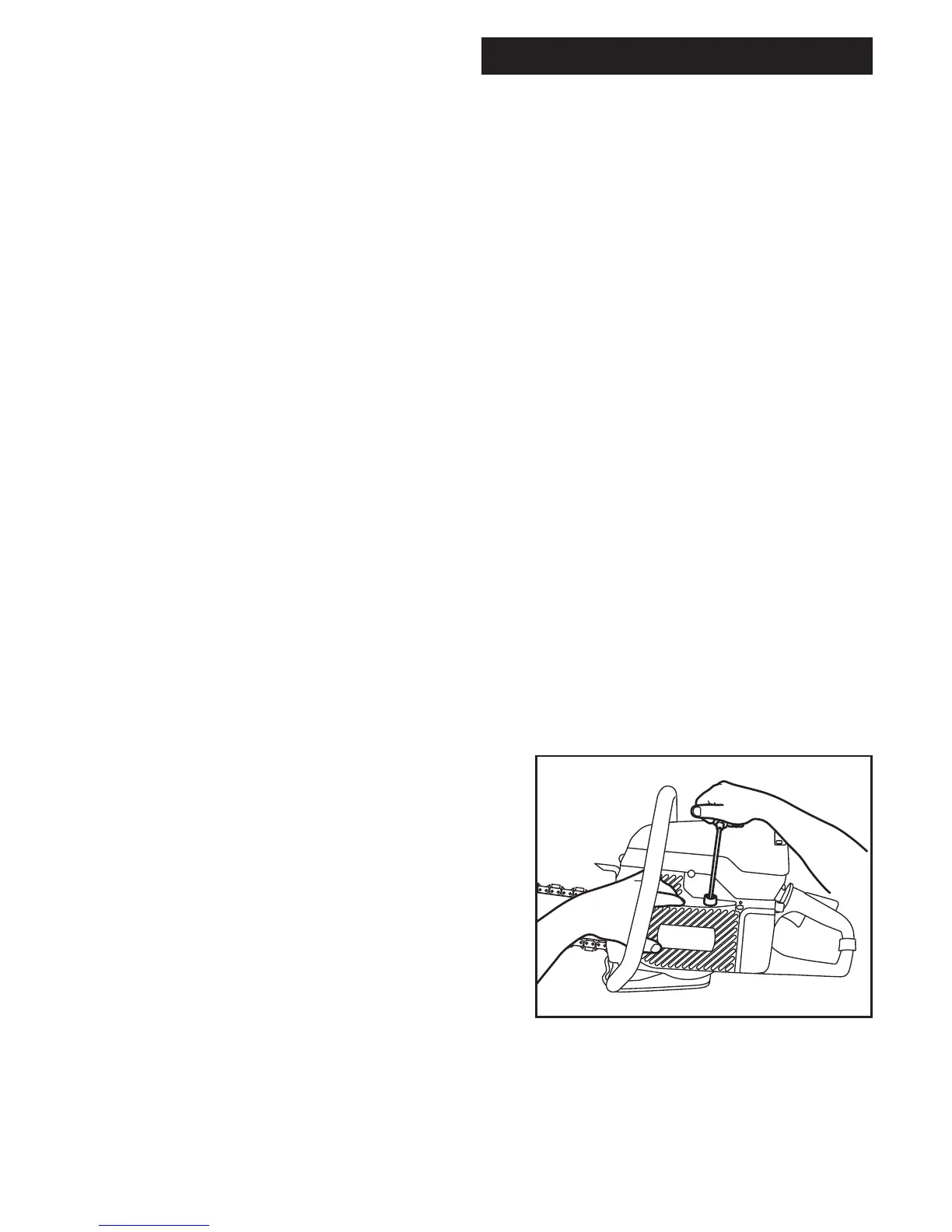

• To reattach the starter cover assembly, first pull the starter cord out,
then hold the starter housing against the crankcase. Slowly release the
starter cord to enable the pulley to fit between the pawls.
• Insert and tighten the screws. Use blue Loctite
®
#242.
