STARTER ROPE REPLACEMENT
• Loosen the four screws that attach the starter cover assembly to
the crankcase, and
remove the starter
cover assembly from
the saw.
• Pull cord out from
pulley approximately
12 inches (30 cm)
and hook rope into
the notch in the
pulley. Relax the recoil spring by placing thumb on the pulley and
gently allow the pulley to rotate backwards to unwind the spring
entirely.
• Remove the old starter rope. If necessary, the pulley may be removed
to extract old rope and then replaced in the housing prior to installing
new rope.

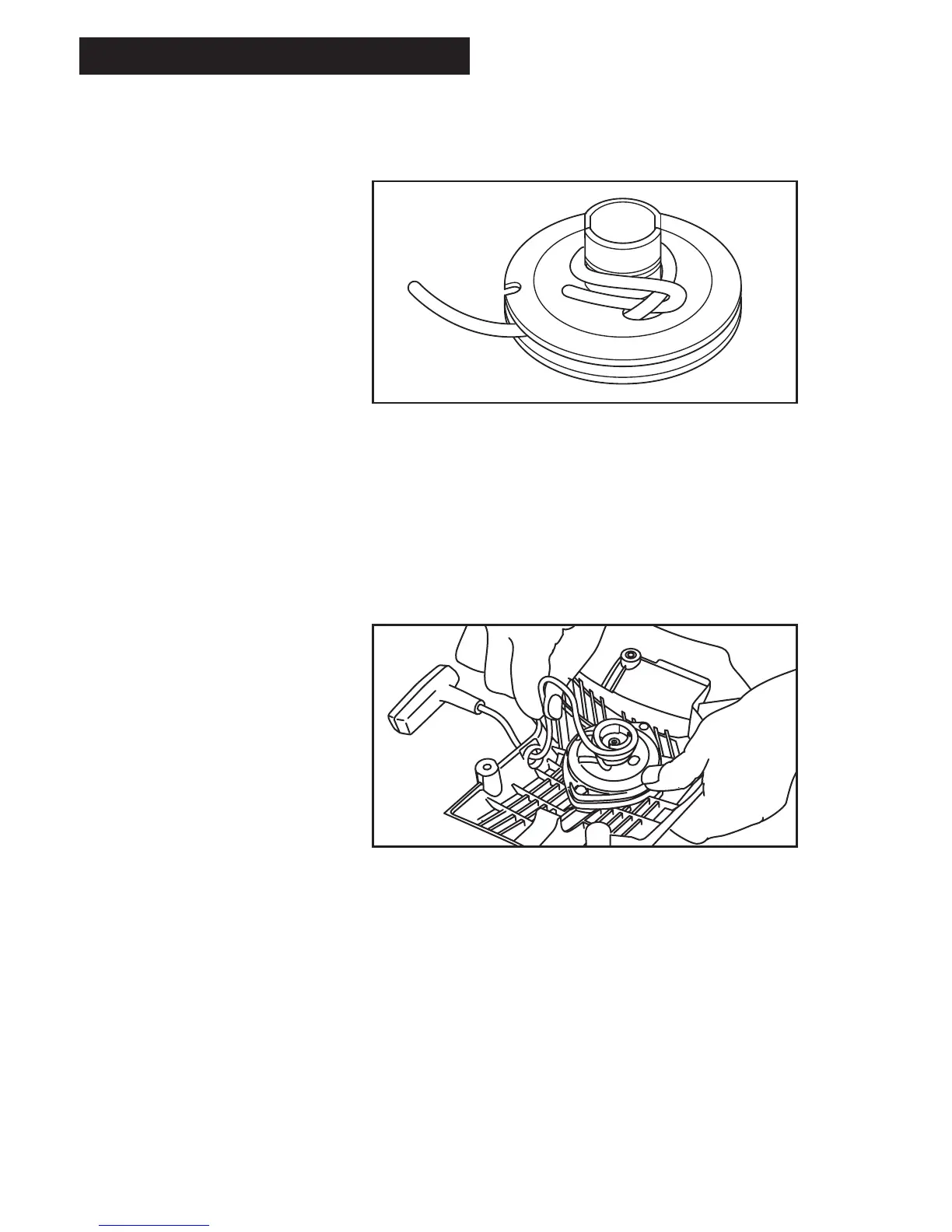

• Thread the new
starter rope through
the hole in the starter
housing and then
through the hole in
the pulley.
• Wrap the starter rope
around the raised
center of the pulley,
looping over top and
under the beginning of the wrap. Tighten the knot firmly and ensure
that free end of rope is as short as possible. Secure the other end of
the rope in the starter handle.
