ADS-RR(SR)-MUS01-DS-IG-EN maestro.idatalink.com
Ford Mustang Base 2010-2012
Automotive Data Solutions Inc. © 2019
5
4
AUX INAUX IN
SUB INSUB IN
WIRES FROM
VEHICLE
CONNECT AUX IN
ONLY IF YOU DON’T HAVE SYNC
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
YELLOW/BLACK - FOOT BRAKE
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
RCA CABLES
FACTORY RADIO HARNESS
PINK/RED - SWI 2 (-) INPUT
INSULATE
WIRE
SYNC
MODULE SIDE
STEERING
WHEEL SIDE
USB CABLES

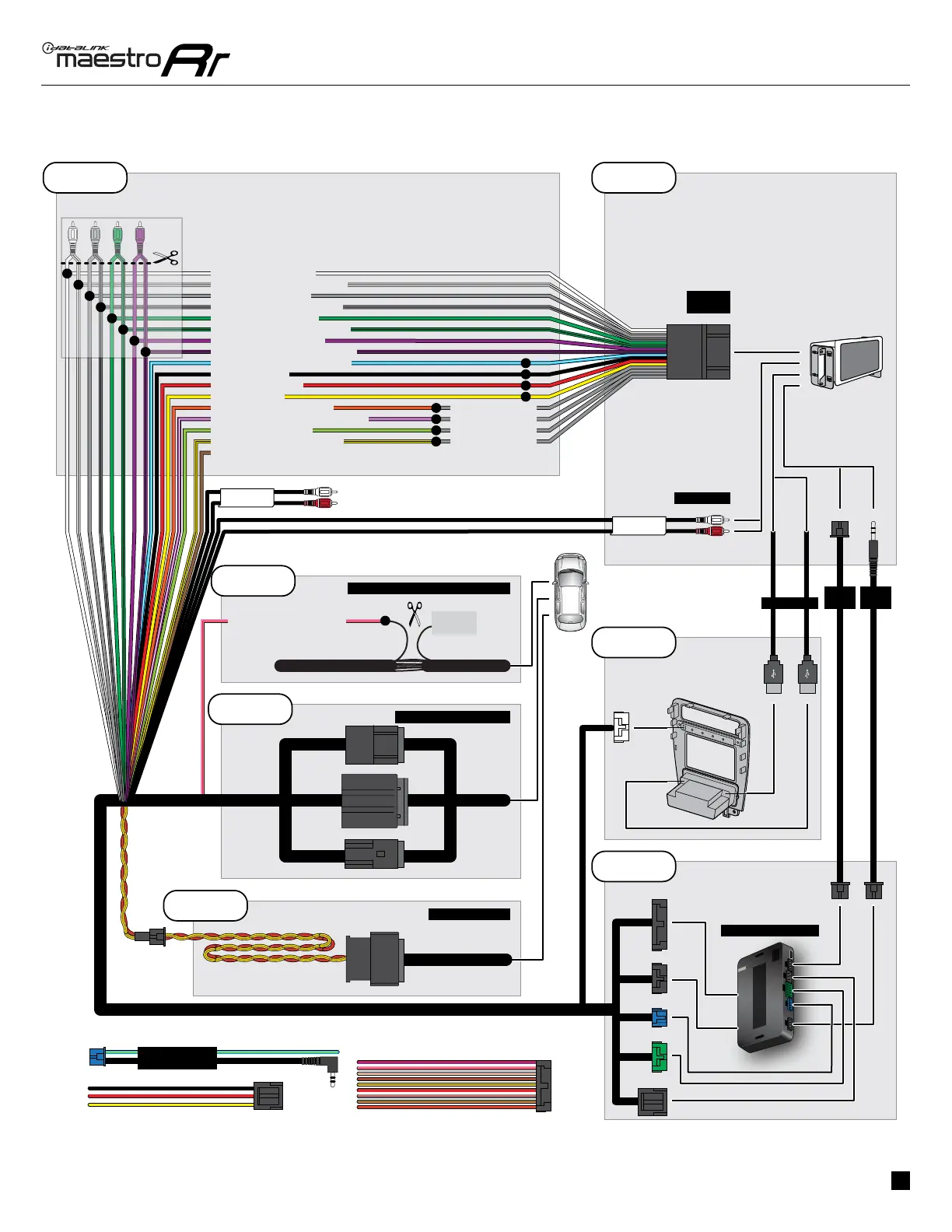

WIRING DIAGRAM
STEP 4
STEP 5
STEP 6
STEP 8
PIONEER RADIO: ENSURE THAT NOTHING
IS PLUGGED IN W/R PORT.
CUT AND REMOVE
THE SPEAKER WIRE
JUNCTION CONNECTORS
SEE RADIO WIRE
REFERENCE CHART
FOR RADIO WIRE
COLORS
NOT CONNECTED
OBDII CONNECTOR
MAESTRO RR MODULE
MUS1 T-HARNESS
STEP 7
STEP 9
STEP 10
CONNECTION NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
SYNC HARNESS (BEHIND GLOVE BOX)
BLUE/ORANGE
