INSTALLATION
ESPRIT 2 - Installation and Servicing

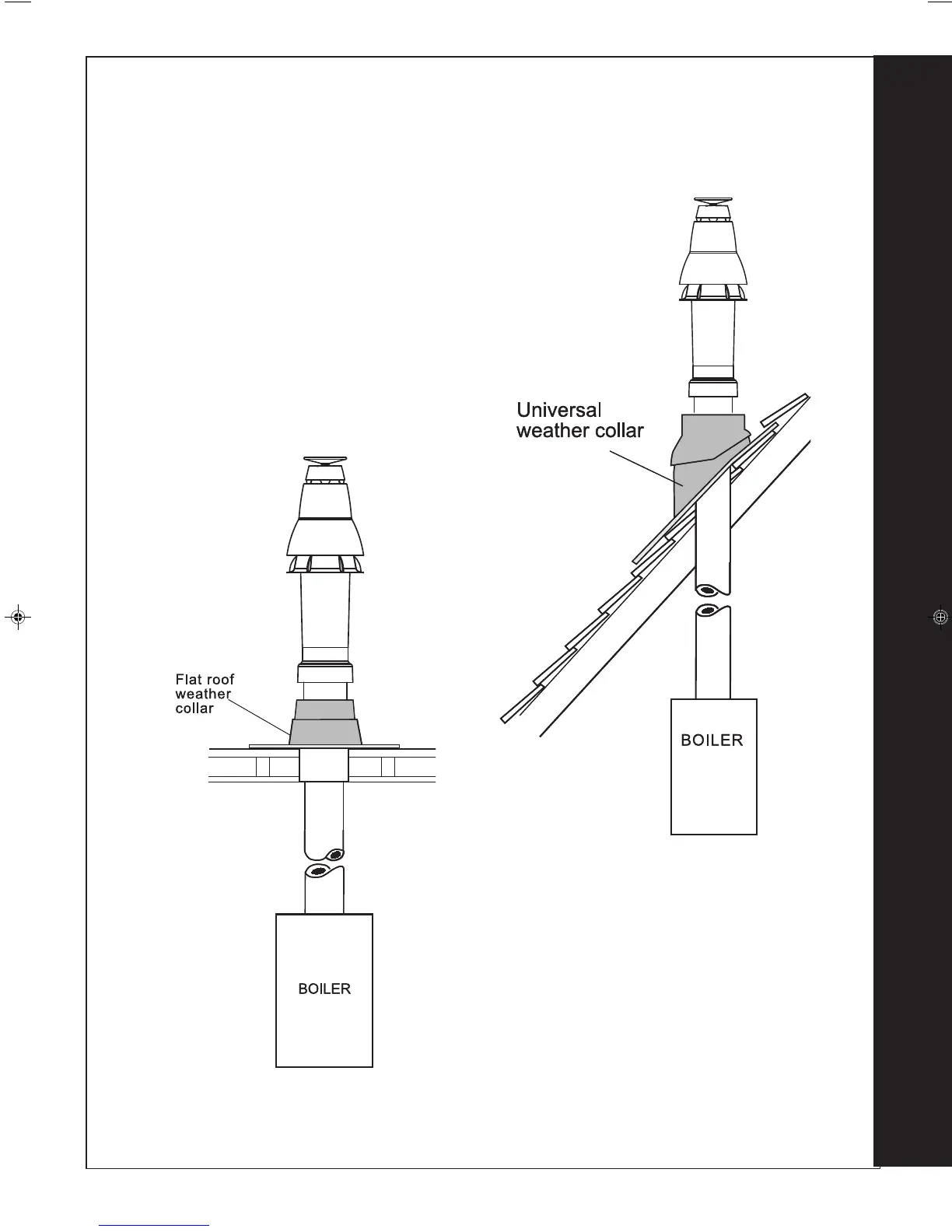

FLUE OUTLET
rf8737
rf8738
30
FLUE ARRANGEMENT
Note.
The equivalent flue length resistance of the elbow kits are:
90
o
elbow kit = 1m
45
o
elbow kit = 0.6m
206091-1.pmd 26/05/2010, 16:0827
