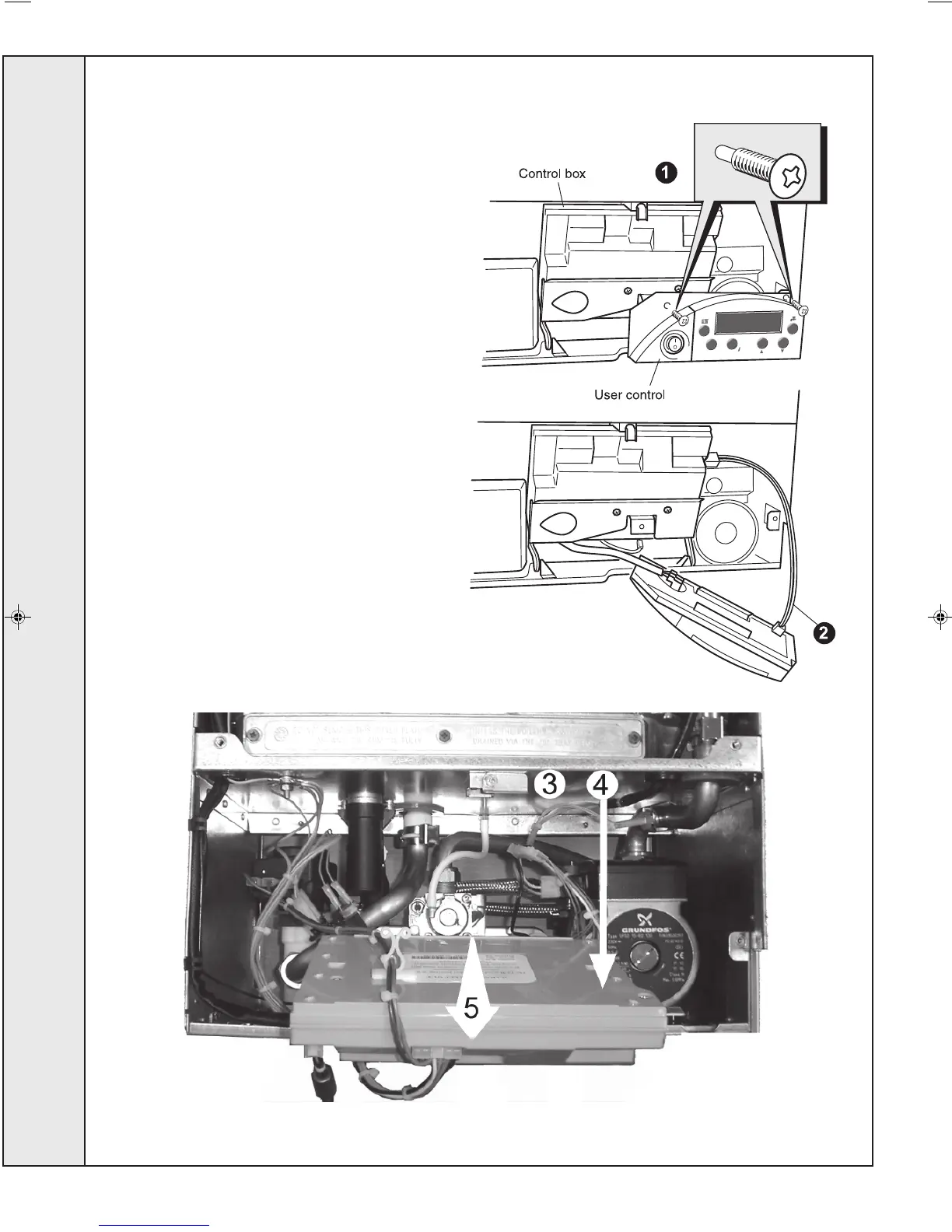

MOVING CONTROL BOX TO THE SERVICING POSITION
1. Remove the 2 screws and withdraw the user
control.
2. Unplug the low voltage electrical lead from the
back of the user control.
3. Release the clamp,
4. Swing the control box down
5. Pull the control box slightly forward.
