Ideal-Standard ALTO ECOTHERM A4741AA User Manual

11
=40°C
>40°C
+
+
80
40
A 5637 AA
5 OPERATION

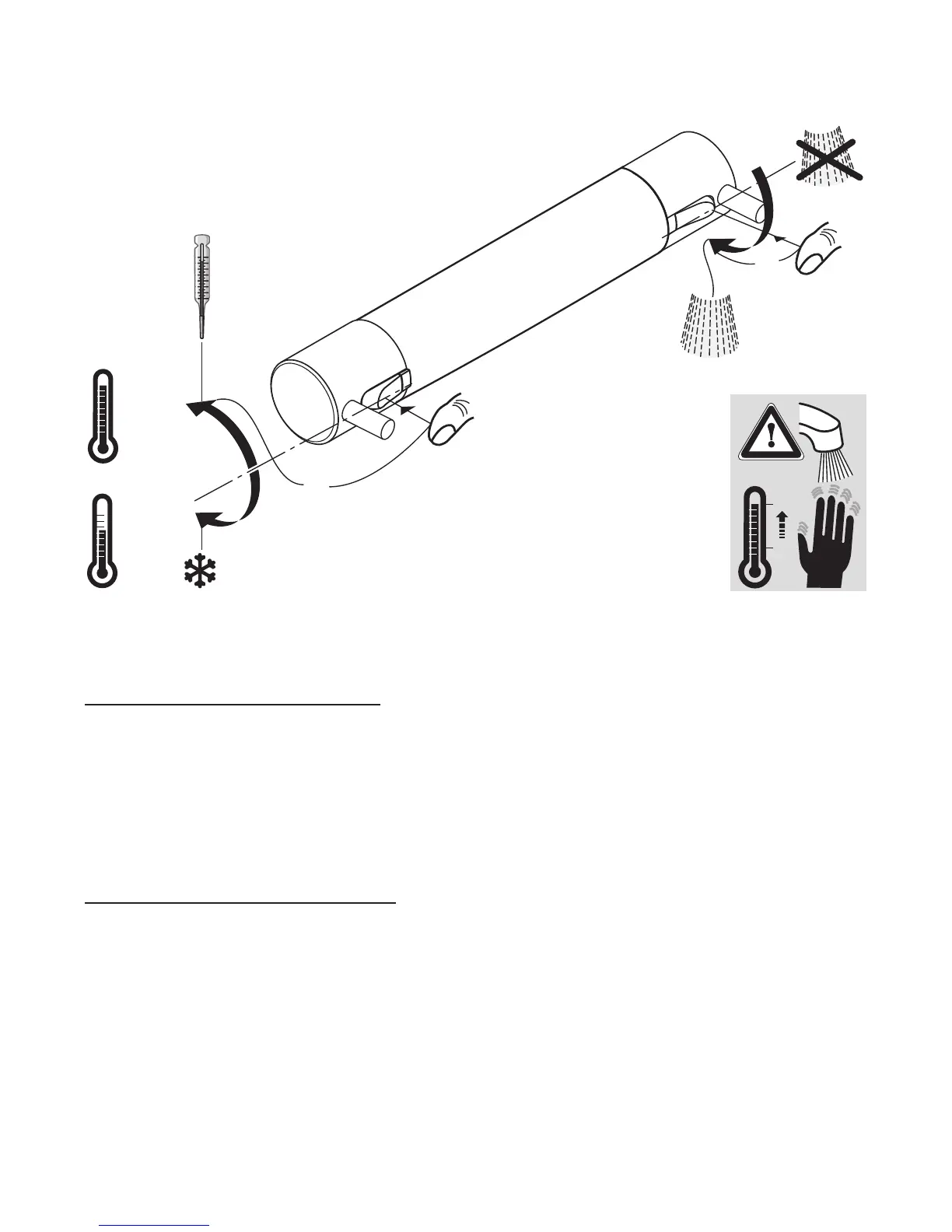

Right handle controls water ow rate.
• This handle is shown above parked in the off position.
• Rotating this handle downwards commences water ow. By rotating the handle 90° from
the off position the user will encounter economy ow “stop” delivering about 50% of the
maximum ow rate achievable through this product.
• To obtain greater ow rate, press the right button and rotate this handle further downwards.
The handle will rotate a further 90° from the economy stop to the maximum ow.
Left handle controls water temperature.
• This handle is shown above parked in the 40°C temperature “stop” position.
• At this temperature “stop” position mixed water is delivered up-to about 40°C.
• To obtain cooler water rotate handle downwards.
• To obtain higher water temperature, press the left button and then rotate this handle upwards.
ATTENTION:
TEMPERATURES HIGHER 40°C CAN BE HARMFUL TO YOUR HEALTH.
DO NOT FORCE HANDLES BEYOND THE DESCRIBED MOVEMENT RANGES
OTHERWISE THIS MAY RESULT IN DAMAGE TO BOTH VALVES AND HANDLES.
Shower valve handle controls
