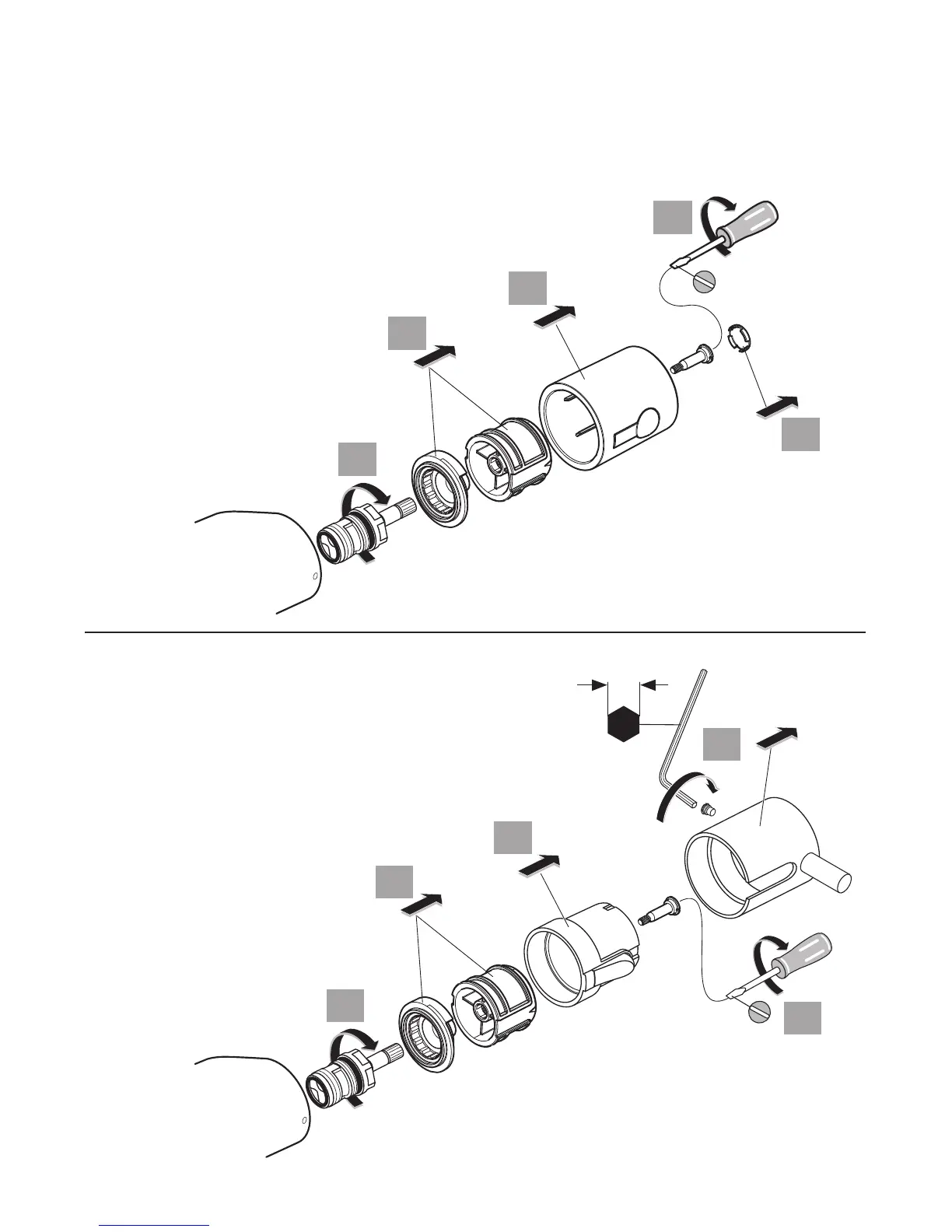

12 FLOW CARTRIDGE REPLACEMENT
A 4740 AA, A 4741 AA & A 6385 AA
A 5637 AA
To replace the ow control cartridge:
(REMEMBER TO TURN OFF WATER SUPPLIES)
1. Prise out the index button.
2. Remove handle screw.
3. Pull off the ow control handle.
4. Pull of handle carriers.
5. Unscrew cartridge with 17mm
A/F spanner and replace if
necessary.
1. Unscrew dog point screw and
pull off ow control handle.
2. Remove handle insert screw.
3. Pull off the handle insert.
4. Pull of handle carriers.
5. Unscrew cartridge with 17mm
A/F spanner and replace if
necessary.
ENSURE PARTS ARE
REASSEMBLED IN THE
CORRECT SEQUENCE.
ENSURE PARTS ARE
REASSEMBLED IN THE
CORRECT SEQUENCE.
