The maximum mixed water temperature is factory
set at 40°C.
To change this temperature, remove the tempera-
ture control handle. see sect.11
Remove the temperature limit stop (black H-
shaped plastic part) and reinsert it in the appropi-
ate recess on the handle carrier.
Four different settings are possible:
40°C, 43°C, 45°C & 50°C
At last ret the temperature handle again.
In the event of the thermostatic cartridge requir-
ing re-calibration the following procedure should
undertaken.

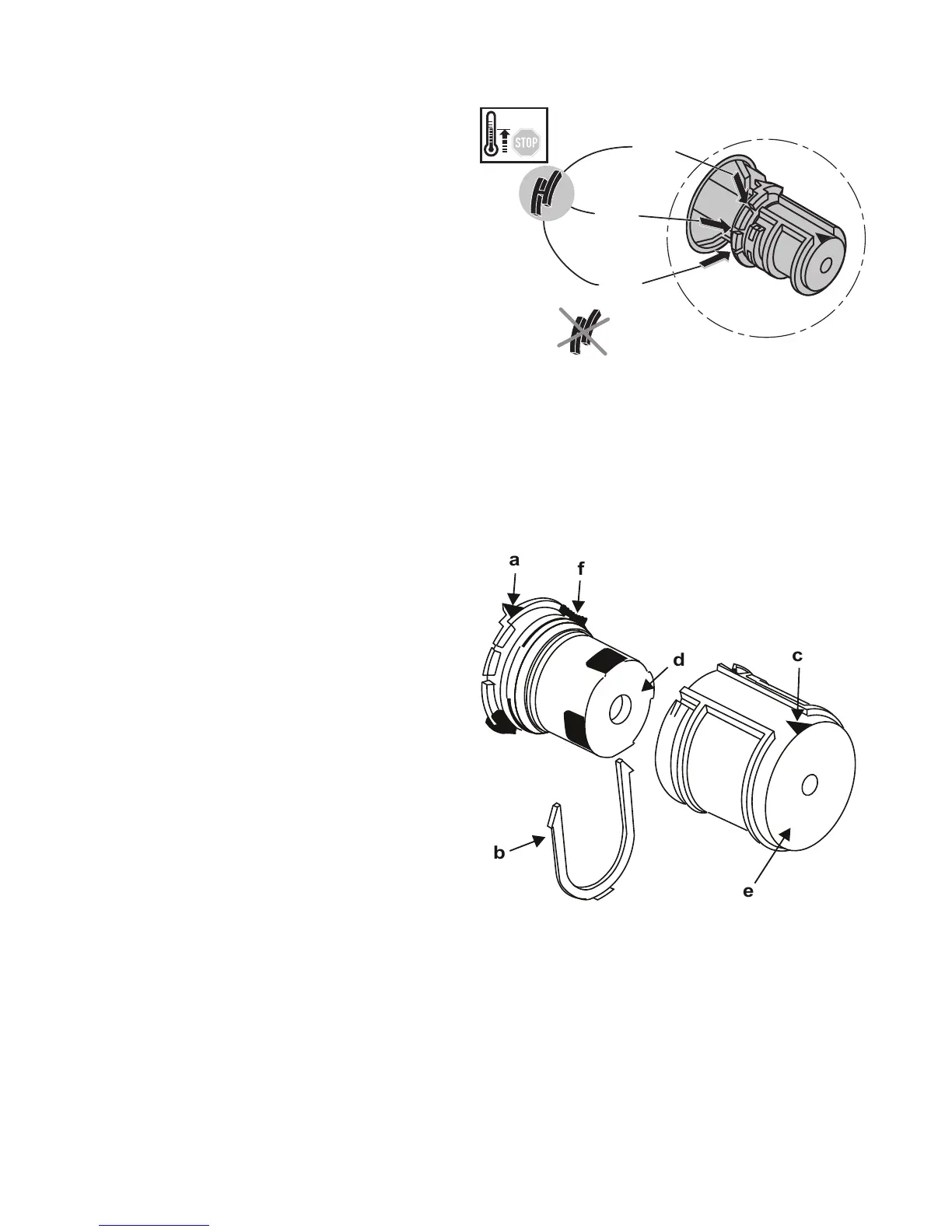

1. Remove the temperature control handle.
see sect.11
2. Slide out the red “U” piece (b) exposing tem-
perature control mechanism (d).
3. Turn on the shower, position a thermometer in
the running water and when the temperature set-
tles, rotate the temperature control mechanism un-
til 40ºC is achieved.
4. Reconnect the handle carrier (e) ensuring the
arrow guide (c) is at 12 o’clock and ret the
red “U” piece (b).
5. Reconnect the Handle.
The tting of isolation valves and strainers is required as close as is practicable to the water supply inlets of
the thermostatic mixing valve. The thermostatic cartridge seldom fails and the possibility of blocked lters
should be investigated before contemplating replacing it. Small particles of debris may still nd their way
past the strainers and onto the lter screens on the thermostatic cartridge. These should be cleaned and
re-tted. See section on cartridge replacement.
IMPORTANT NOTE: Settings of 45°C & 50°C are not recommended for showering.
See section 9 for safe & comfortable bathing temperatures.
