5 OPERATION
A 4740 AA A4741 AA A 6385 AA

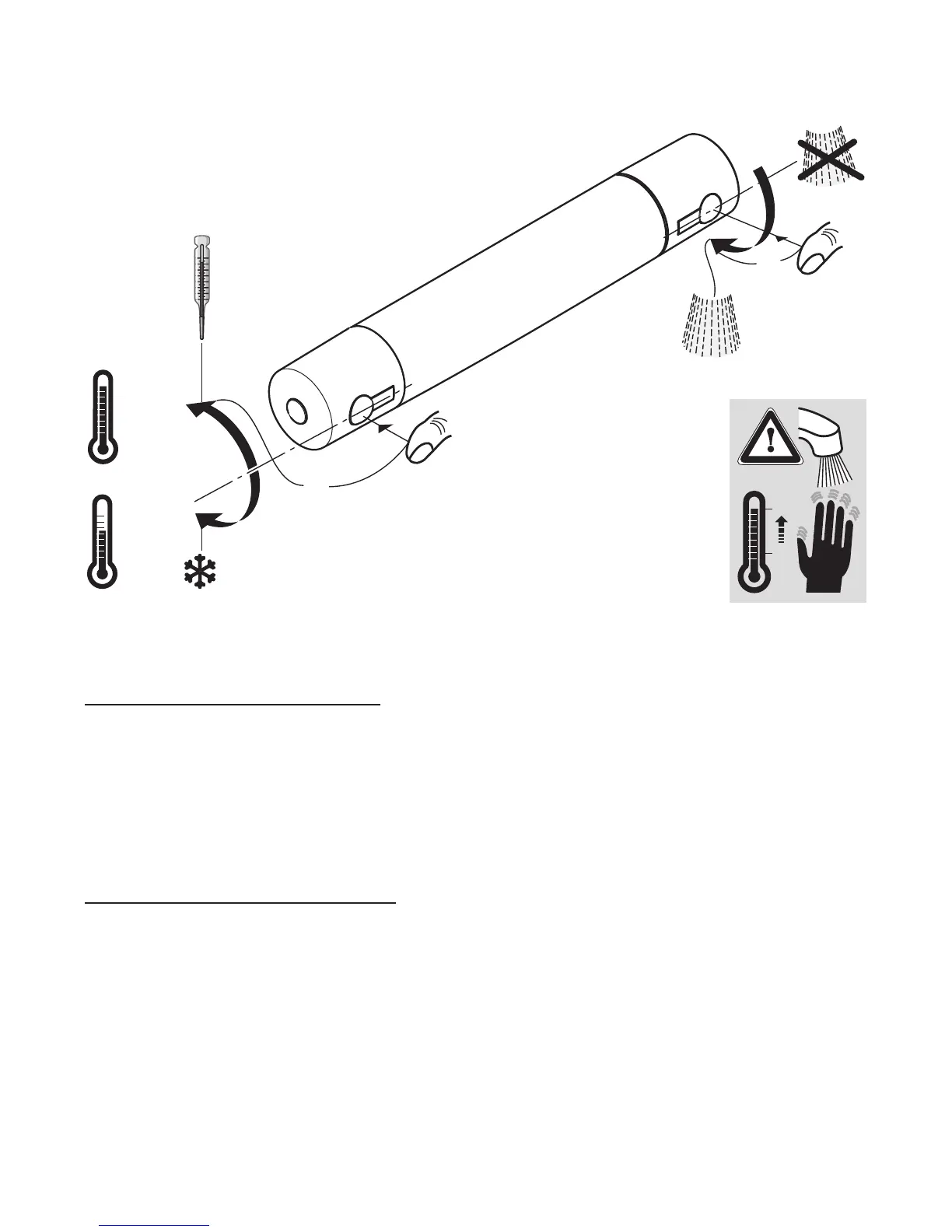

Right handle controls water ow rate.
• This handle is shown above parked in the off position.
• Rotating this handle downwards commences water ow. By rotating the handle 90° from
the off position the user will encounter economy ow “stop” delivering about 50% of the
maximum ow rate achievable through this product.
• To obtain greater ow rate, press the right button and rotate this handle further downwards.
The handle will rotate a further 90° from the economy stop to the maximum ow.
Left handle controls water temperature.
• This handle is shown above parked in the 40°C temperature “stop” position.
• At this temperature “stop” position mixed water is delivered up-to about 40°C.
• To obtain cooler water rotate handle downwards.
• To obtain higher water temperature, press the left button and then rotate this handle upwards.
DO NOT FORCE HANDLES BEYOND THE DESCRIBED MOVEMENT RANGES
OTHERWISE THIS MAY RESULT IN DAMAGE TO BOTH VALVES AND HANDLES.
ATTENTION:
TEMPERATURES HIGHER 40°C CAN BE HARMFUL TO YOUR HEALTH.
