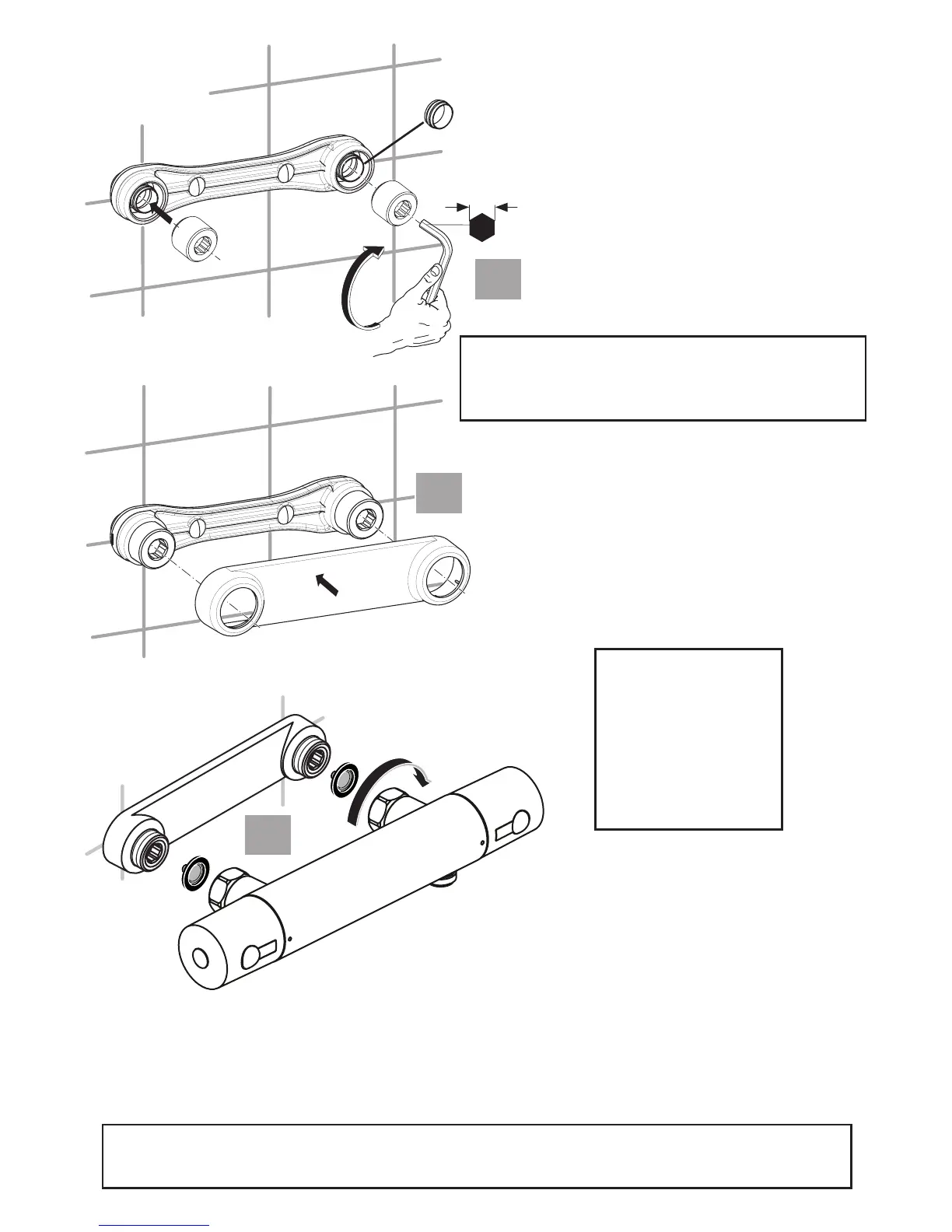

Fit the olives to the pipes prior to
screwing the two 3/4“ connectors into
the wall mount plate using a 1/2“ allen
key.
The connectors will have to be securely
screwed in to form the necessary com-
pression joint between the olive, wall
plate and connector.
Shroud can now be tted to wall plate and should
be positioned with the slot at the bottom
Shower outlet
to underside
Ensure the sealing washers are within the captive nuts of the shower valve.
Fit the shower valve to the wall bracket as shown.
Turn on the water supplies & check for leaks.
Fit 15mm
Olives x2
10
Use 30mm A/F
spanner.
CAUTION:
Take care not to
damage chromed
surfaces.
NOTE FOR IRELAND: 15mm olives are
supplied with this product. Use ½” olives
if ½” supply pipes are tted.
For guidance on how to install the shower kit, please refer to the seperate
instructions provided with the kit.
