8
4
6

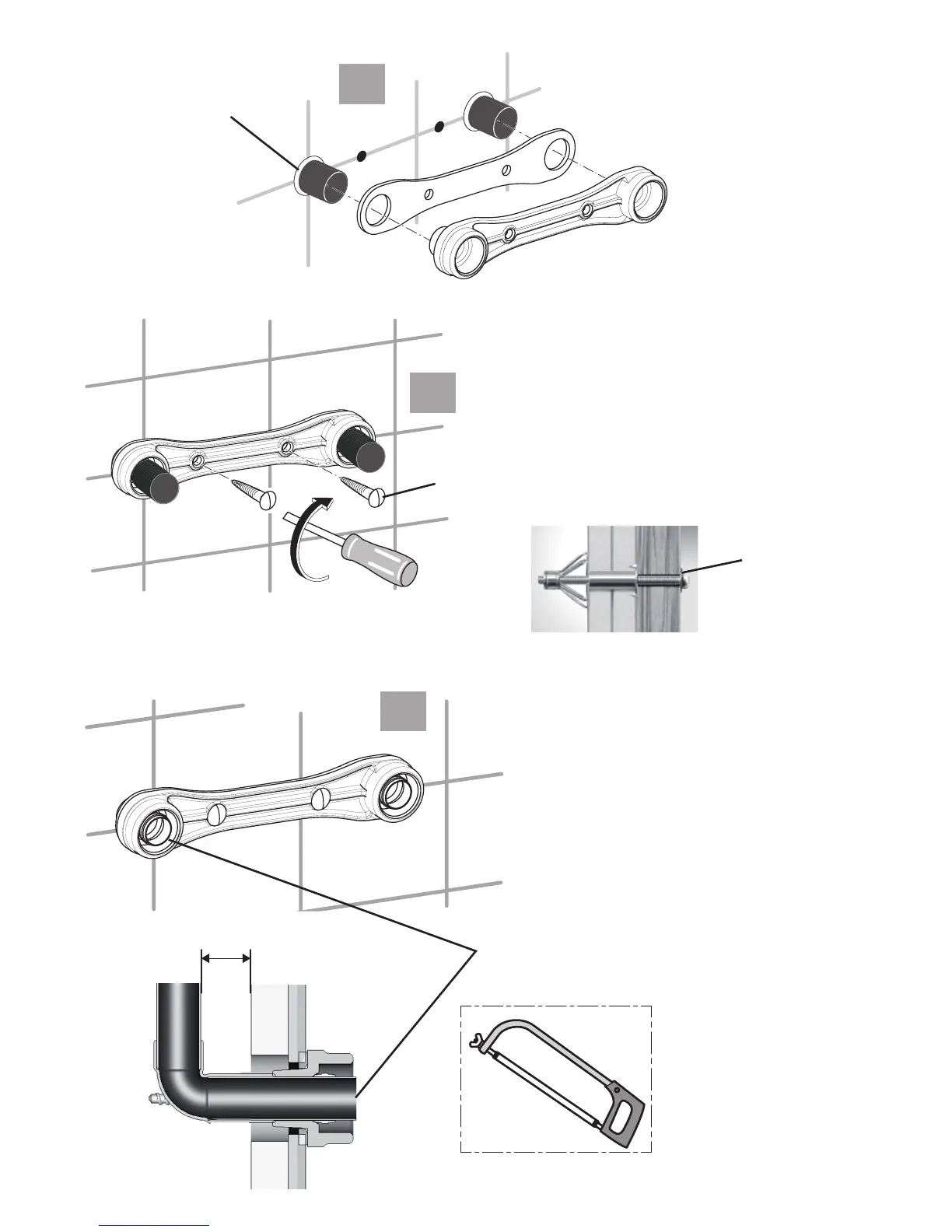

Note:
Tile closely to the
pipe to ensure gasket
effectiveness
Palce gasket on the rear of
wall mount plate
Tighten up the two screws until secure.
Note:
For plaster board duct it will be
necessary to t extra strong cavity
anchor plasterboarad xings as
shown.
The pipes should be trimmed level to
the wall bracket. If using a pipe cutter
it will be necessary to mark the pipes
and then remove the bracket before
trimming to its correct length.
Note:
If the wall is to be subsequently tiled
ensure there is sufcient movement
in the duct pipework to allow the
bracket to move forward by the thick-
ness of the tilling.
Cavity anchor
plasterboard
xing
5
Use suitable
wall xings
Tilling movement
allowance
Pipe trimmed
level with the
wall bracket
