Resistance (Ω)/Continuity •
)))

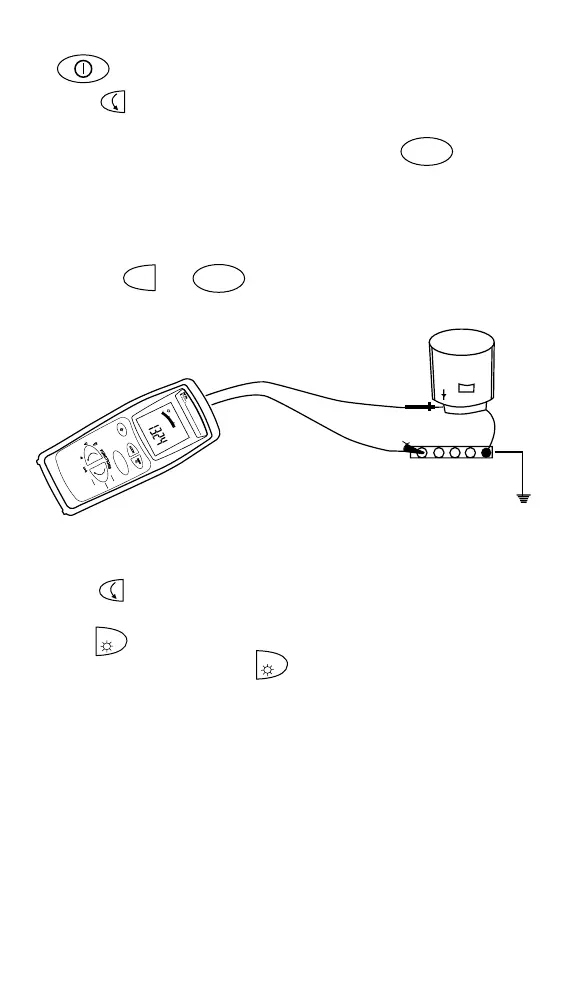

1. Turn on the instrument.
2. Press two times to select Ω/•
)))
.
3. Insert test leads into the corresponding input terminals.
4. Apply test leads to de-energized circuit and press to perform
the measurement.
5. Apply test leads:
• The ohms value is displayed.
• If <30Ω, continuity beeper also sounds.
Note: Press and to perform measurements in continuous
mode. LOCK is displayed and APO is defeated.
For higher accuracy and resolution:
• Press to select LoΩ (0.00 - 19.99Ω).
• Null (ZERO) test leads by touching test lead tips tightly together.
Press >2 sec. The resistance of the leads is now subtracted from
pending measurements until is pressed again.
• Repeat steps 3 - 5 to take resistance measurements.
