IDEAL EXALT Combi 155 Quick Reference Boiler Piping And Wiring Guide

30

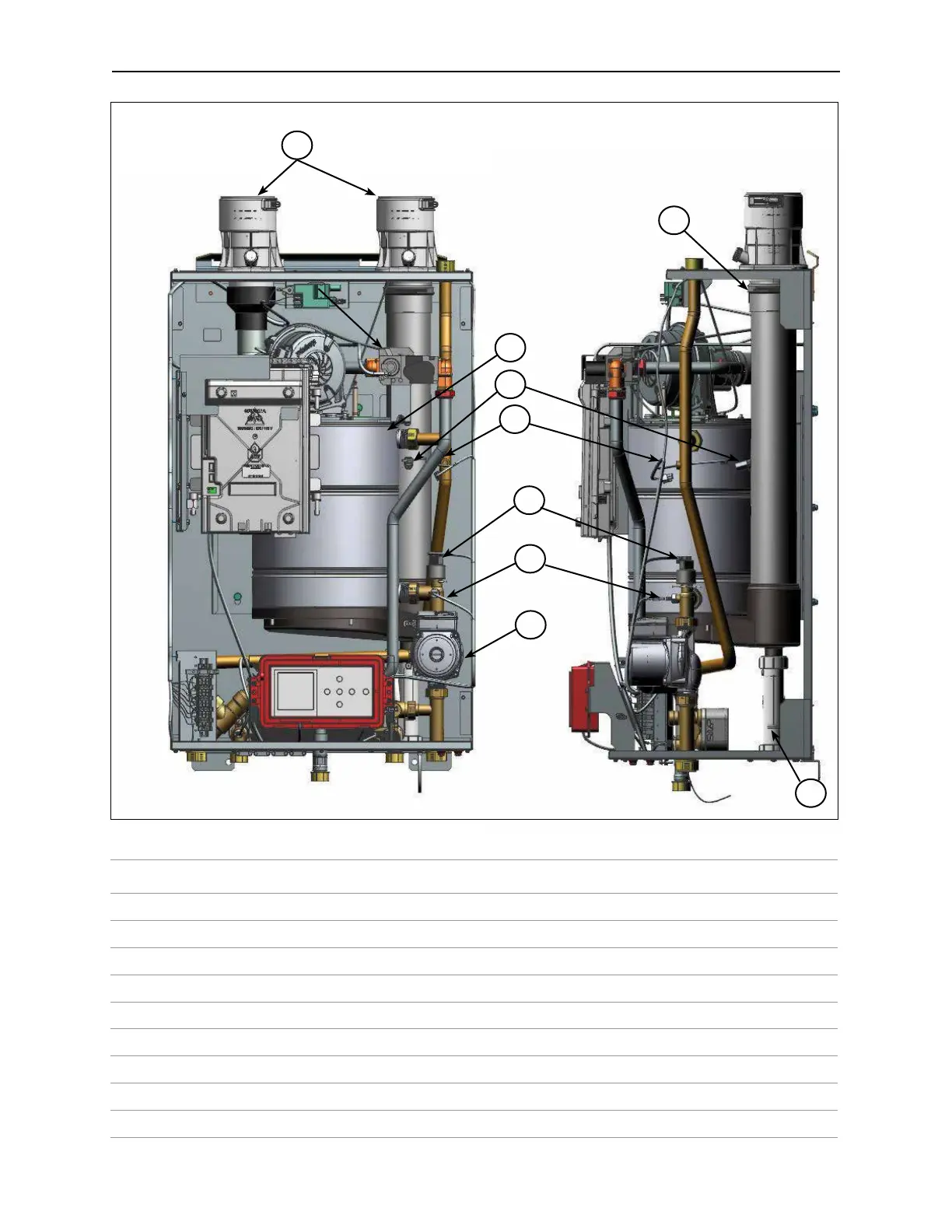

EXALT Combi 155 Internal Components
7
4
5
8
6
1
3
2
9
7
Item Part #Description
1EXARKIT40 Vent Outlet/Combustion Air Inlet Adapter
2EXARKIT02 Heat Exchanger Body
3EXARKIT56 CH Supply Temperature Sensor
4EXARKIT59 Low Water Cut O
5EXARKIT56 CH Return Temperature Sensor
6EXARKIT85 Condensate Drain Assembly
7EXARKIT41 Flue Tube
8EXARKIT21 Circulator
9EXARKIT57 Flue Temperature Sensor
EXALT Combi 155 Internal Components
7
4
5
8
6
1
3
2
9
7
It
em Part #Description
1E
XARKIT40 Vent Outlet/Combustion Air Inlet Adapter
2E
XARKIT02 Heat Exchanger Body
3E
XARKIT56 CH Supply Temperature Sensor
4E
XARKIT59 Low Water Cut O
5E
XARKIT56 CH Return Temperature Sensor
6E
XARKIT85 Condensate Drain Assembly
7E
XARKIT41 Flue Tube
8E
XARKIT21 Circulator
9E
XARKIT57 Flue Temperature Sensor

IDEAL EXALT Combi 155 Specifications

General

Brand	IDEAL
Model	EXALT Combi 155
Category	Boiler
Language	English
