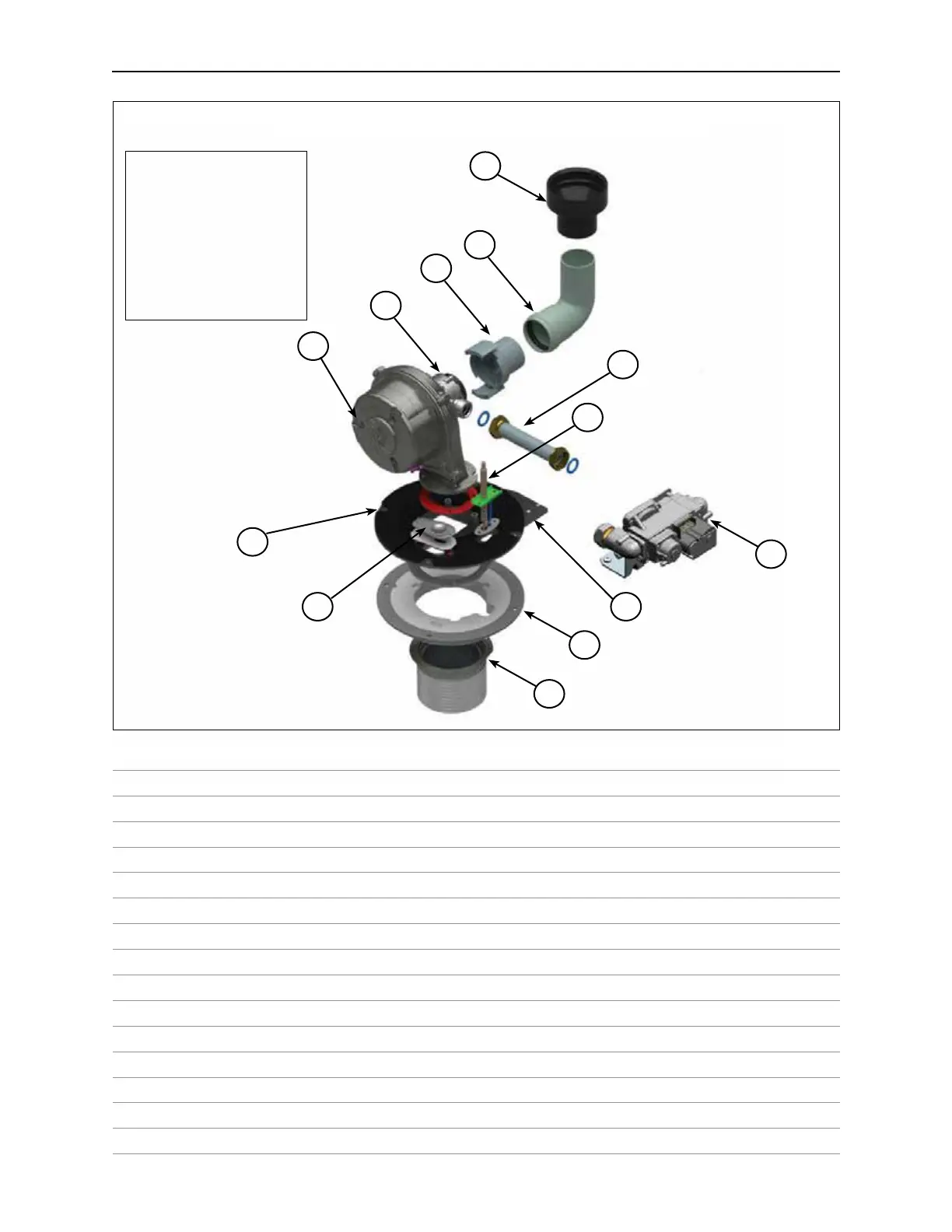

 EXALT Solo 110 Burner Components
1
3
10
11
12
8
9
2
7
13
5
4
6
Item Part #Description
1EXARKIT04 Blower Assembly
2EXARKIT06 Gas Valve
3EXARKIT07 NG - Venturi
3EXARKIT08 LP - Venturi
4EXARKIT14 Burner Plate
5EXARKIT18 Combustion Chamber 2-in-1 Insulation
6EXARKIT24 Burner Head Assembly
7EXARKIT27 Igniter Assembly
8EXARKIT87 Sight Glass Assembly
9EXARKIT30 Burner Plate Insulation
10 EXARKIT13 Venturi Air Inlet
11 EXARKIT74 Air Inlet Elbow
12 EXARKIT75 Air Inlet Adapter
13 EXARKIT76 Venturi Gas Inlet Pipe
It is essential to ensure
during installation, main-
tenance or repair that
items 12, 11 and 10 are
correctly tted between
the blower and inlet
adaptor. Failure to ensure
correct tting may result
in serious injury, or death.
 EXALT Solo 110 Burner Components
1
3
10
11
12
8
9
2
7
13
5
4
6
Item Part #Description
1EXARKIT04 Blower Assembly
2EXARKIT06 Gas Valve
3EXARKIT07 NG - Venturi
3EXARKIT08 LP - Venturi
4EXARKIT14 Burner Plate
5EXARKIT18 Combustion Chamber 2-in-1 Insulation
6EXARKIT24 Burner Head Assembly
7EXARKIT27 Igniter Assembly
8EXARKIT87 Sight Glass Assembly
9EXARKIT30 Burner Plate Insulation
10 EXARKIT13 Venturi Air Inlet
11 EXARKIT74 Air Inlet Elbow
12 EXARKIT75 Air Inlet Adapter
13 EXARKIT76 Venturi Gas Inlet Pipe
It is essential to ensure
during installation, main-
tenance or repair that
items 12, 11 and 10 are
correctly tted between
the blower and inlet
adaptor. Failure to ensure
correct tting may result
in serious injury, or death.
