IDEAL EXALT Combi 155 Quick Reference Boiler Piping And Wiring Guide

34

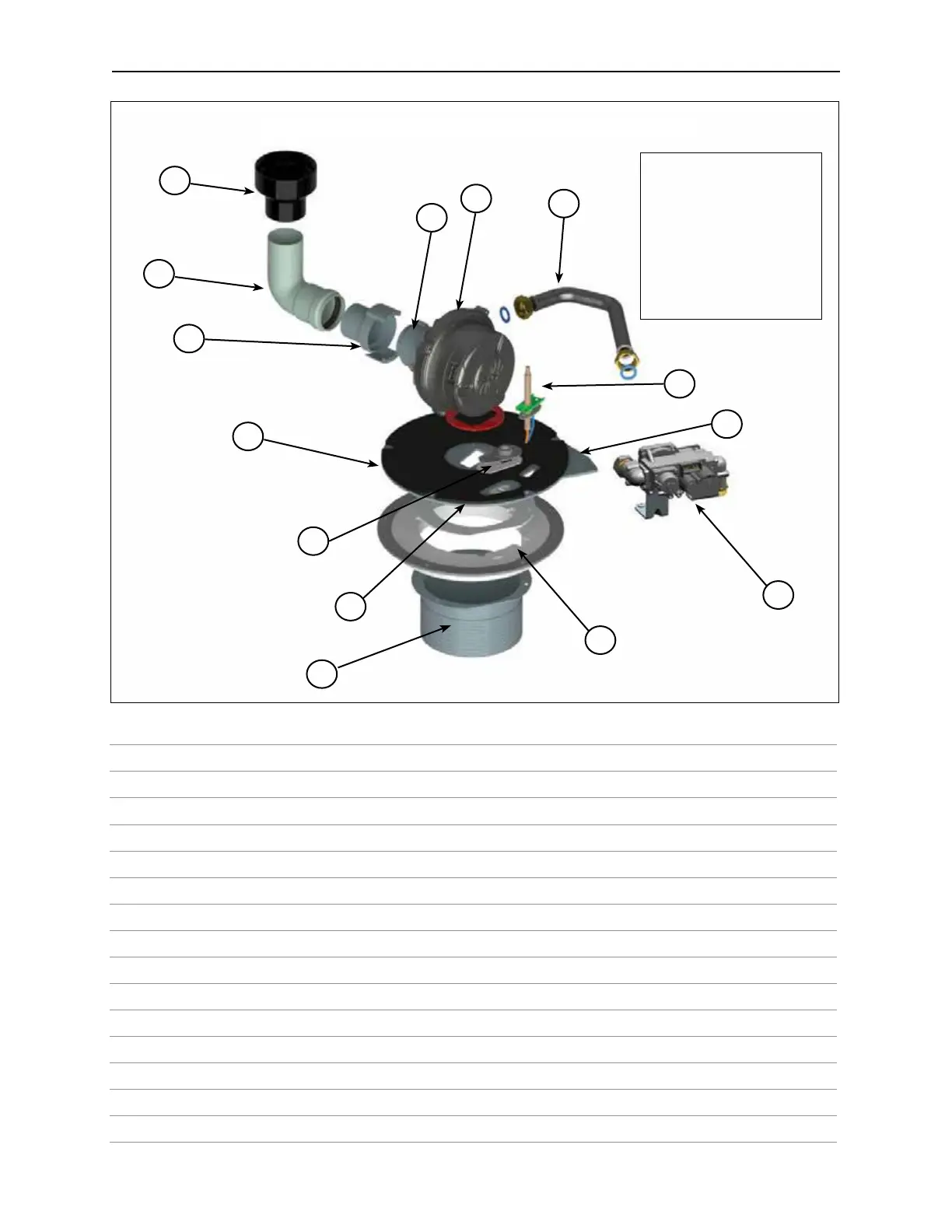

 EXALT Solo/Combi 155 Burner Components
1
8
3
11
12
13
2
5
10
4
7
6
9
6
Item Part #Description
1EXARKIT04 Blower Assembly
2EXARKIT27 Igniter Assembly
3EXARKIT31 Burner Plate Insulation
4EXARKIT87 Sight Glass Assembly
5EXARKIT15 Burner Plate
6EXARKIT19 Combustion Chamber 2-in-1 Insulation
7EXARKIT25 Burner Head Assembly
8 EXARKIT09 NG Venturi
8 EXARKIT10
LP Venturi
9EXARKIT06
Gas Valve
10 EXARKIT13
Venturi Air Inlet
11 EXARKIT74
Air Inlet Elbow
12 EXARKIT75
Air Inlet Adapter
13 EXARKIT77
Venturi Gas Inlet Pipe
It is essential to ensure
during installation, main-
tenance or repair that
items 12, 11 and 10 are
correctly tted between
the blower and inlet
adaptor. Failure to ensure
correct tting may result
in serious injury, or death.
 EXALT Solo/Combi 155 Burner Components
1
8
3
11
12
13
2
5
10
4
7
6
9
6
It
em Part #Description
1E
XARKIT04 Blower Assembly
2E
XARKIT27 Igniter Assembly
3E
XARKIT31 Burner Plate Insulation
4E
XARKIT87 Sight Glass Assembly
5E
XARKIT15 Burner Plate
6E
XARKIT19 Combustion Chamber 2-in-1 Insulation
7E
XARKIT25 Burner Head Assembly
8
EXARKIT09 NG Venturi
8
EXARKIT10
LP Venturi
9E
XARKIT06
Gas Valve
10
EXARKIT13
Venturi Air Inlet
11
EXARKIT74
Air Inlet Elbow
12
EXARKIT75
Air Inlet Adapter
13
EXARKIT77
Venturi Gas Inlet Pipe
It is essential to ensure
during installation, main-
tenance or repair that
items 12, 11 and 10 are
correctly tted between
the blower and inlet
adaptor. Failure to ensure
correct tting may result
in serious injury, or death.

IDEAL EXALT Combi 155 Specifications

General

Brand	IDEAL
Model	EXALT Combi 155
Category	Boiler
Language	English
