IDEAL EXALT Combi 155 Quick Reference Boiler Piping And Wiring Guide

35

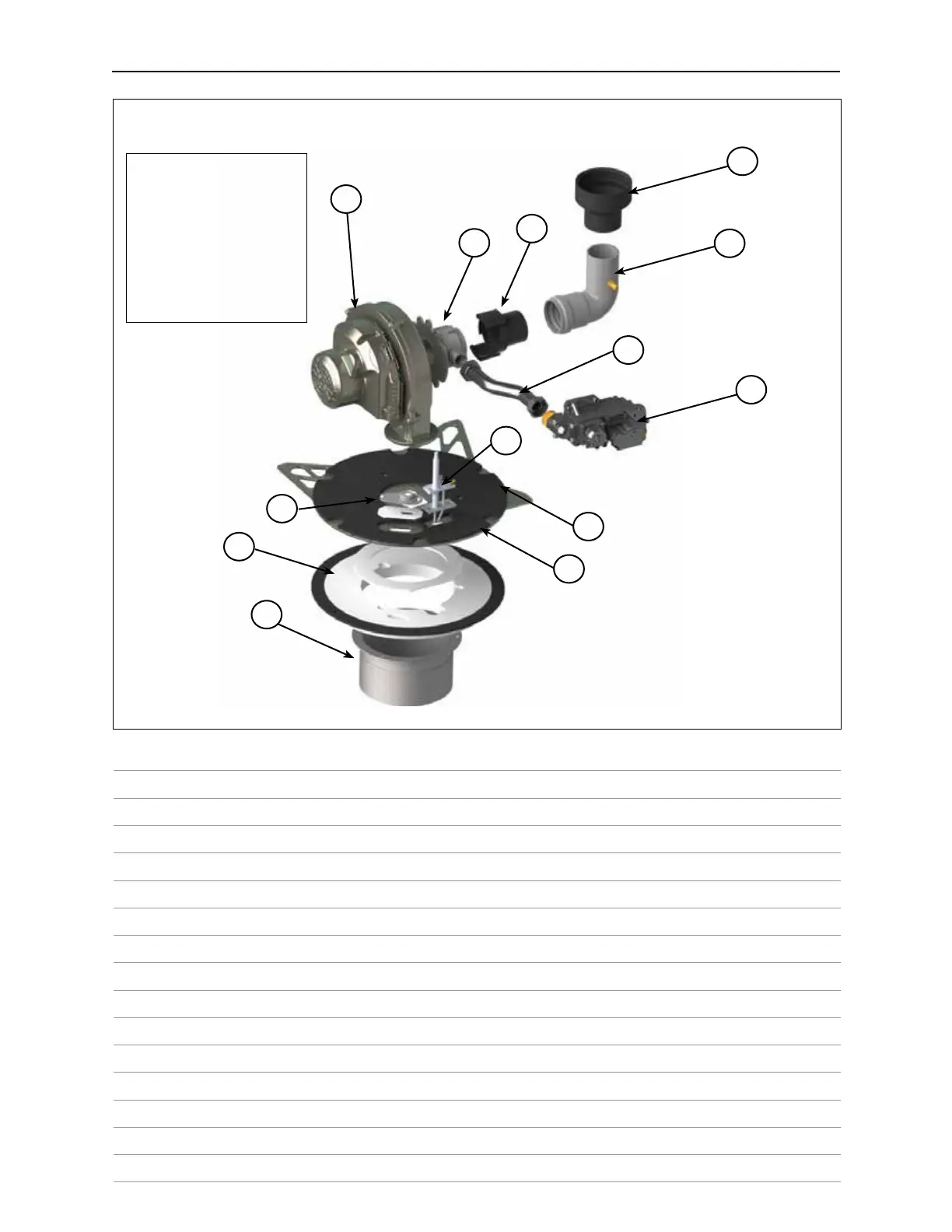

 EXALT Combi 199 Burner Components
7
5
3
6
4
2
9
13
11
12
10
8
1
Item Part #Description
1EXARKIT05 Blower Assembly
2EXARKIT27 Ignitor Assembly
3EXARKIT32 Burner Plate Insulation
4 EXARKIT87 Sight Glass Assembly
5EXARKIT16 Burner Plate
6EXARKIT20 Combustion two in one Insulation
7EXARKIT25 Burner Head Assembly
8EXARKIT11 Venturi (NG)
8EXARKIT12 Venturi (LP)
9EXARKIT06 Gas Valve
10 EXARKIT13 Venturi Air Inlet
11 EXARKIT74 Air Inlet Elbow
12 EXARKIT75 Air Inlet Adaptor
13 EXARKIT78 Venturi Gas Valve Inlet Pipe
It is essential to ensure
during installation, main-
tenance or repair that
items 12, 11 and 10 are
correctly tted between
the blower and inlet
adaptor. Failure to ensure
correct tting may result
in serious injury, or death.
 EXALT Combi 199 Burner Components
7
5
3
6
4
2
9
13
11
12
10
8
1
Item Part #Description
1EXARKIT05 Blower Assembly
2EXARKIT27 Ignitor Assembly
3EXARKIT32 Burner Plate Insulation
4 EXARKIT87 Sight Glass Assembly
5EXARKIT16 Burner Plate
6EXARKIT20 Combustion two in one Insulation
7EXARKIT25 Burner Head Assembly
8EXARKIT11 Venturi (NG)
8EXARKIT12 Venturi (LP)
9EXARKIT06 Gas Valve
10 EXARKIT13 Venturi Air Inlet
11 EXARKIT74 Air Inlet Elbow
12 EXARKIT75 Air Inlet Adaptor
13 EXARKIT78 Venturi Gas Valve Inlet Pipe
It is essential to ensure
during installation, main-
tenance or repair that
items 12, 11 and 10 are
correctly tted between
the blower and inlet
adaptor. Failure to ensure
correct tting may result
in serious injury, or death.
