Installation and Servicing

SECTION 3 - SERVICING

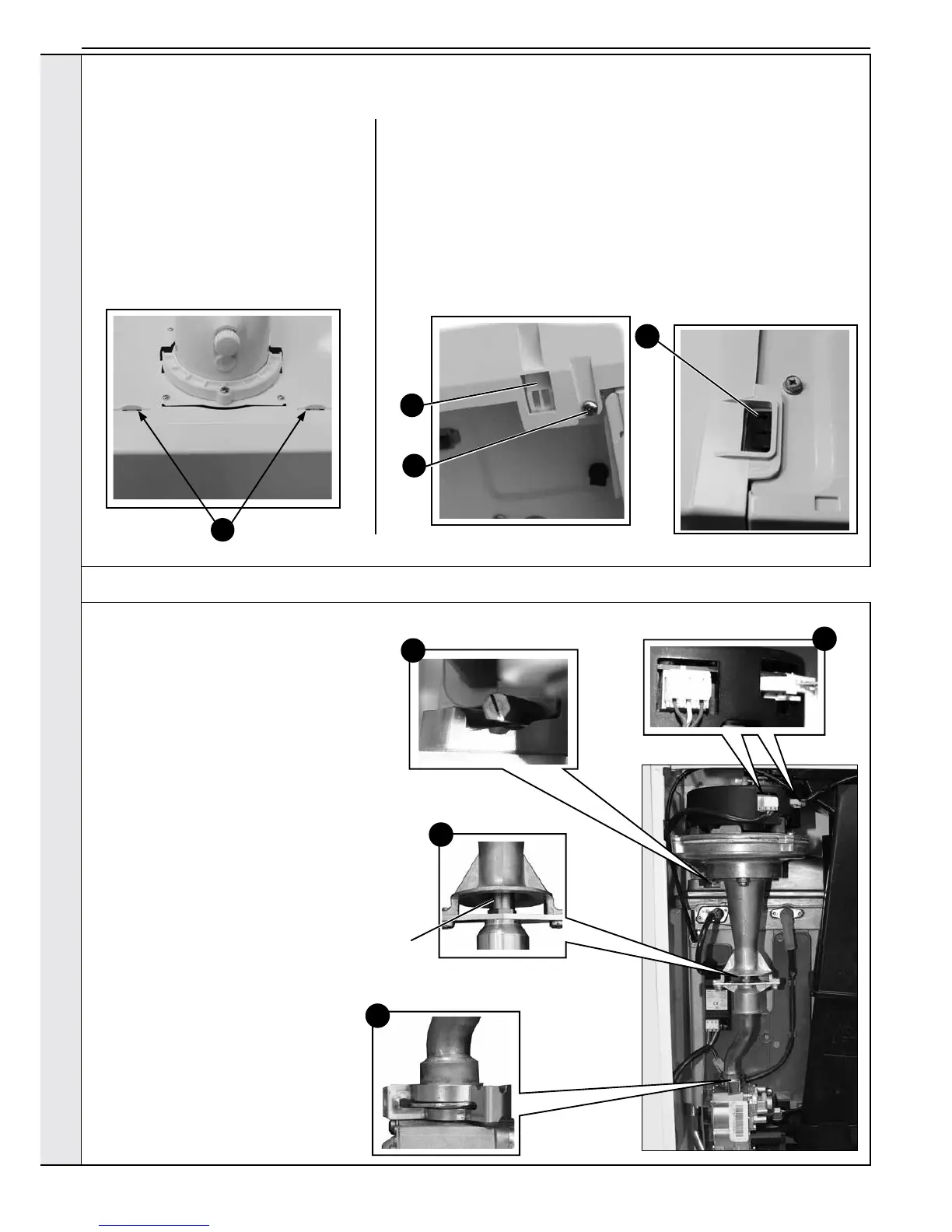

3.2 BOILER TOP POD DOOR & FRONT PANEL REMOVAL / REPLACEMENT

POD DOOR

1. Squeeze the two tabs forward and lift the

pod door upwards to remove.

2. Replace and ret in reverse order.

3.3 FAN AND VENTURI ASSEMBLY REMOVAL AND CLEANING

1. Disconnect the electrical leads from

the fan.

2. Remove the clip from the gas control

valve outlet and ease the pipe

upwards, rotate and then ease down to

remove.

3. Remove the extended nut on the fan

mounting bracket.

4. Lift off fan and venturi assembly.

5. Inspect the injector for blockage or

damage.

6. Inspect fan outlet sealing gasket and

replace if necessary.

Injector

FRONT PANEL REMOVAL

1. Loosen the two screws retaining the front panel.

2. Pull the two clips down to disengage and pull panel forward and upward

and remove.

FRONT PANEL REPLACEMENT

3. Hook the panel onto the top retaining clips.

4. Push the panel until the 2 bottom spring clips engage ensuring the 3

control knobs line up with the holes in the front panel.

5. Re-tighten the two retaining screws.

view from bottom of boiler

view from top of boiler
