17
Mexico Super RS 3/100 & 3/125 - Installation

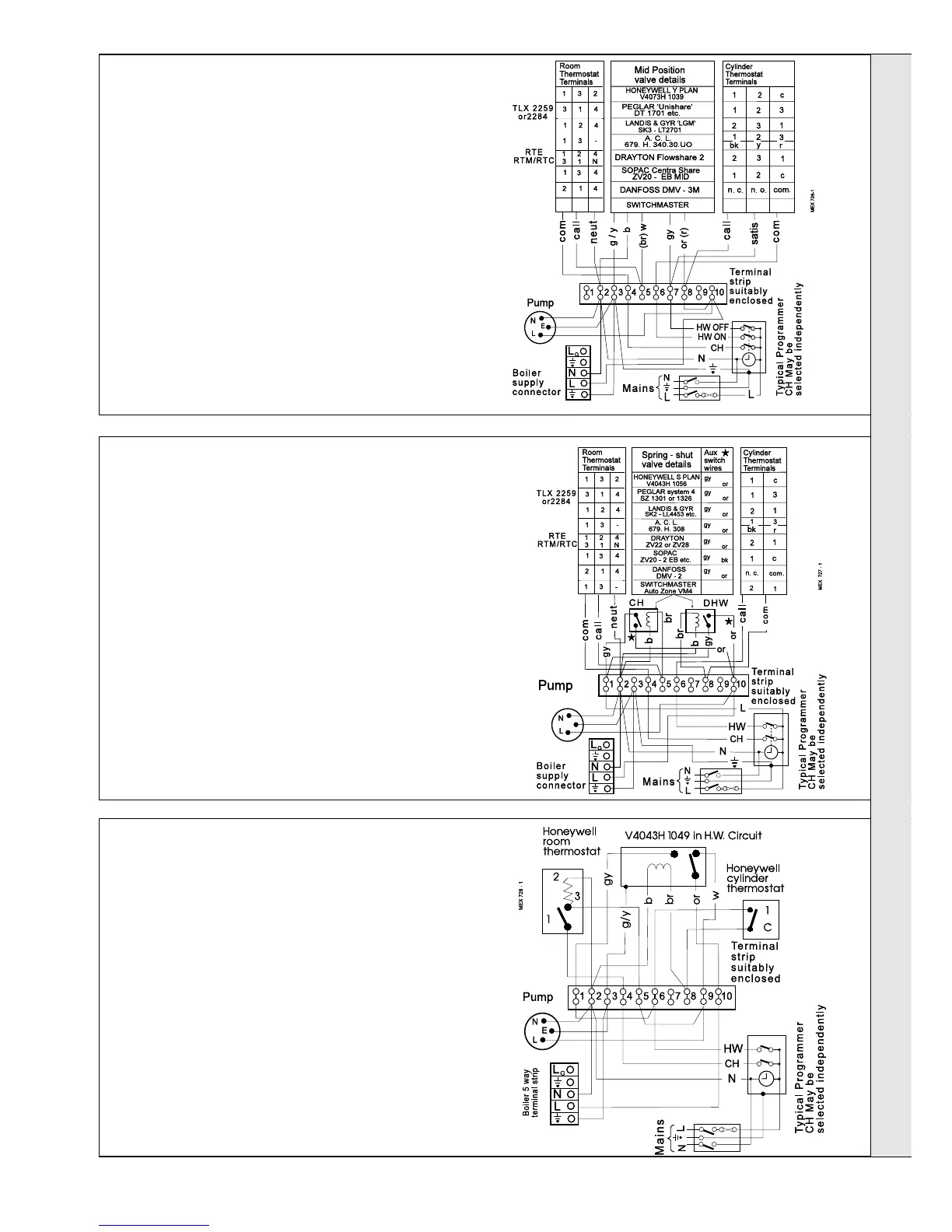

18 MID POSITION VALVE
Notes.
1. Some earth wires are omitted for clarity. Ensure proper earth
continuity when wiring.
2. Numbering of terminals on thermostats is specific to the
manufacturer indicated.
3. This is a fully controlled system - set the boiler thermostat to
maximum.
4. 'Switchmaster Midi' is similar in operation but the wiring differs
slightly; see manufacturer's literature.
Pumped only
19 TWO SPRING CLOSED VALVES
Notes.
1. Some earth wires are omitted for clarity. Ensure proper earth
continuity when wiring.
2. Numbering of terminals on thermostats is specific to the
manufacturer.
3. This is a fully controlled system - set the boiler thermostat to
maximum.
4. 'Switchmaster Autozone' has grey and orange auxiliary switch
leads but the GREY (NOT the orange) wire must be connected to
the incoming live supply.
Pumped only
20 HONEYWELL 'C' PLAN
Notes.
1. Some earth wires are omitted for clarity. Ensure
proper earth continuity when wiring
2. Numbering of terminals on thermostats is specific
to the manufacturer.
LEGEND
w white
r red
bk black
br brown
INSTALLATION
INSTALLATION
Gravity HW & Pumped CH
LEGEND
b blue
bk black
LEGEND
b blue
bk black
br brown
r red
w white
or orange
y/g yellow/green
gy grey
or orange
b blue
gy grey
y/g yellow/green
br brown
r red
or orange
w white
gy grey
y/g yellow/green
