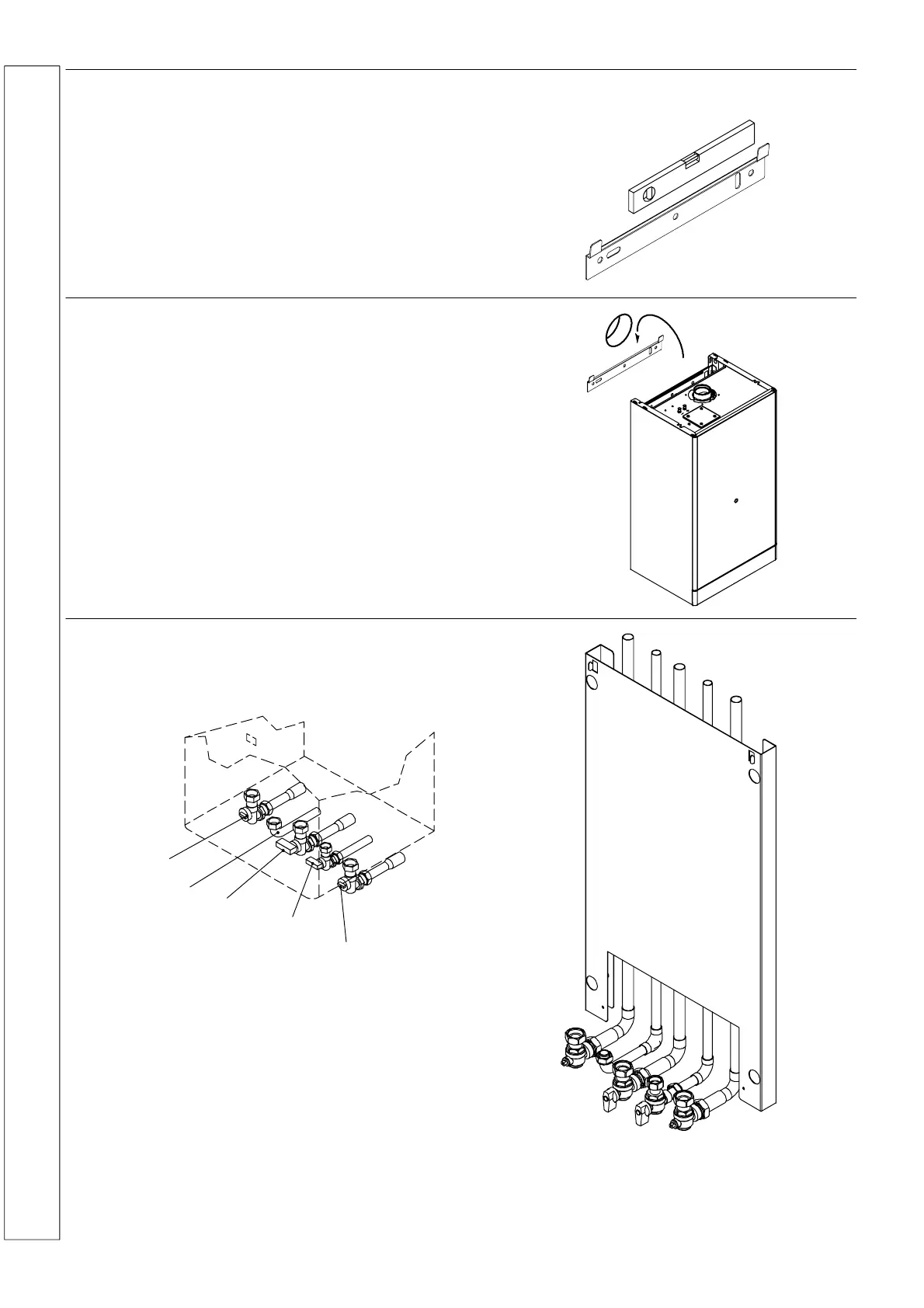

16 FITTING THE WALL
MOUNTING PLATE
Refer to frame 18 for service connections.
Fit the wall mounting plate
Directly to the wall
F Offer up wall mounting plate.
F Screw through the fixing holes using 3 off no. 14x2”
screws (not provided).
F Check alignment with spirit level.
F Tighten screws.
17 MOUNTING THE BOILER
Lift the boiler onto the wall mounting plate locating the bar at
the rear of the back panel assembly into the bracket.
As added protect ion, the boiler should be lifted with the lower
polystyrene packaging in place.
Lower the boiler into position.
Remove the lower packaging. Remove the front and side
panels (refer to frame 21) and strip off the protective coating.
The panels may be placed to one side and re---fitted when the
installation is complete.
Fit the hor izontal flue system referring to the instructions
contained with the kit.
Make good the internal wall surface using the seal provided.
18 CONNECTIONS
Fit the service valves, washers and tail pipes as shown.
Central Heating flow
Domestic hot
water outlet *
Gas inlet
Domestic cold
water inlet *
Central Heating return
* Mini C24, Mini C28 and Mini C32 only
Connect to the tail pipes by proprietory fittings.
The pipework may be directed down or through the rear wall
as required.
The pipework may be directed upwards by using an optional
additional frame available in separate box. See illustration for
upward pipework routing
Mini C shown
