INSTALLATION
Project Heat - Installation and Servicing
13

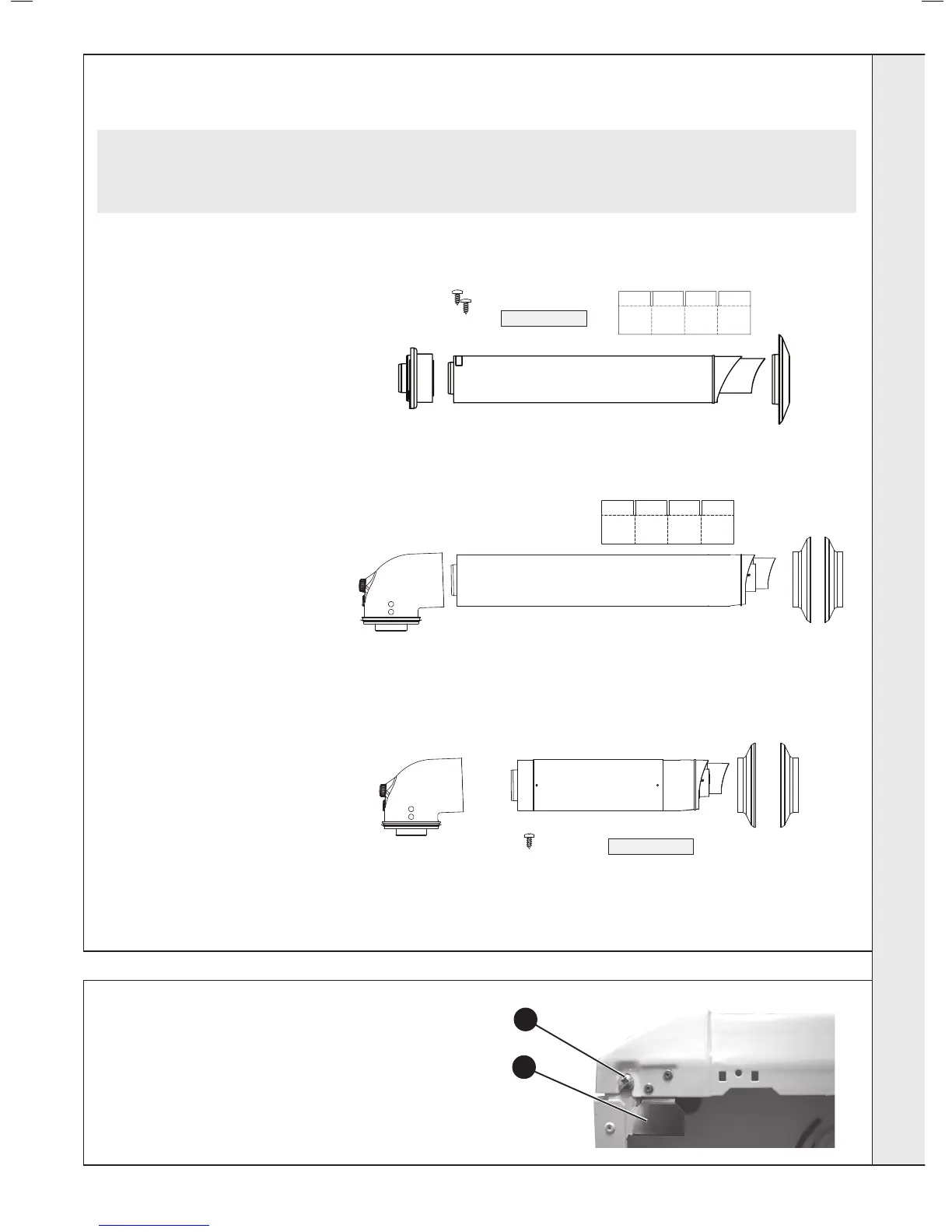

FRONT PANEL REMOVAL
1. Loosen the 2 screws retaining the front panel.
2. Pull the two spring clips downwards to disengage.
3. Pull the front panel forward and upwards to remove.
1
2
12 UNPACKING....CONT’D

A Telescopic ue terminal
B Flue turret
C Wall seal (black)
D Screw
E Sealing Tape
F Wall Seal (White)
D
C
A
E
F
B

A Flue terminal
B Flue turret
C Wall Seal (white)
D Wall Seal (black
E Cutting Aid
A
B
CE
D

A Plastic Connector
B Flue Terminal
C Rubber terminal wall seal
D 2 x Self Tapping Screws
E Sealing Tape
F Cutting Aid
B
A
F
C
D
E
Note. This ue system incorporates a removable ue outlet nose that utilises a push t location system. This enables the
installation of deector, high level or balcony outlet ue kits without the removal of the whole ‘B’ pack terminal. The appliance
must not be operated without the desired outlet nose correctly tted in place.
Note. Location dimples must be aligned with terminal mounting frame.
