Solar Thermal - Installation and Servicing
6

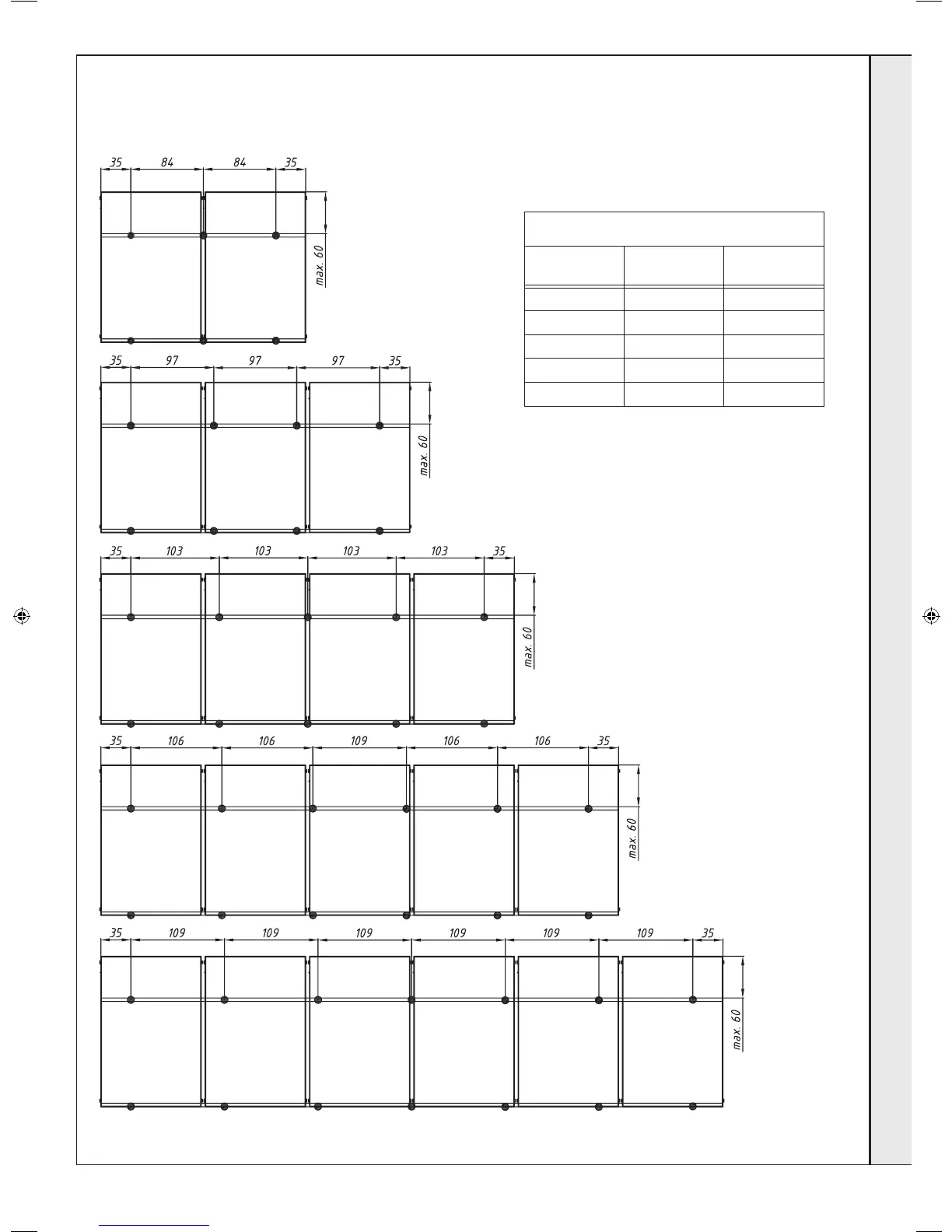

SUGGESTION FOR ATTACHMENT POINTS
Additional mounting structures must be provided in
areas with high snow and wind loads!
(Observe DIN 1055 or country-specific regulations)
•.....Atachment points
Collector Vertical
Collectors Total length
Atachment
points
2 239cm 6
3 361cm 8
4 482cm 10
5 603cm 12
6 724cm 14
ASSEMBLY
