Solar Thermal - Installation and Servicing
GENERAL
2
5
7
9
12
15
L/MIN
bar
6
0
2
4
?C
0
20
40
60
80
100
120120
100
80
60
40
20
0
?C
Drain
Sun
Solar
Cylinder
Twin Line
Pump
Station
Expansion
Vessel
*Solar
Cont-
ainer
Safety Relief
Valve / Pressure
Gauge Assembly
Solar
Collector
Panel
T1
Solar
Collector Sensor
T2 Solar
Cylinder Sensor
sol8618-1
Hot Water to Supply
Back Up
from Boiler or
Immersion Heater
Solar
Controller EC1
*Important: solar fluid container should be manufactured from a material
capable of withstanding the high temperatures at which solar fluid operates.

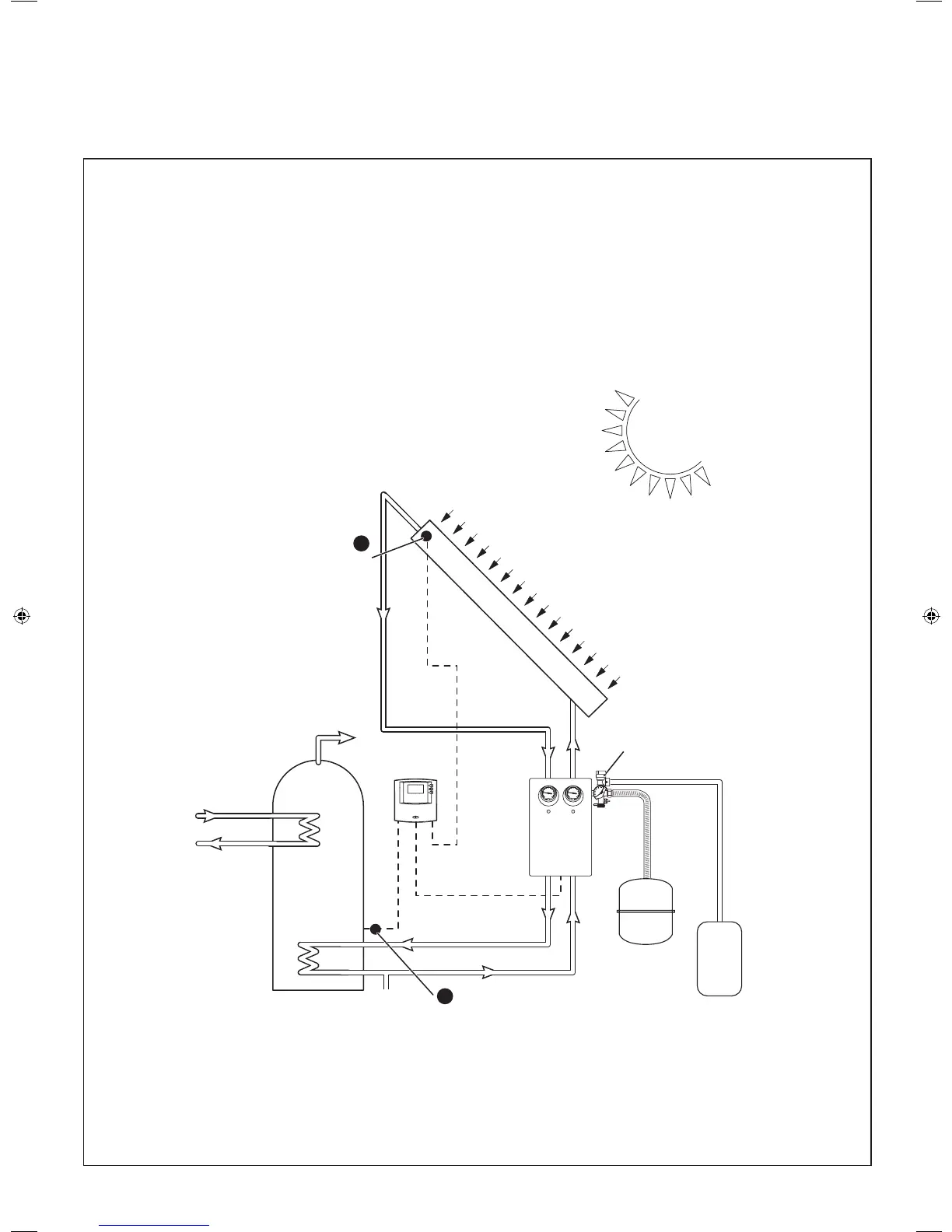

1A INDIRECT PRESSURISED SOLAR CIRCUIT
The Ideal Solar System features high performance solar panel collectors with highly advanced features. The collector has been
awarded the Solar Keymark, the EUs quality mark for solar collectors. The collectors are mounted on a fast-to-t frame and a solar
pump station is also supplied to provide all the safety features required for a pressurised circuit. The Ideal Solar Controller EC1
ensures efcient use of the available solar energy at any given time and features several extra functions.
INSULATION
Exposed pipe work should be insulated according to the high temperatures that the collectors are able to generate. This should be high
temperature Armalfex or similar grade.
Suitable insulation is available from Armacell UK Ltd., Mars Street, Oldham, Lancashire OL9 6LY.
