INSTALLATION
Solar Thermal - Installation and Servicing
31
IN ROOF MOUNTING (TS 8001) - MOUNTING SYSTEM 45
O
ELEVATION

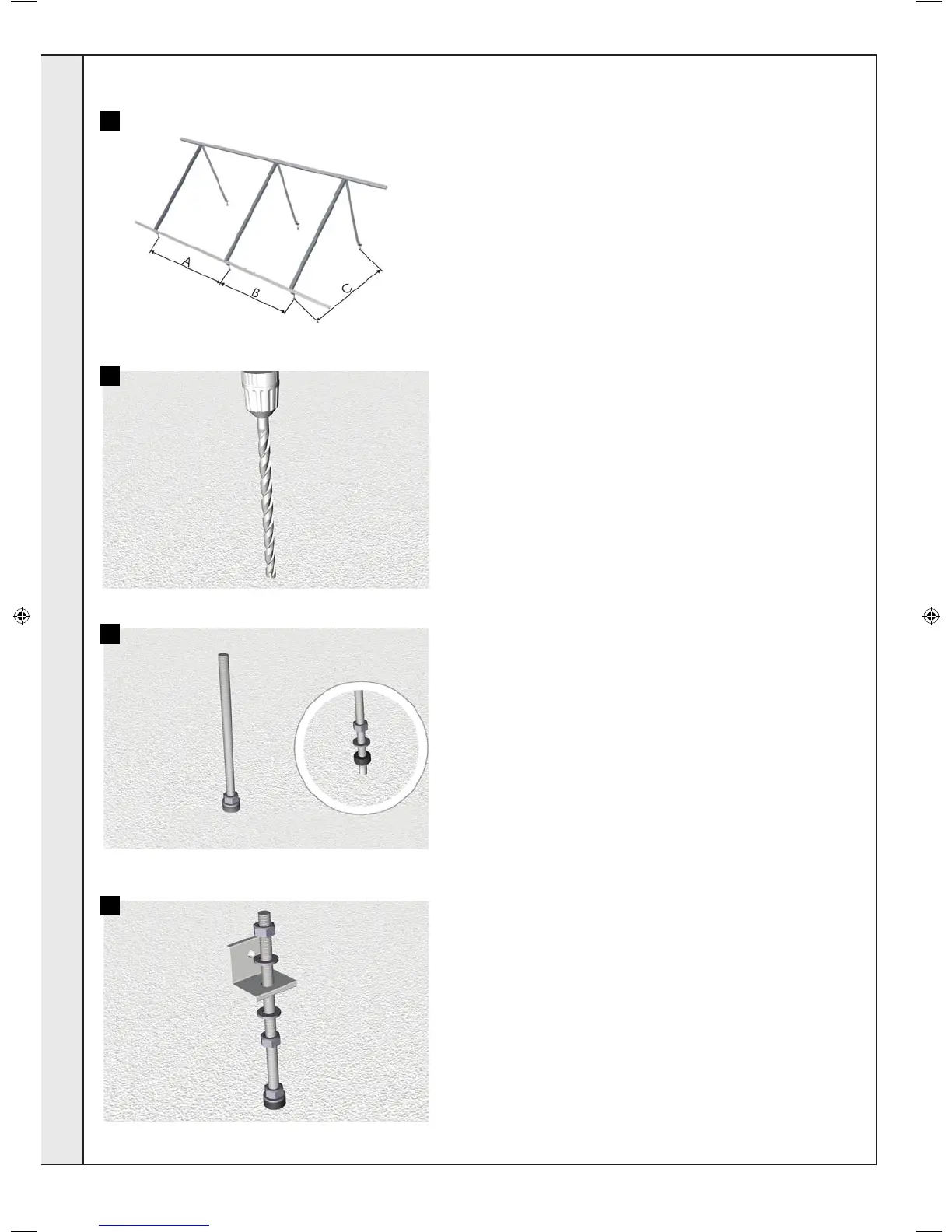

1. Measurement C = 148cm (A/B see previous side)
2. Drill holes in foundation / wood Ø 8mm, concrete as required
3. Attach the rubber seal, screw it in and then fasten
(minimum screw depth ≥ 100mm)
Order: rubber seal – washer – nut
4. Align the attachment brackets at the same height and fasten
Order: nut – washer – attachment bracket – washer – nut
1
2
3
4
INSTALLATION
General Note: Points 9,10,11,16 and 17 of these instructions only apply
when mounting more than two collectors!
207786-2.indd 36 16/02/2012 11:26:15
