2: MODULE SPECIFICATIONS
« FC4A MICROSMART USER’S MANUAL » 2-21

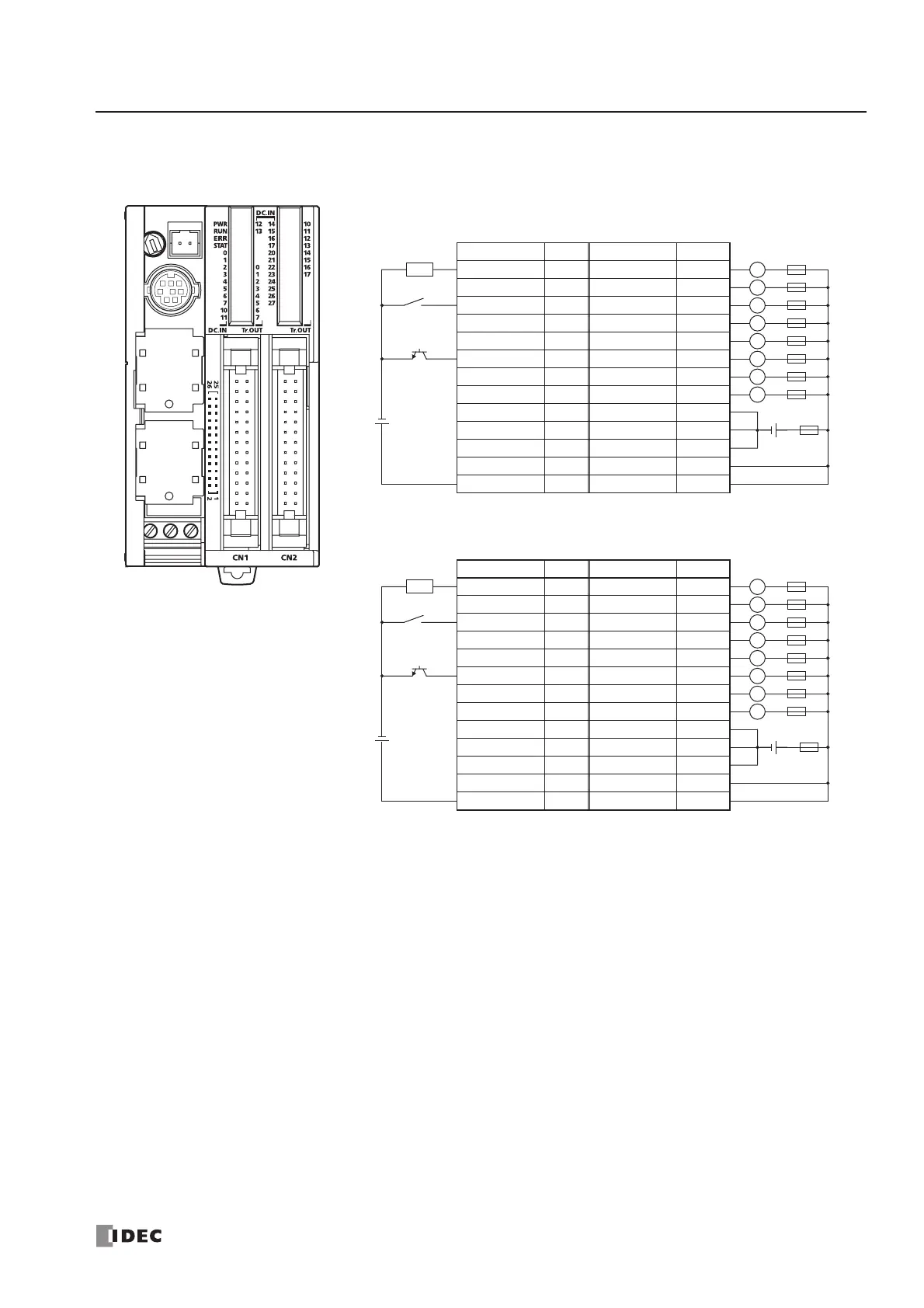

FC4A-D40K3 (40-I/O Transistor Sink Output Type CPU Module)
Applicable Connector: FC4A-PMC26P (not supplied with the CPU module)
CN1
Terminal No. Input Terminal No. Output
26 I0 25 Q0
24 I1 23 Q1
22 I2 21 Q2
20 I3 19 Q3
18 I4 17 Q4
16 I5 15 Q5
14 I6 13 Q6
12 I7 11 Q7
10 I10 9 COM(–)
8 I11 7 COM(–)
6 I12 5 COM(–)
4 I13 3 +V
2 COM 1 +V
Source Input Wiring
+
–
+
–
2-wire Sensor
24V DC
NPN
Sink Output Wiring
L
Fuse
L
L
+–
L
L
L
L
Load
L
Fuse
CN2
Terminal No. Input Terminal No. Output
26 I14 25 Q10
24 I15 23 Q11
22 I16 21 Q12
20 I17 19 Q13
18 I20 17 Q14
16 I21 15 Q15
14 I22 13 Q16
12 I23 11 Q17
10 I24 9 COM(–)
8 I25 7 COM(–)
6 I26 5 COM(–)
4 I27 3 +V
2 COM 1 +V
+
–
+
–
2-wire Sensor
24V DC
NPN
L
Fuse
L
L
+–
L
L
L
L
Load
L
Fuse
• Terminals on CN1 and CN2 are not connected together internally.
• COM(–) terminals are connected together internally.
• COM and COM(–) terminals are not connected together internally.
• +V terminals are connected together internally.
• Connect a fuse appropriate for the load.
• For wiring precautions, see pages 3-13 through 3-17.
