2: MODULE SPECIFICATIONS
2-68 « FC4A MICROSMART USER’S MANUAL »

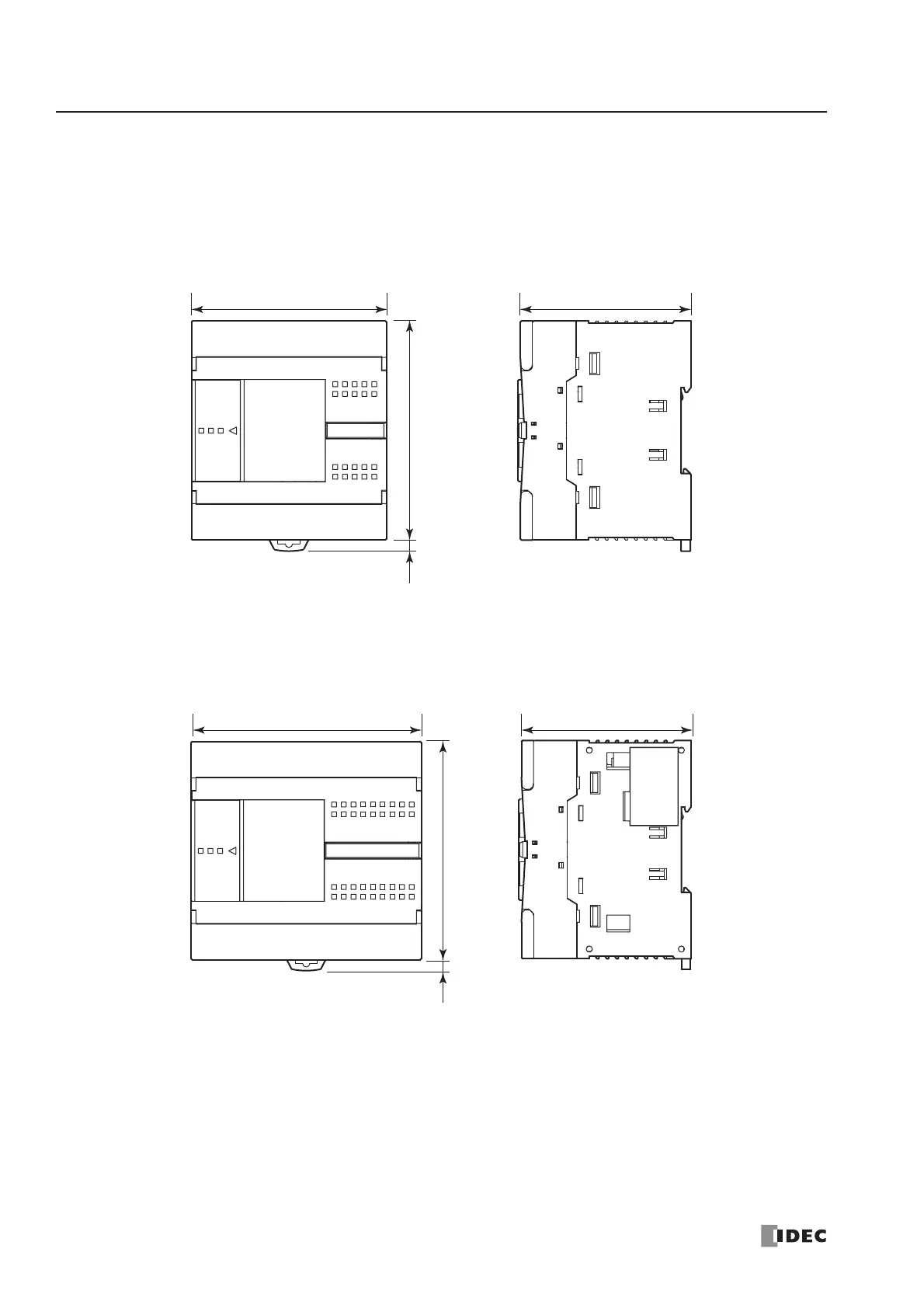

Dimensions
All MicroSmart modules have the same profile for consistent mounting on a DIN rail.
CPU Modules
FC4A-C10R2, FC4A-C10R2C, FC4A-C16R2, FC4A-C16R2C
FC4A-C24R2, FC4A-C24R2C
80.0
90.04.5*
70.0
*8.5 mm when the clamp is pulled out.
*8.5 mm when the clamp is pulled out.
95.0 70.0
90.04.5*
All dimensions in mm.
