2: MODULE SPECIFICATIONS
2-24 « FC4A MICROSMART USER’S MANUAL »

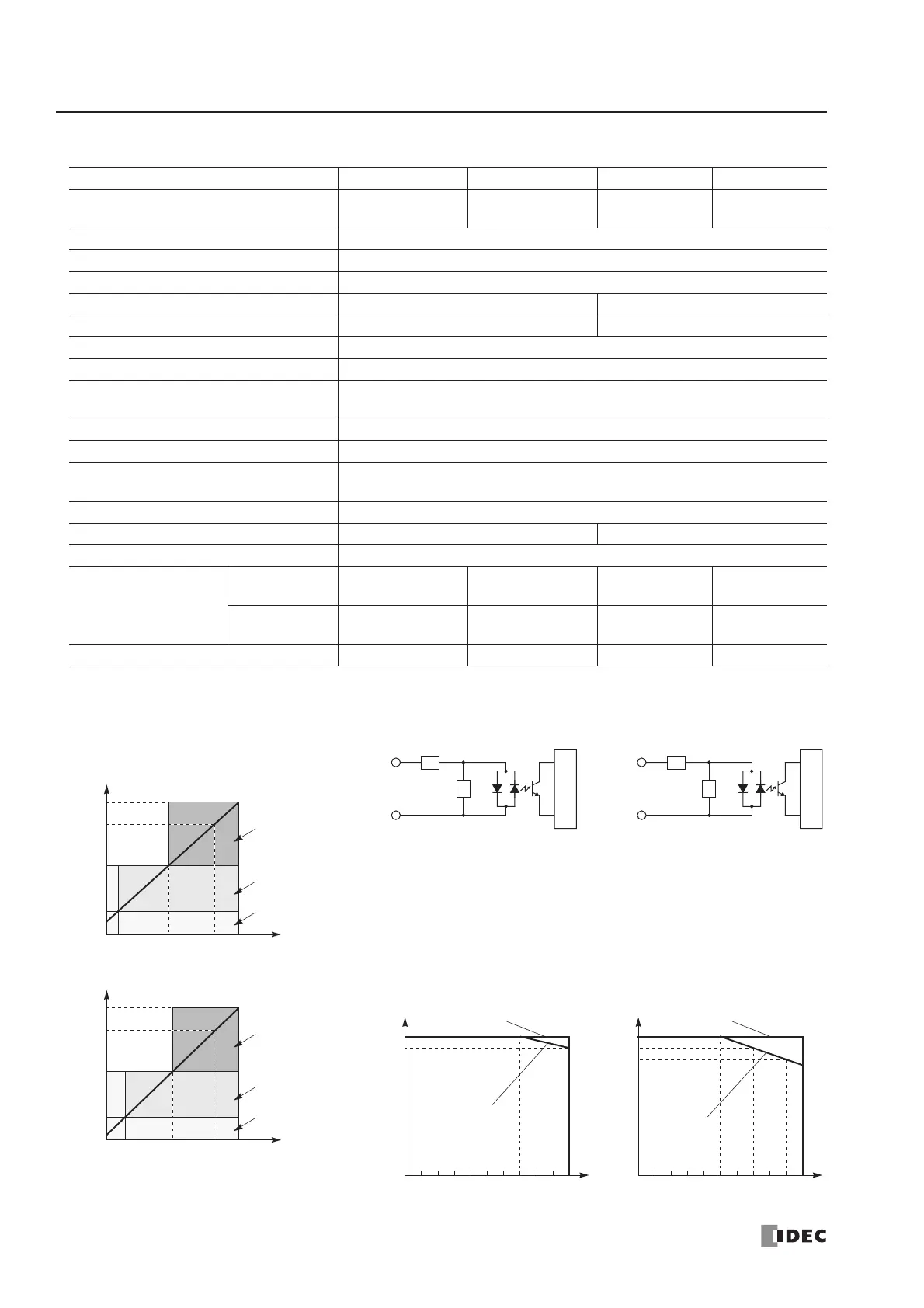

DC Input Module Specifications
Type No. FC4A-N08B1 FC4A-N16B1 FC4A-N16B3 FC4A-N32B3
Input Points and Common Lines
8 points in 1
common line
16 points in 1
common line
16 points in 1
common line
32 points in 2
common lines
Terminal Arrangement See Input Module Terminal Arrangement on pages 2-26 through 2-28.
Rated Input Voltage 24V DC sink/source input signal
Input Voltage Range 20.4 to 28.8V DC
Rated Input Current 7 mA/point (24V DC) 5 mA/point (24V DC)
Input Impedance 3.4 kΩ 4.4 kΩ
Turn ON Time (24V DC) 4 ms
Turn OFF Time (24V DC) 4 ms
Isolation
Between input terminals: Not isolated
Internal circuit: Photocoupler isolated
External Load for I/O Interconnection Not needed
Signal Determination Method Static
Effect of Improper Input Connection
Both sinking and sourcing input signals can be connected. If any input
exceeding the rated value is applied, permanent damage may be caused.
Cable Length 3m (9.84 ft.) in compliance with electromagnetic immunity
Connector on Mother Board MC1.5/10-G-3.81BK (Phoenix Contact) FL20A2MA (Oki Electric Cable)
Connector Insertion/Removal Durability 100 times minimum
Internal Current Draw
All Inputs ON
25 mA (5V DC)
0 mA (24V DC)
40 mA (5V DC)
0 mA (24V DC)
35 mA (5V DC)
0 mA (24V DC)
65 mA (5V DC)
0 mA (24V DC)
All Inputs OFF
5 mA (5V DC)
0 mA (24V DC)
5 mA (5V DC)
0 mA (24V DC)
5 mA (5V DC)
0 mA (24V DC)
10 mA (5V DC)
0 mA (24V DC)
Weight 85g 100g 65g 100g
I
npu
t
I
n
t
erna
l
Ci
rcu
it
Input Usage Limits
When using the FC4A-N16B1 at 55°C in the normal mounting direction, limit
the inputs which turn on simultaneously along line (1). At 45°C, all inputs
can be turned on simultaneously at 28.8V DC as indicated with line (2).
When using the FC4A-N16B3 or -N32B3 at 55°C, limit the inputs which turn
on simultaneously on each connector along line (3). At 30°C, all inputs can
be turned on simultaneously at 28.8V DC as indicated with line (4).
When using the FC4A-N08B1, all inputs can be turned on simultaneously at
55°C, input voltage 28.8V DC.
FC4A-N08B1 and FC4A-N16B1 FC4A-N16B3 and FC4A-N32B3
Input
Internal Circuit
COM
3.3 kΩ
Input
Internal Circuit
COM
4.3 kΩ
Input Voltage (V DC)
28.8
0
100
Input Simultaneous ON Ratio (%)
26.4
(2) 45°C
(1) 55°C
700
Input Voltage (V DC)
28.8
0
100
Input Simultaneous ON Ratio (%)
26.4
(4) 30°C
90
(3) 55°C
700
24.0
50
I
npu
t
O
pera
ti
ng
R
ange
The input operating range of the Type 1
(IEC 61131-2) input module is shown
below:
FC4A-N16B3 and FC4A-N32B3
Transition
OFF Area
Input Voltage (V DC)
28.8
15
5
0
1.2 8.4
Input Current (mA)
ON Area
Area
7.04.2
24
FC4A-N08B1 and FC4A-N16B1
Transition
OFF Area
Input Voltage (V DC)
28.8
15
5
0
0.9 6.4
Input Current (mA)
ON Area
Area
5.33.2
24
