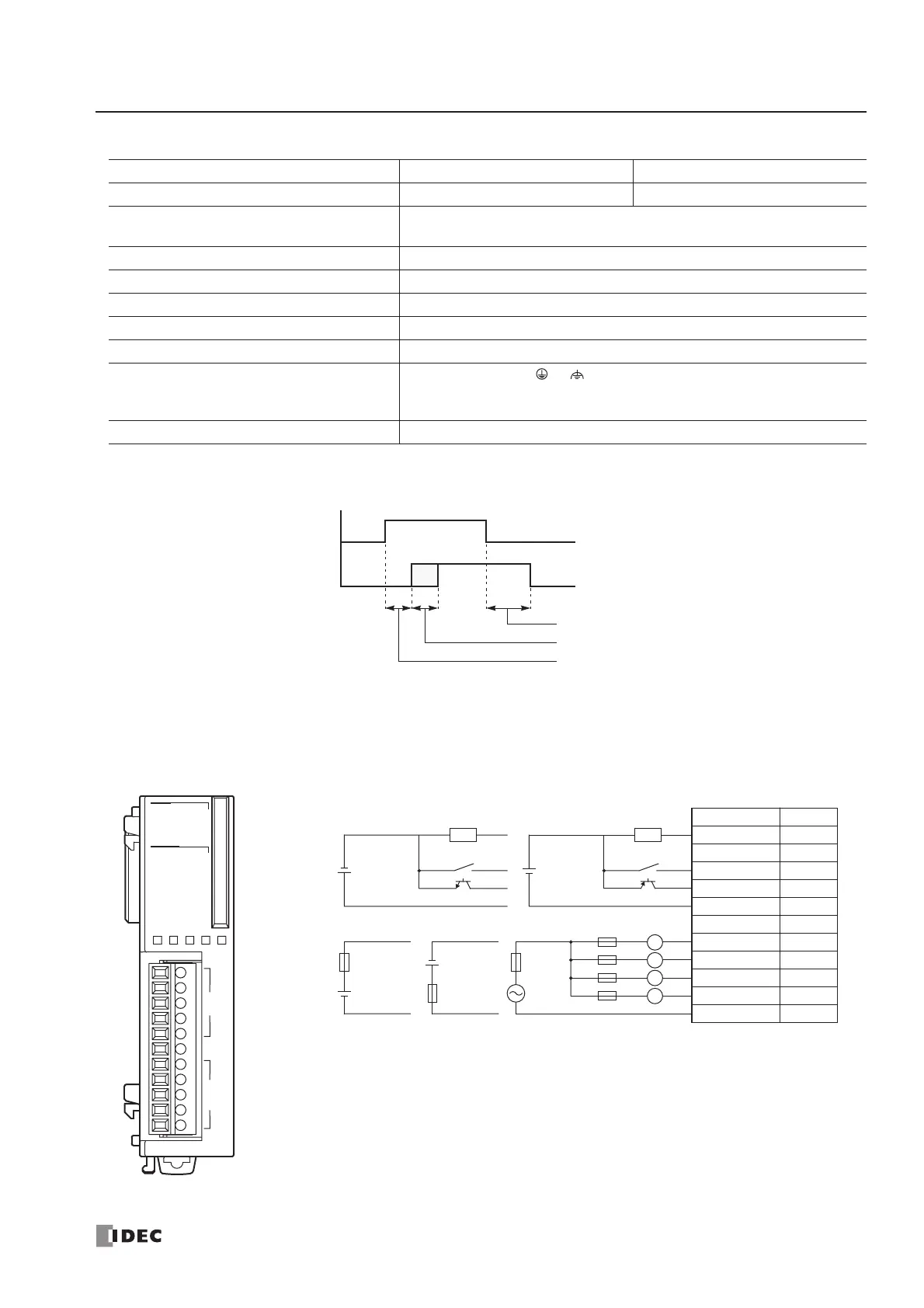

2: MODULE SPECIFICATIONS
« FC4A MICROSMART USER’S MANUAL » 2-41
Relay Output Specifications (Mixed I/O Module)
Output Delay
Mixed I/O Module Terminal Arrangement and Wiring Diagrams
FC4A-M08BR1 (Mixed I/O Module) — Screw Terminal Type
Applicable Terminal Block: FC4A-PMT11P (supplied with the mixed I/O module)
Type No. FC4A-M08BR1 FC4A-M24BR2
Output Points and Common Lines 4 NO contacts in 1 common line 8 NO contacts in 2 common lines
Maximum Load Current
2A per point
7A per common line
Minimum Switching Load 0.1 mA/0.1V DC (reference value)
Initial Contact Resistance 30 mΩ maximum
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load (resistive/inductive) 240V AC/2A, 30V DC/2A
Dielectric Strength
Between output and or terminals: 1,500V AC, 1 minute
Between output terminal and internal circuit: 1,500V AC, 1 minute
Between output terminals (COMs): 1,500V AC, 1 minute
Contact Protection Circuit for Relay Output See page 3-15.
Command
Output Relay Status
OFF delay: 10 ms maximum
Chatter: 6 ms maximum
ON delay: 6 ms maximum
ON
OFF
ON
OFF
L
3 COM1
0
1
2
3
0
1
2
3
DC.IN
Ry.OUT
1023
COM0
NC 012
Ry.OUTDC.IN
Terminal No. I/O
0I0
1I1
2I2
3I3
COM0 COM0
NC NC
0Q0
1Q1
2Q2
3Q3
COM1 COM1
Fuse
L
AC
Fuse
Fuse
DC
DC
Load
L
L
+
–
+
–
+
–
Sink Input Wiring
• COM0 and COM1 terminals are not connected together internally.
• For wiring precautions, see pages 3-13 and 3-14.
Fuse
Relay Output Wiring
24V DC
+
–
2-wire Sensor
PNP
+
–
Source Input Wiring
24V DC
+
–
2-wire Sensor
NPN
