5: SPECIAL FUNCTIONS
5-36 « FC4A MICROSMART USER’S MANUAL »

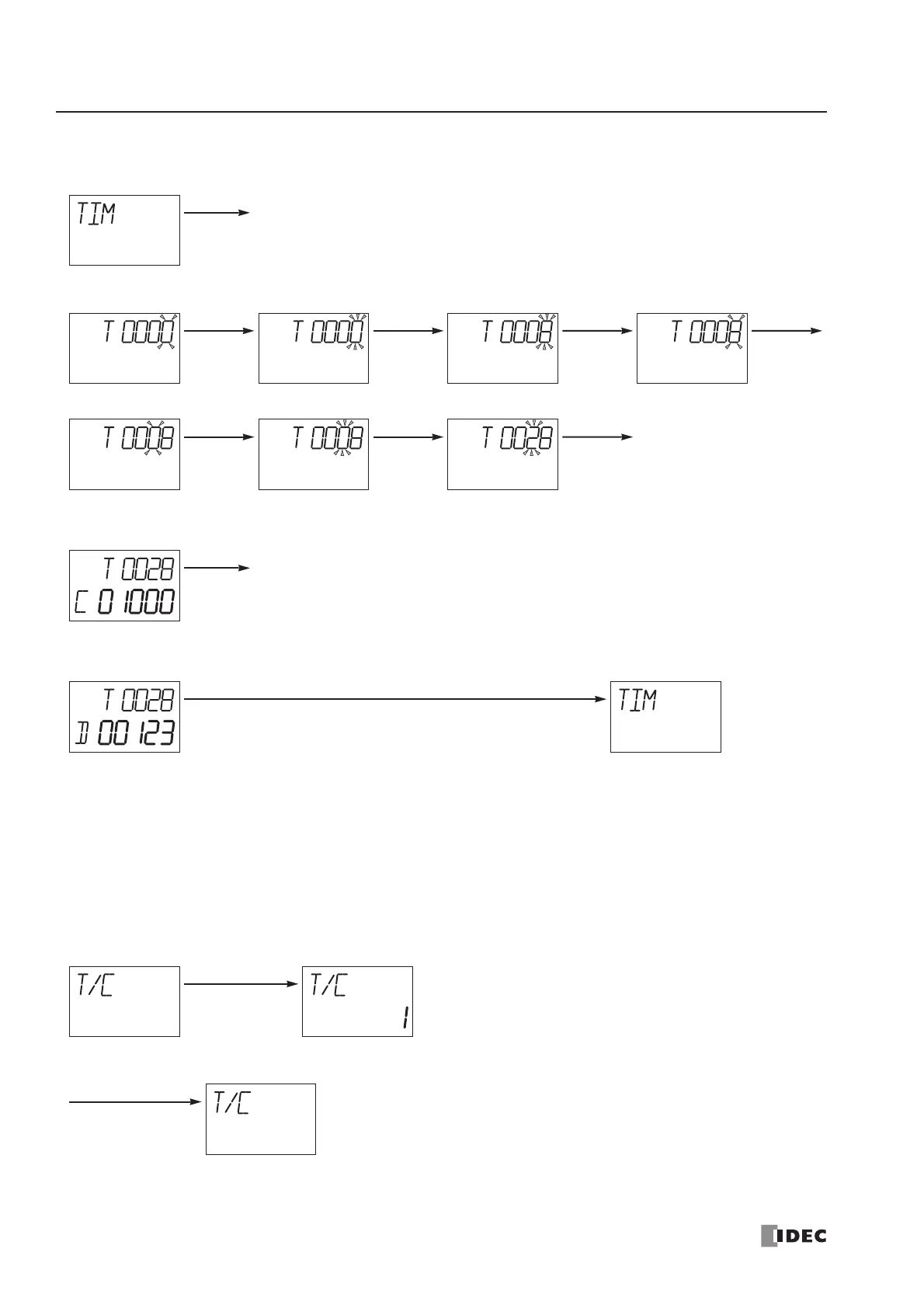

Example: When timer T28 preset value is designated using a data register
1. Select the Timer menu.
2. Select the operand number.
3. The current value of the selected timer number is displayed.
4. The data register number designated as a preset value is displayed.
Confirming Changed Timer/Counter Preset Values
This section describes the procedure for writing changed timer/counter preset values from the MicroSmart CPU module
RAM to the EEPROM. This operation writes the changed preset values of both timers and counters at once.
The changed timer/counter preset values are stored in the MicroSmart CPU module RAM and backed up for 30 days by a
lithium backup battery. If required, the changed preset values can be written to the MicroSmart CPU module EEPROM as
described below. For the data movement in the CPU module, see page 7-13.
1. Select the Timer/Counter Changed Preset Value Confirm menu.
2. Confirm the changed timer/counter preset values, and write the changes from the RAM to the EEPROM.
OK
Go to control
screen.
OK
Slow Flash
Select digit.
▼▼
Quick Flash
Decrement
the value.
ESC ▲
Back to digit
selection.
Shift up one
digit.
Quick Flash Slow Flash
OK
Slow Flash
Select digit.
▲▲
Quick Flash
Increment
the value.
OK
Complete operand selection.
Go to next screen.
Quick Flash
OK
Go to next screen.
Current Value
ESC
Data Register No.
When the preset value is designated using a data register, the data register
number is displayed, and the screen does not change any more.
To return to the Timer menu, press the ESC button.
OK
Display the TIM/CNT
change status.
TIM/CNT change status
0: Unchanged
1: Changed
The Timer/Counter Changed Preset Value Confirm menu is restored.
To abort confirming the changed timer/counter preset values, press the ESC button
instead of the OK button; the Timer/Counter Changed Preset Value Confirm menu is
restored.
OK
Confirm the changed
TIM/CNT preset values.
To Next Page
