Getting started with IDEC SmartRelay
IDEC SmartRelay Manual 9
Text Display
Communication interface
Power supply

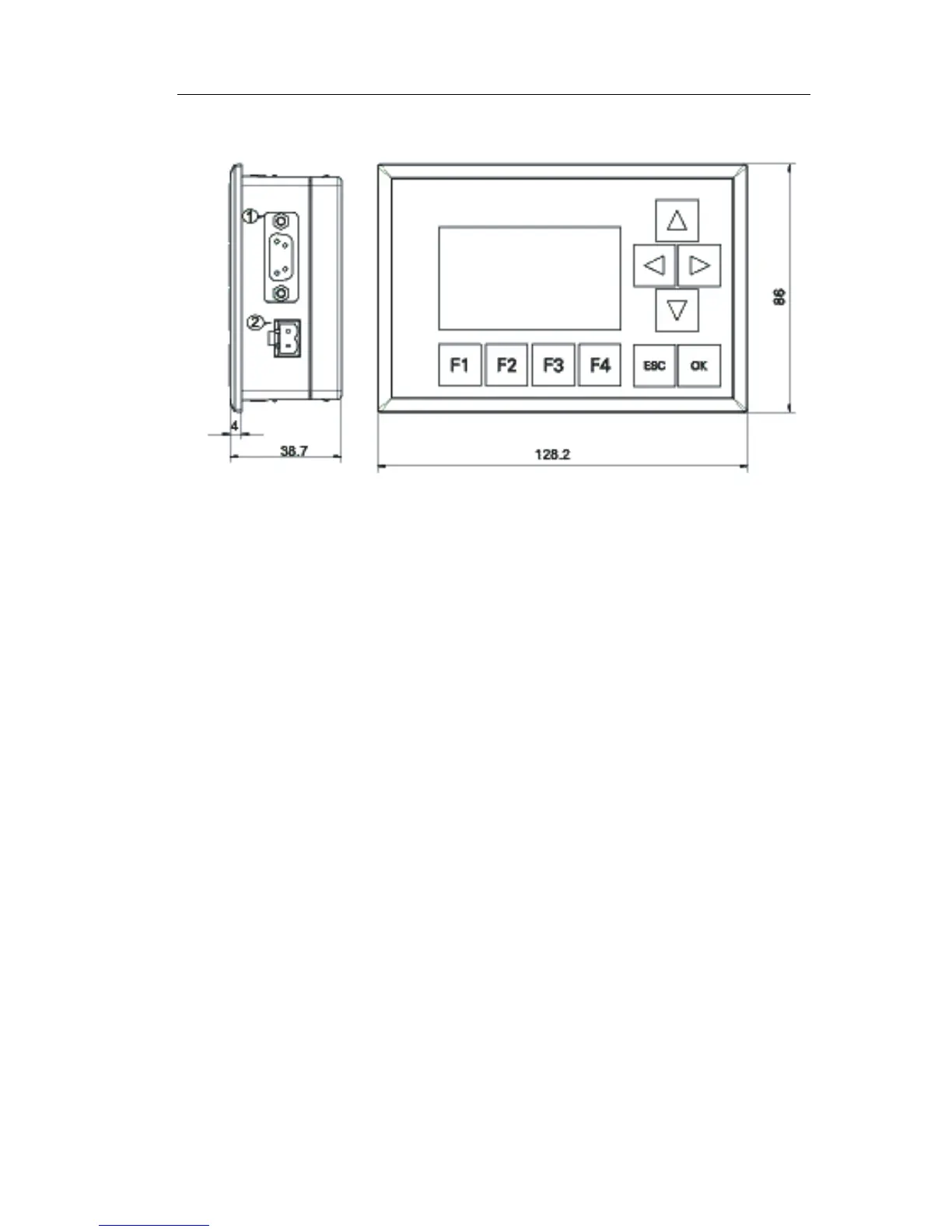

The Text Display includes a wid
er
display area than the
IDEC SmartRelay Display. It includes four programmable
cursor keys, four programmable function keys, and an ESC
and OK key. You use the included Text Display cable to
connect from the communication interface on the right side
of the Text Display to the corresponding interface on the left
side of the IDEC SmartRelay base module.
How to identify the IDEC SmartRelay
The IDEC SmartRelay identifier informs you of various
pr
operties
.
Base module
FL1E-
B: Base module without display
H: Base module with display
Number of Inputs and Outputs
R: Relay output S: Tr. (source) output
C: With clock N: Without clock
D: 24V DC E: 12/24V DC A: 24V AC/DC
B: 100...240V AC C: 100...240V AC/DC
