IDEC SmartRelay memory and battery cartridge (card)
IDEC SmartRelay Manual 253
Removing the memory cartridge, battery cartridge or combined
memory/battery cartridge

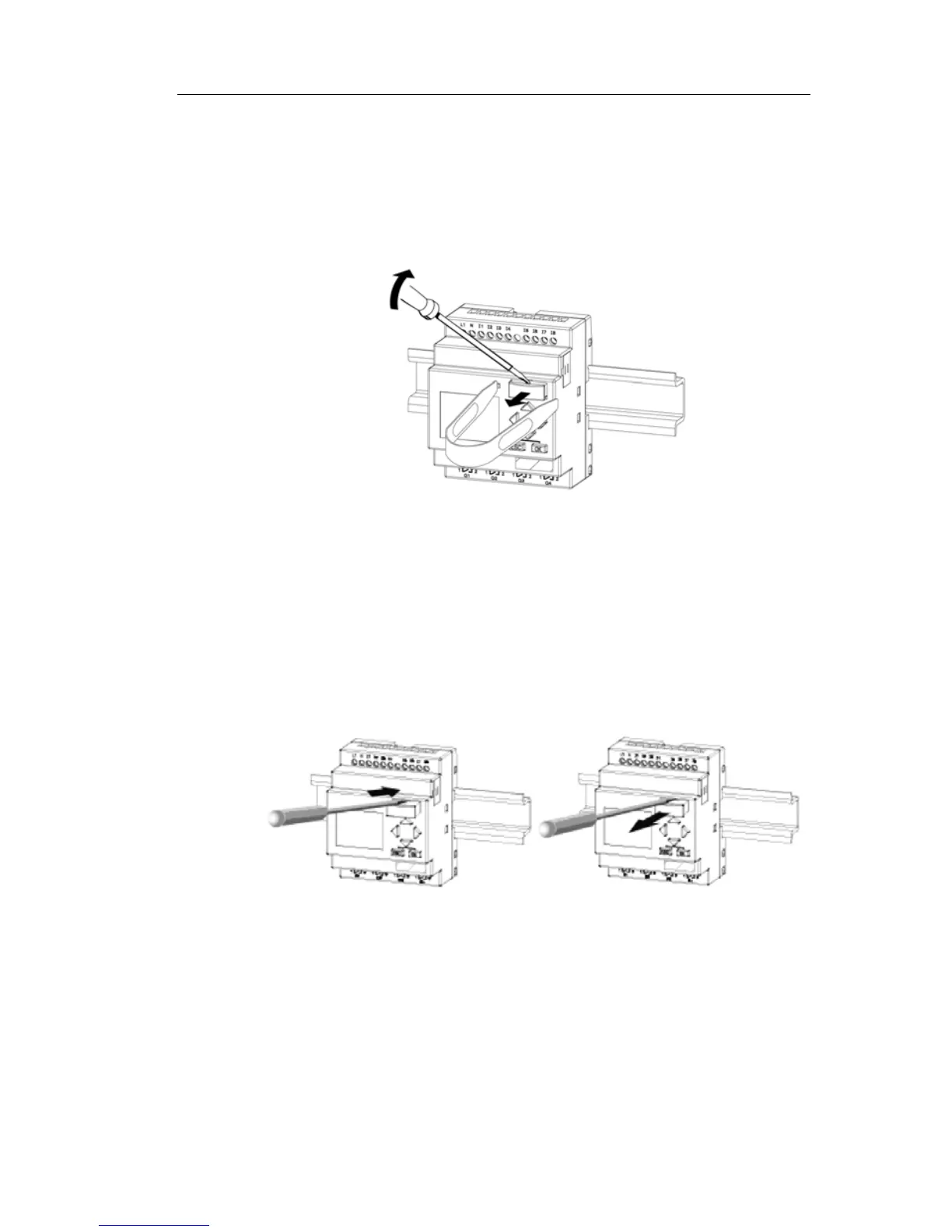

To remove the memory cartridge, carefully insert a
screwdriver with a 3-mm blade into the groove on the upper
end of the card, and lever the module partially out of the slot.
You can now remove the memory cartridge.
1. Carefully insert a screwdriver into the slot at the upper end
of the memory cartridge, and ease it out of the slot a little.
2. Hold the memory cartridge at both sides using the
memory cartridge removal tool (MT-101). and pull the
memory cartridge straight out.
To remove a battery cartridge, or combined memory/battery
cartridge, slide a screwdriver with a 3-mm blade into the slot on
the upper surface of the card until it engages in the back, then
with the screwdriver engaged, pull the card out with your hand.
Inserting a memory cartridge, battery cartridge or combined
memory/battery cartridge
The entry of the memory cartridge, batter
y cartridge and the
combined memory/battery cartridge slot is chamfered on its
bottom right. The edge of the cartridges are chamfered
accordingly. This encoding prevents you from inserting
cartridges the wrong way. Insert the memory cartridge,
battery cartridge or combined memory/battery cartridge into
the slot and push it in until it engages.
