To maintain protection of internal drive controller, your external resistor
should be tted with appropriate insulation.
4-20mA Control Input
4-20mA Control

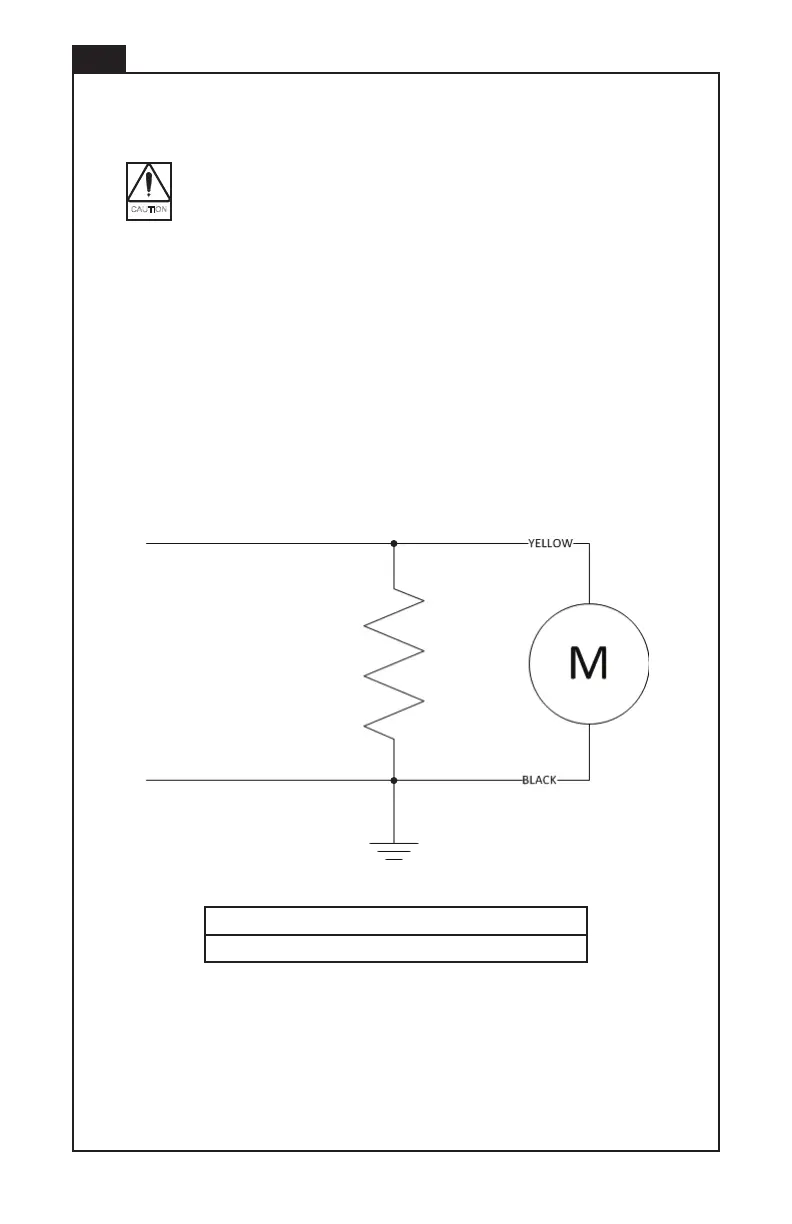

Install a 250 Ohm resistor across the yellow Speed Input and black Common lead wires.
Applying current across this resistor will result in a commanded proportional speed from
the Eagle Drive.
CAUTION
Recommended Resistor
VISHAY P/N PTF65250R00AYBF
