Idex MICROPUMP EagleDrive MS User Manual

19
DOC No: 8540 REV D

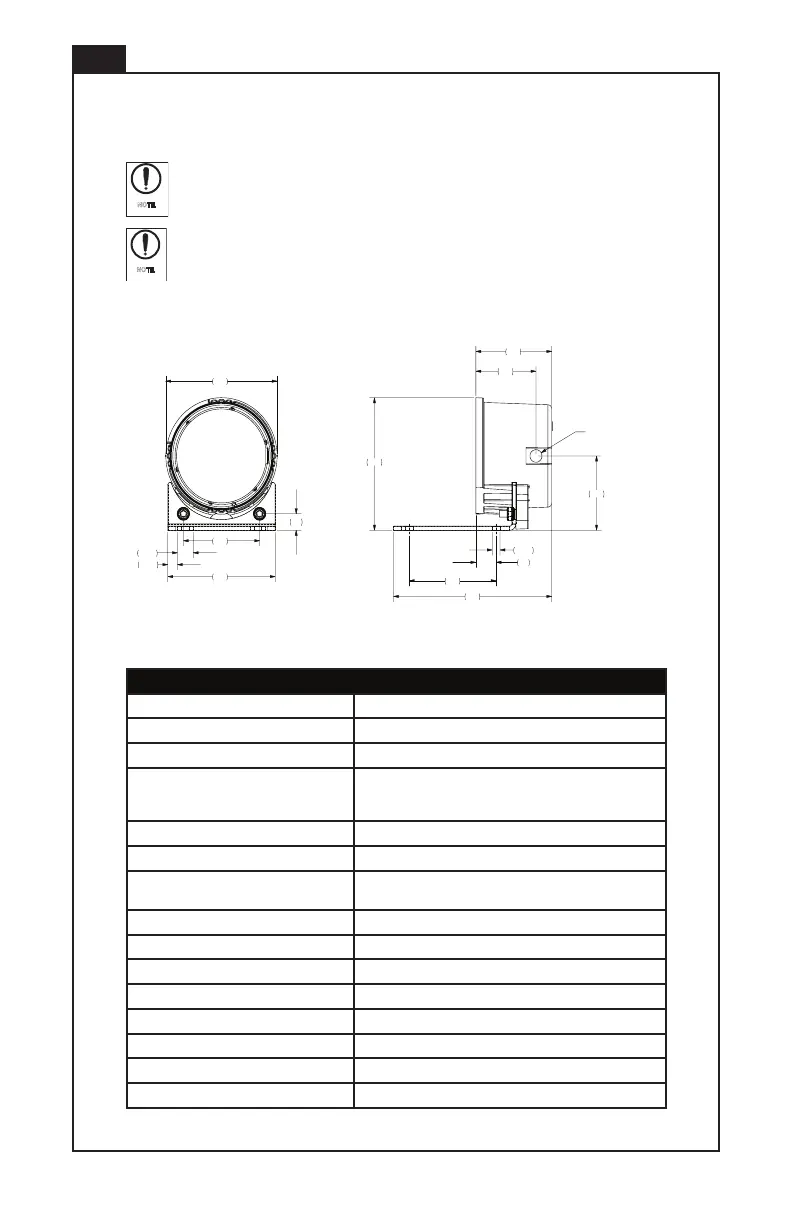

All Dimensions in mm.[inch]
Technical Specication
Not all possible congurations are shown. Contact your local Micropump
distributor or contact Micropump directly for additional versions.
EagleDrive
Model MS
Product Code DEMSE
Speed Range 250 to 10000 rpm
Typical No-Load Speed
(24 VDC Input / 5 VDC Control / 25°C
Ambient)
6000 rpm
Speed @ Rated Torque 3500 rpm @ 70 mNm (10 oz-in)
Input Voltage Range 10 to 38 VDC
Max Full-Load Current @ Nominal Voltage
(25°C Ambient)
2A @ 24 VDC
Speed Control 0 to 5 VDC
Tachometer Out 0 to 5 VDC square wave - 2 pulse per revolution
Thermal Shutdown 135°C
Thermal Restart 120°C
Storage Temperature -40 to +135°C
Maximum Ambient Operating Temperature 85°C at max load
Reversible Yes
Weight 0.3 kg
Model MS
NOTE
NOTE
2.68
1.90
.39
4X .39
4X .24
2.78
3.16
3.95
1.50
CABLE EXIT
1.77
4X .20
1.89
.51
2.17
32
UNLESS OTHERWISE
SPECIFIED:
ALL VIEWS ARE
THIRD-ANGLE
PROJECTION
SOLIDWORKS
1°
A
6DEC2012
P.RODGERS
P.RODGERS
6DEC2012
EAGLE SHORT DRIVE HOUSING
D-1426A
This drawing embodies a proprietary
design owned by Micropump, Inc.
and is submitted under a confidential
relationship. Except for uses expressly
granted in writing, all rights are
reserved by Micropump, Inc.
A Unit of IDEX Corporation.
=
1:2
REFERENCE ASME Y14.5M-1994 FOR THE DIMENSIONING AND
TOLERANCING STANDARD USED ON THIS DRAWING.
REV.
R
SHEET 1 OF 1
A UNIT OF IDEX
CORPORATION
MICROPUMP, INC.
DRAWING SCALE:
B
SIZE
DATE
F-228/REV D 19 OCT 07
PART NUMBER
MATERIAL
UNLESS OTHERWISE SPECIFIED
DRAWN
APPROVED
.005
.015
.030
0.762
ANGLE
0.127
0.381
=
=
=
.XXX
.XX
.X
=
[.X]
=
[.XXX]
[.XX]
TOLERANCES ARE:
DIMENSIONS ENCLOSED BY [ ]
UNLESS OTHERWISE SPECIFIED
FINISHES INDICATED ARE
TOLERANCES ARE:
ARE IN MILLIMETERS:
MAXIMUM VALUES.
DIMENSIONS ARE IN INCHES
PROPRIETARY INFORMATION
DO NOT SCALE DRAWING
APPROVALS
