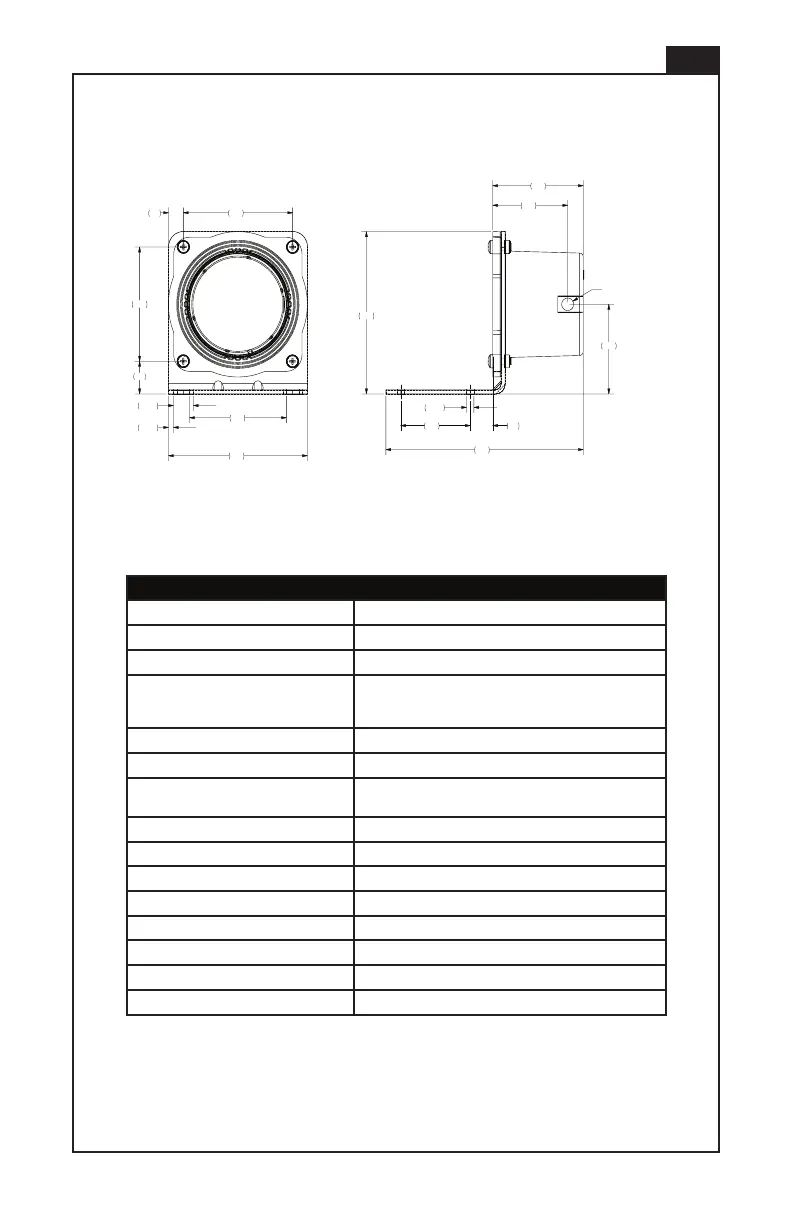

Idex MICROPUMP EagleDrive MS User Manual

20
DOC No: 8540 REV D
EagleDrive
Model EL
Product Code DEELE
Speed Range 250 to 9000 rpm
Typical No-Load Speed
(24 VDC Input / 5 VDC Control / 25°C
Ambient)
5500 rpm
Speed @ Rated Torque 3500 rpm @ 140 mNm (20 oz-in)
Input Voltage Range 10 to 38 VDC
Max Full-Load Current @ Nominal Voltage
(25°C Ambient)
2.9A @ 24 VDC
Speed Control 0 to 5 VDC
Tachometer Out 0 to 5 VDC square wave - 2 pulse per revolution
Thermal Shutdown 135°C
Thermal Restart 120°C
Storage Temperature -40 to +135°C
Maximum Ambient Operating Temperature 85°C at max load
Reversible Yes
Weight 0.5 kg
Model EL
3.50
2.75
2.75
.79
2.44
4X .50
4X .12
.37
4.97
4X .19
1.89
2.28
2.16
CABLE EXIT
3.91
1.75 .57
D-1425A
32
UNLESS OTHERWISE
SPECIFIED:
ALL VIEWS ARE
THIRD-ANGLE
PROJECTION
SOLIDWORKS
1°
A
6DEC2012
P.RODGERS
P.RODGERS
6DEC2012
EAGLE LONG DRIVE HOUSING
D-1425A
This drawing embodies a proprietary
design owned by Micropump, Inc.
and is submitted under a confidential
relationship. Except for uses expressly
granted in writing, all rights are
reserved by Micropump, Inc.
A Unit of IDEX Corporation.
=
1:2
REFERENCE ASME Y14.5M-1994 FOR THE DIMENSIONING AND
TOLERANCING STANDARD USED ON THIS DRAWING.
REV.
R
SHEET 1 OF 1
A UNIT OF IDEX
CORPORATION
MICROPUMP, INC.
DRAWING SCALE:
B
SIZE
DATE
F-228/REV D 19 OCT 07
PART NUMBER
MATERIAL
UNLESS OTHERWISE SPECIFIED
DRAWN
APPROVED
.005
.015
.030
0.762
ANGLE
0.127
0.381
=
=
=
.XXX
.XX
.X
=
[.X]
=
[.XXX]
[.XX]
TOLERANCES ARE:
DIMENSIONS ENCLOSED BY [ ]
UNLESS OTHERWISE SPECIFIED
FINISHES INDICATED ARE
TOLERANCES ARE:
ARE IN MILLIMETERS:
MAXIMUM VALUES.
DIMENSIONS ARE IN INCHES
PROPRIETARY INFORMATION
DO NOT SCALE DRAWING
APPROVALS
