Idex MICROPUMP EagleDrive MS User Manual

9
DOC No: 8540 REV D
The product should be located with the inlet below or even with the liquid level of the uid
supply. The product can be mounted in any position. Ensure that there is adequate space
for operation, inspection and maintenance.
Location
Pump head or adaptor cannot support the weight of the motor. Ensure
the motor is adequately supported by the foundation and/or mounting
bracket.
The foundation must be capable of supporting the combined weight of
the pump and motor and provide a rigid support.

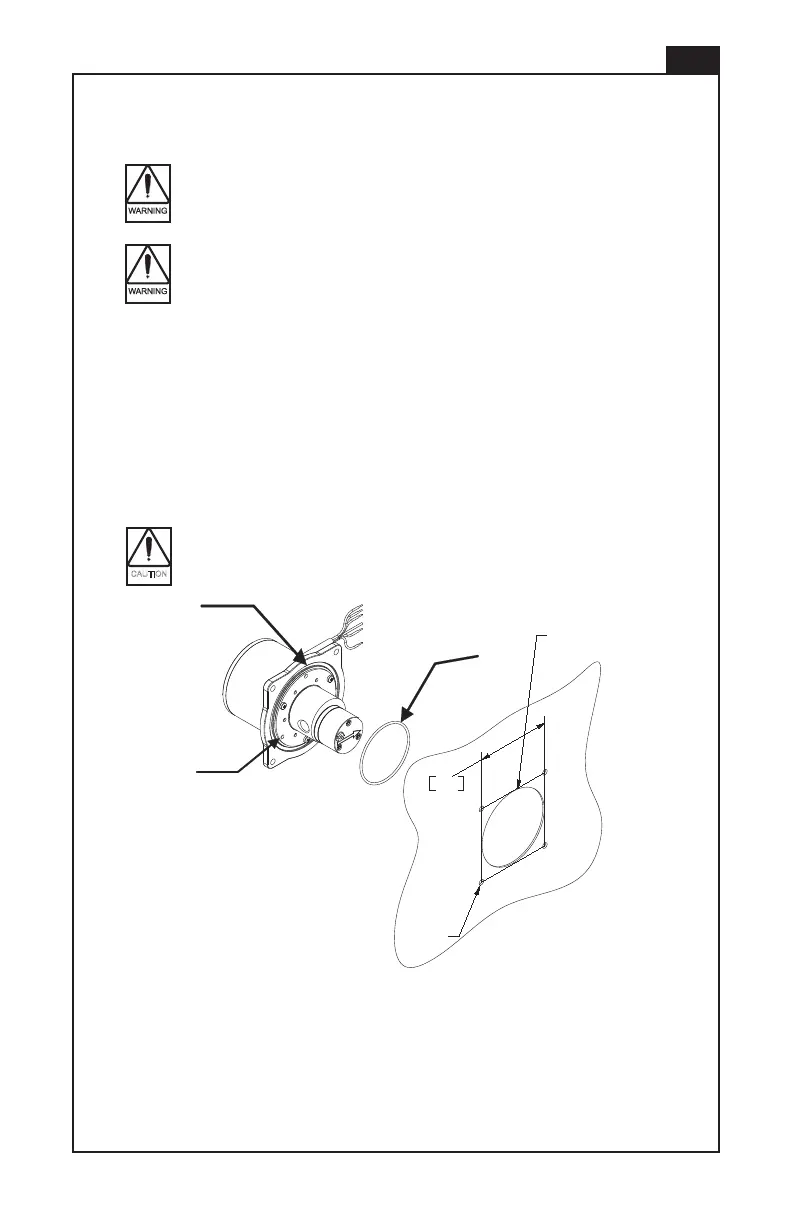

Bulkhead Mounting (EL Model)
If mounting the pump/EagleDrive assembly through a bulkhead, insert the bulkhead
o-ring (1) into the groove in the face of the housing (3). Position the adaptor ange (2)
through the bulkhead hole so that it does not interfere with the sealing of the bulkhead
hole. Secure the pump/EagleDrive assembly using four screws, nuts, and washers as
needed. Tighten screws evenly and in an alternating pattern.
O-Ring 2-040 described below is necessary to ensure bulkhead is
sealed.
CAUTION
Ø
68.3
±
1[2.70
±
.04]
70 2.76
Ø
5[.20]
1
3
2
