Filta-Max xpress Operator’s Guide
Appendix A: Consumables

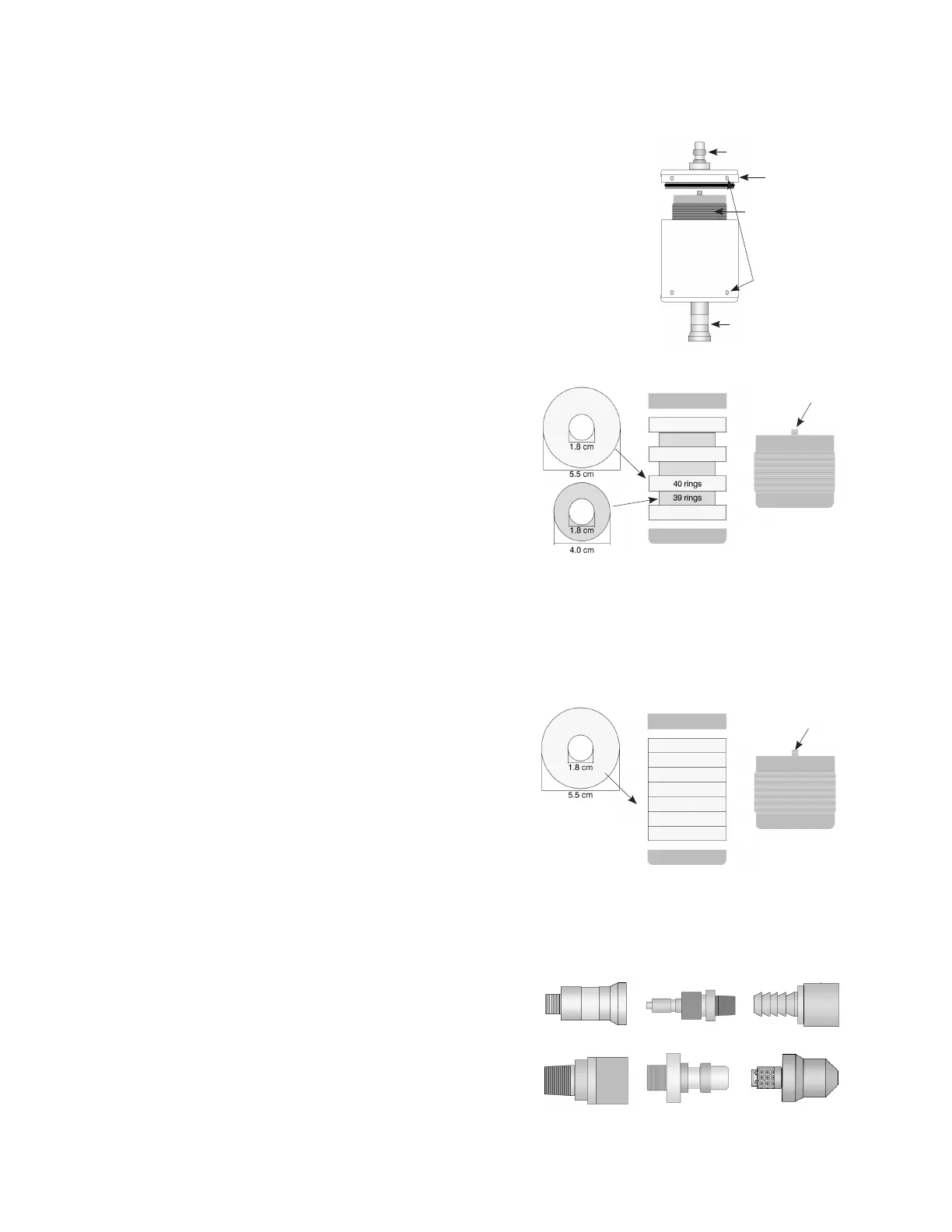

Filta-Max xpress Filter Housing
• Materials of construction: polyethylene
terephthalate (PET) and O-rings (nitrile)
• Connections: Swagelok* quick-connect (QC
body) and quick-flow (QF stem) fittings for
connection to sampling and elution equipment
• Dimensions: 18.0 cm (7.2 in.) length, 8.5 cm (3.4
in.) diameter
Filta-Max xpress Filter Module (red caps)
• Materials of construction:
open-cell reticulated polyurethane rings in two
sizes that are interlaced and compressed to
form a filter.
Ring sizes:
– 5.5 cm (OD) x 1.8 cm (ID) x 1.0 cm (D)
– 4.0 cm (OD) x 1.8 cm (ID) x 1.0 cm (D)
• Pore size: 1.0 µm nominal
• Dimensions:
– 5.0 cm (2.0 in.) length
– 5.5 cm (2.2 in.) diameter
• Storage: 16°C–24°C (60°F–74°F)
Filta-Max Filter Module (black caps)
• Materials of construction: open-cell reticulated
polyurethane rings compressed to form a filter.
Ring size:
– 5.5 cm (OD) x 1.8 cm (ID) x 1.0 cm (D)
• Pore size: 1.0 µm nominal
• Dimensions:
– 5.0 cm (2.0 in.) length
– 5.5 cm (2.2 in.) diameter
• Storage: 16°C–24°C (60°F–74°F)
Filta-Max xpress sampling and elution fittings
• Materials of construction:
stainless steel (grade 316), O-rings (Viton*)
• Connection types:
Swagelok QC body and QC stem, QF body and
QF stem, hose-tail, and outlet diverter fitting
Filter Housing
base
Filter Module
Filter Housing
lid
QF stem
QC body
Tag holes
Filta-Max Filter Module construction
Bolt end
Filter Module
Black end cap
Black end cap
Filta-Max xpress Filter Module construction
Filter Module
Bolt end
QC stemQC body
QF body QF stem
Hose-tail
Outlet diverter
