Idexx Filta-Max xpress - Pressure Elution Station System Components

8
Filta-Max xpress Operator’s Guide
Pressure Elution Station system
• Filta-Max xpress Pressure Elution Station
• Buffer Reservoir Kit (one 10 L bottle and one 4 L bottle with lids)
• Outlet diverter (5-pack kit)
• Hose kit
• Accessory kit:
– Power pack
– Filta-Max xpress Operator’s Guide
– Pressure chamber O-ring
– Tool kit (2 hex wrenches, quick-connect fitting, screwdriver)

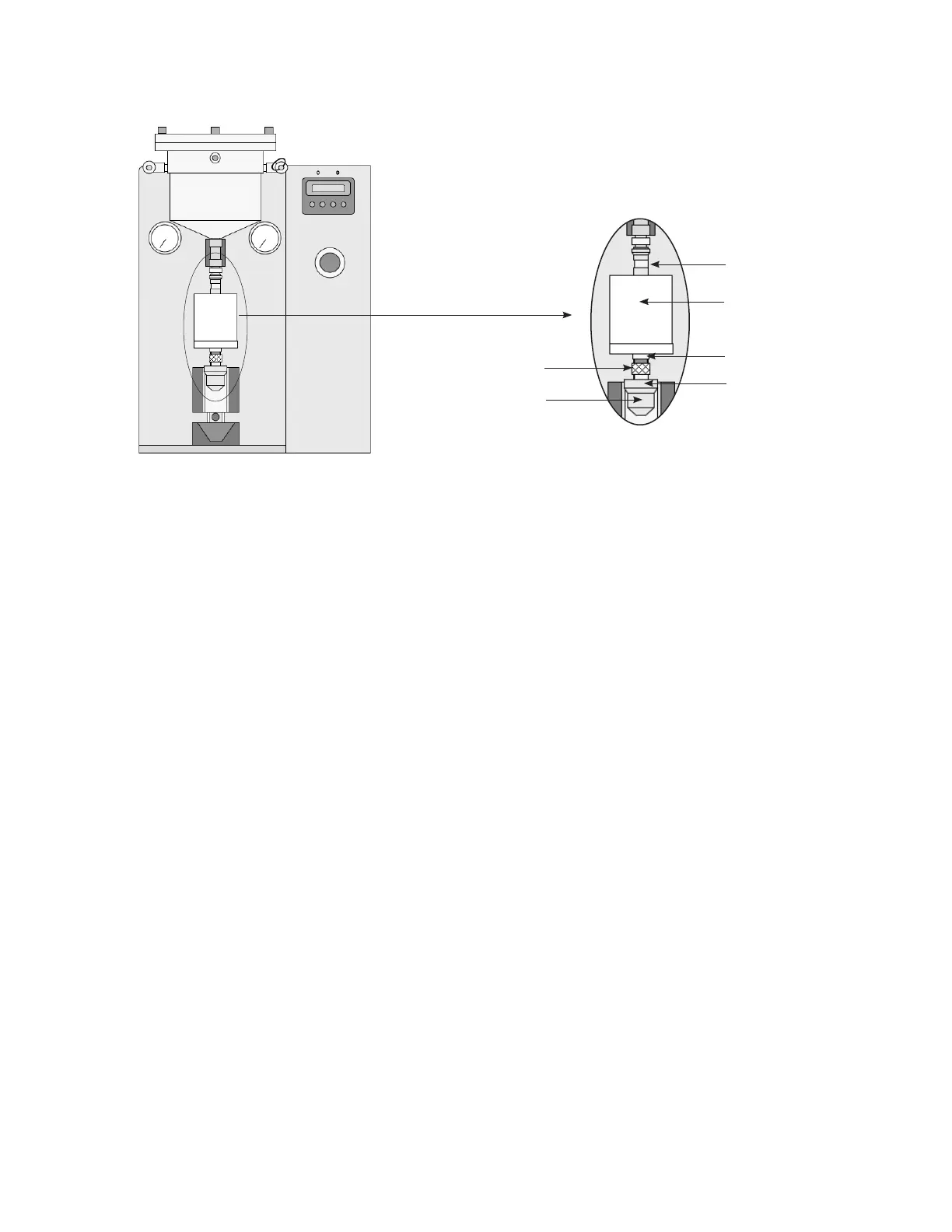

Figure 2. Pressure Elution Station with a
Filter Housing and diverter assembly attached
Figure 2a. Filta-Max xpress Filter Housing and
diverter assembly
Swagelok quick-
connect (QC) body
Filta-Max xpress
Filter Housing
Swagelok
quick-flow (QF) body
Swagelok quick-flow
(QF) stem
Outlet diverter
assembly
Sensor ring
