IDTECK iPass IP100R - Identifying Supplied Parts; Front Panel Description

Quick Installation Guide
Jun. 2011 Copyright © IDTECK Co., Ltd.

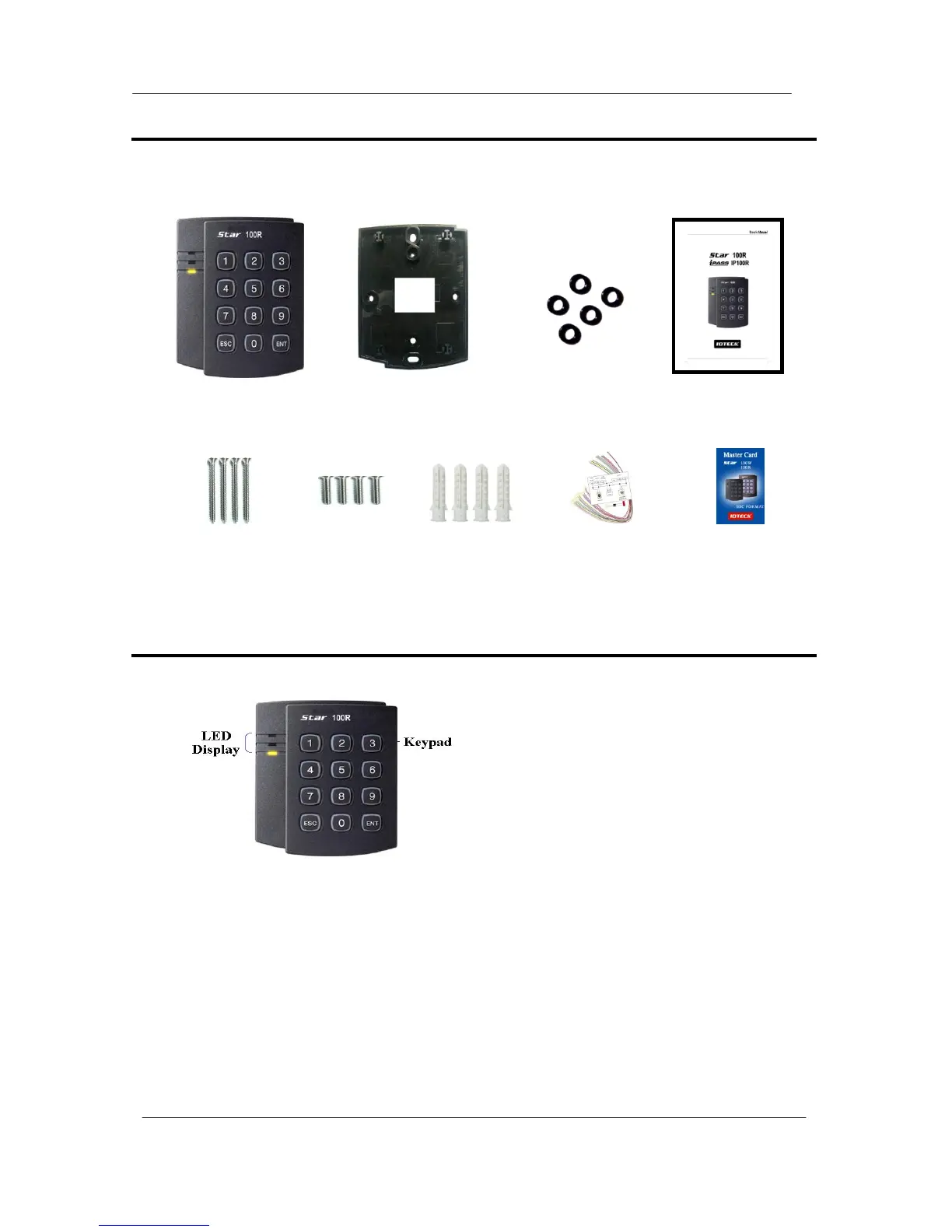

2. IDENTIFYING SUPPLIED PARTS
Please unpack and check the contents of the box.
Main Unit Wall Mount O-Ring User’s Manual
(1ea) (1ea) (5ea) (1copy)
3.5*40 Screw 3.5*12 Screw Anchor Bolt Cable & Diode Master Card
(4ea) (4ea) (4ea) Cable(4 ea), Diode(2 ea) (1ea)
3.FRONT PANEL DESCRIPTION
Figure: Front Panel
