6. SYSTEM WIRING FOR TYPICAL APPLICATION

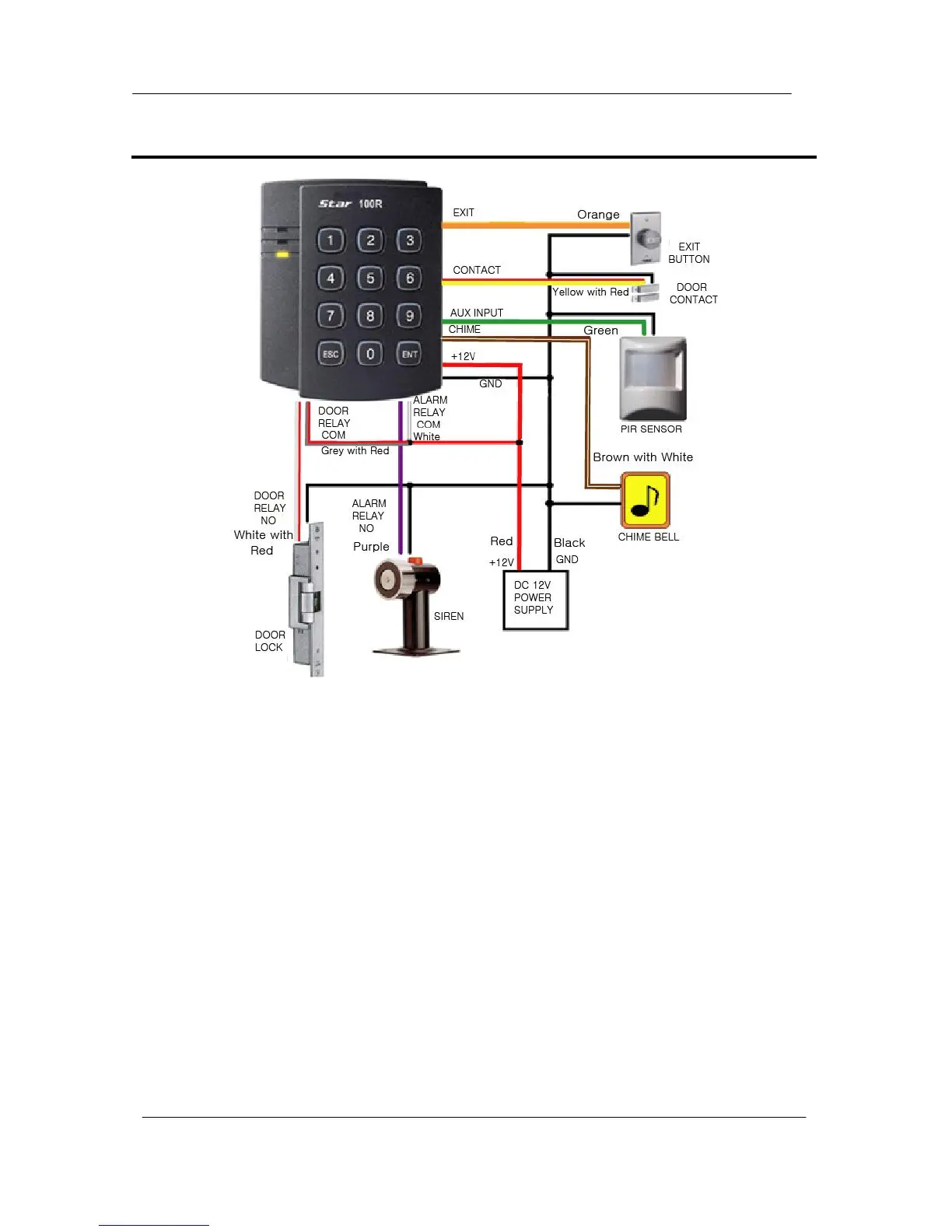

Figure: System Wiring Example
6.1. Power Connection
- Connect (+) wire of DC +12V power to Red wire.
- Connect Power GND (-) wire of DC +12V to Black wire.
6.2. Door Lock Connection
6.2.1 Connection of POWER FAIL SAFE: Door Lock
- Connect Door RELAY (COM), Grey with Red stripe wire to DC +12V (be sure that the existing
power supply has enough capacity to support this accessory or upgrade to a sufficient one.)
- Connect (+) wire of Door Lock to Door RELAY (NC), Blue with White stripe wire.
- Connect (-) wire of Door Lock to Power GND (-) wire.
6.2.2 Connection of POWER FAIL SECURE: Door Lock
- Connect Door RELAY (COM), Grey with Red stripe wire to DC +12V (be sure that the existing
