IDW G-10-F33EB-HC User Manual

Instruction Manual

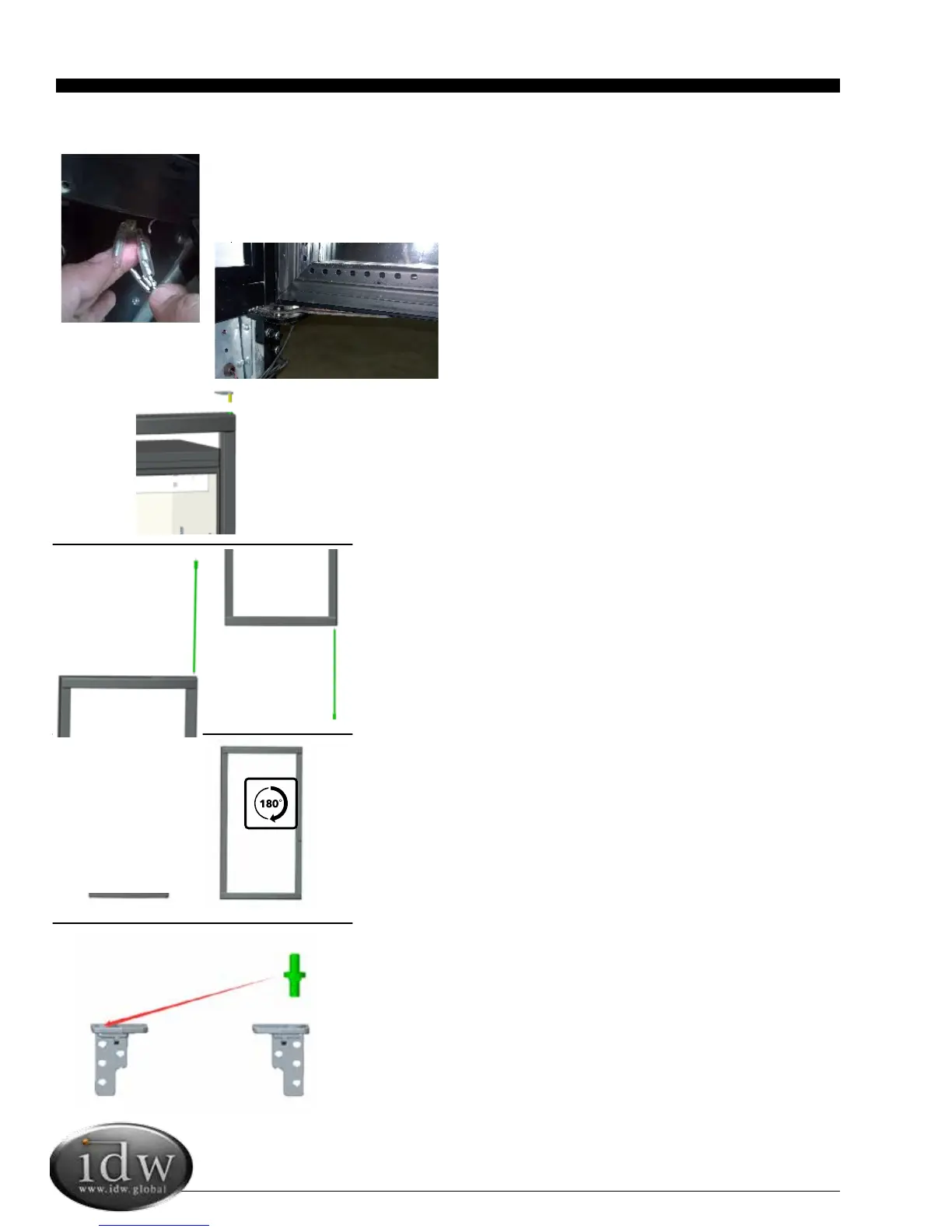

1 Remove the front grill, disconnect the terminals and then hide
theterminalsinthedoor’sreservedhole.
2 Remove the right upper hinge and bottom door limit,then
remove the door.
3 Take out the torsion rod from the upper right of the
door.
4Fishoutthewiringfromdoor’sreservedhole,the
wiringstretchesoutfromtheupperrightofdoor.
5 Insert the torsion rod into corresponding holes on
bottom right of the door.
6Rotatethedoorclockwise180°,sothewiringis
stretching out from the bottom left of the door.
7Removethehingeaxisfromtherightbottomhinge,
inert it into the left bottom hinge.
DOOR REVERSAL (For G-10f Coolers Only)
11
reversibledoorexchange
7.TheterminalsofdoorLEDlightswiringistakenoutfrom
door'sreservedhole thengetthroughhingeaxie connect
 
6.drawoutthehingeaxisfromrightbottomhinge,insert
itintoleftbottomhinge.
3.disassembletherightupperhinge,thenremovethe
door.
1.disassemblethethehingelatchoflefthanddoor.
2.disassemblethefrontgrill,disconnecttheterminals,
thenhidetheterminalsintodoor'sreservedhole.
4.drawoutthestructureofselfclosingdoor,then
assemblethestructureintodoorotherside.
5.clockwiserotatethedoor180°.
No. change
Correction:
38 Electric Box Cover
47 Upper Compressor Baseboard
Delete clause 1 in the left and adjust the
rest clause Seiral No and content as below:
1.Remove the front grill, disconnect the
terminals and then hide the terminals in
the door's reserved hole.
2.Remove upper hinge and bottom door
limit,then remove the door.
remark: please add the above picture under
the No1 picture.
5
G10F/12F manual modification
1
2
Cancel the 2 holes for LED light switches
with labelling because the (2) LED light
switched are moved to compressor room back
3.Take out the torsion rod from the upper
of the door right
4.Fish out the wiring from door frame
cavity, the wiring stretches out from the
upper of door right.
5.Insert the torsion rod
into corresponding
holes on bottom right of the door.
6.Rotate the door clockwise 180°(Now the
wiring is stretching out from the bottom
