4. Mounting
Thekeypadisdesignedtobeflushmountedusingastandardsingle-
gang electrical box. In addition, itcanbeflushmounteddirectlyto
the wall surface by cutting a hole in the wall. To properly size the
mounting and wire access hole, use the installation template on the
last page in this manual and on the unit’s container.
Mounting height can vary depending on requirements. An a ppro-
priate range is typically between 48 and 52 inches on center off the
floor.
For outdoor installations, use a weatherproof backbox and seal the
wire entry locations with silicone and provide a drain hole. In addi-
tion, use the anti-oxidant grease pack for the wire harness connec-
tors.

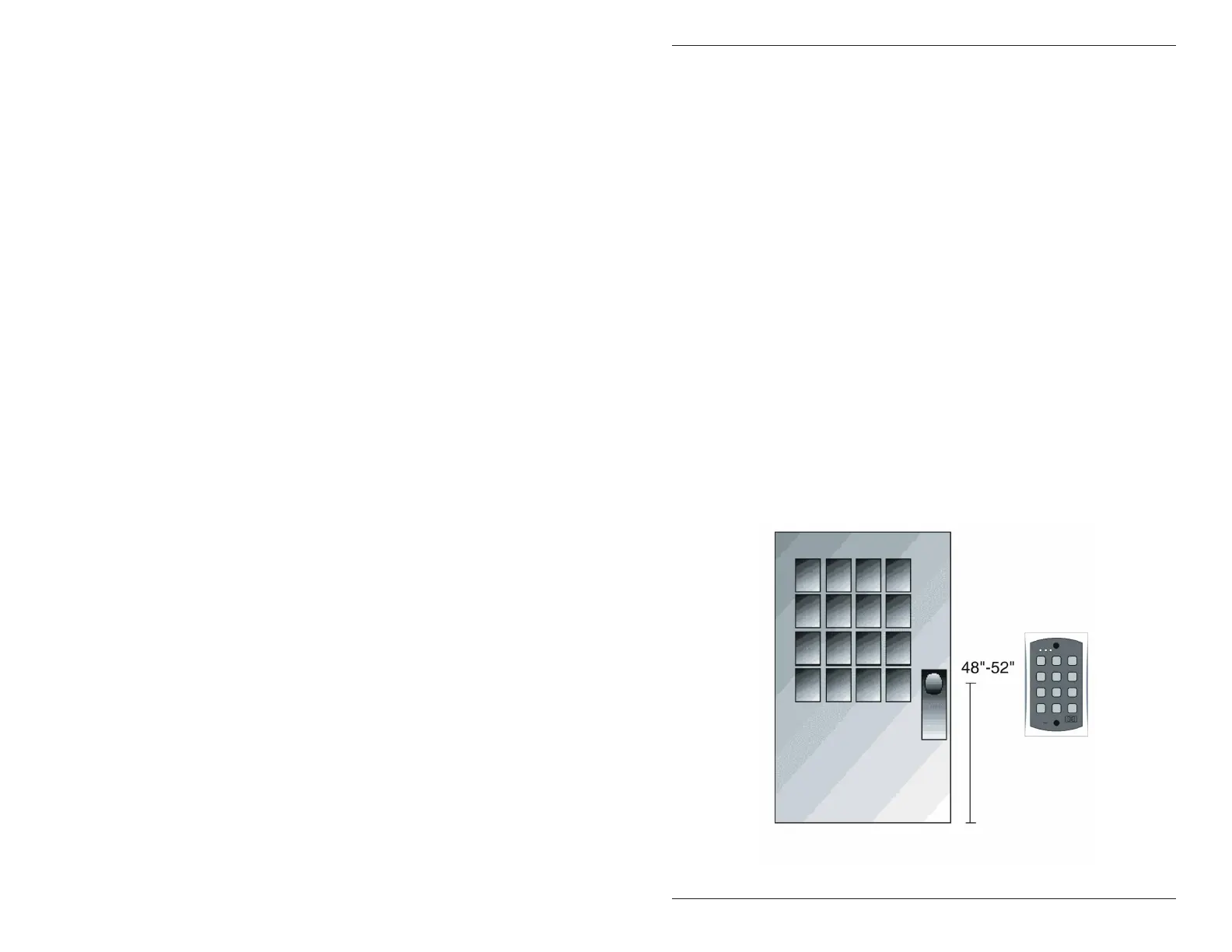

Figure 3 212eM/242eM Mounting Height
IEI 212eM/242eM Standalone Installation/Programming Manual
Document # 6174000, Rev. 1.1 7
